RECEIVE FRAMES:

By pressing the "Receive Frames" button from the main window for SW67B17 (Fig. 2) the "Receive J1939 Frames" window appears (Fig.
10). The J1939 frames inserted in this table contains the data to write on OPC UA side. These frames are accepted by the converter.

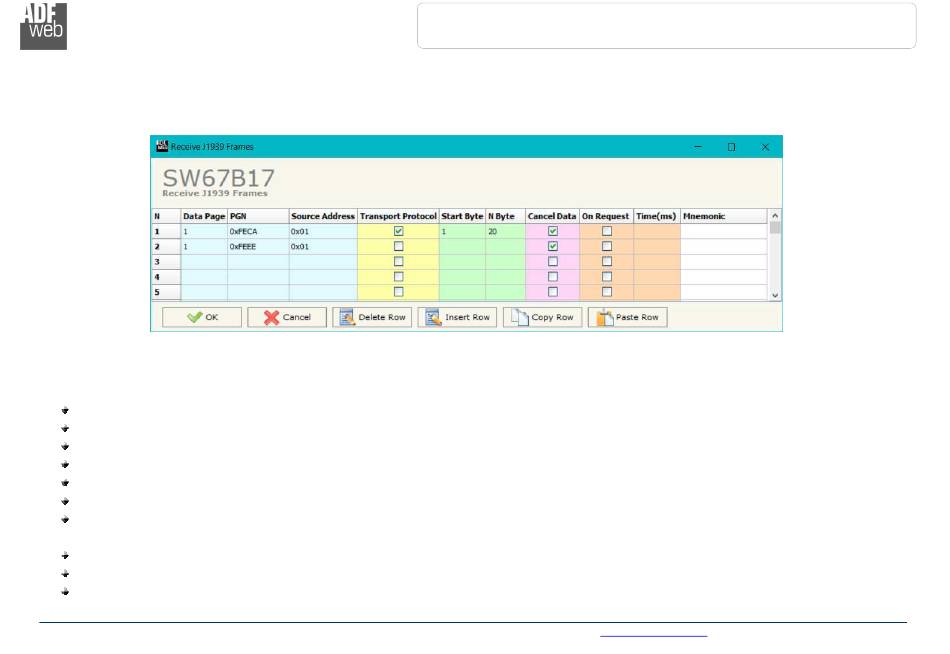

Figure 10: "Receive J1939 Frames" window
The data of the columns have the following meanings:
In the field "Data Page" the Data Page is defined, the value can be 0 or 1 (usually it is 0);
In the field "PGN" the PGN of the data of J1939 message is defined (it is an identifier);
In the field "Source Address" the address of the device that sends the frame is defined;
If the field "Transport
In the field "Start Byte" the start byte of the J1939 message to map into the internal memory is defined;
In the field "N° Byte" the number of bytes to save is defined;
If the field "Cancel Data" is checked, the data in the frame will be erased after the expiration of the
"Set Communication" section;
If the field "On Request" is checked, the converter will send the request for the selected PGN;
In the field "Time (ms)" the delay between the J1939 requests is defined;
In the field "Mnemonic" a brief description is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Protocol" is checked, the frame use transport protocol functions (used to send more than 8 bytes);
User Manual OPC UA Client / J1939
Document code: MN67B17_ENG Revision 1.000
INFO: www.adfweb.com
Page 23 of 30
"TimeOut Data" defined in
