Swegon KITE Ceiling a Series Installation, Commissioning Maintenance page 2

KITE Ceiling
Installation
Locate the "eyelid" and carefully press in the
legs towards the air diffuser

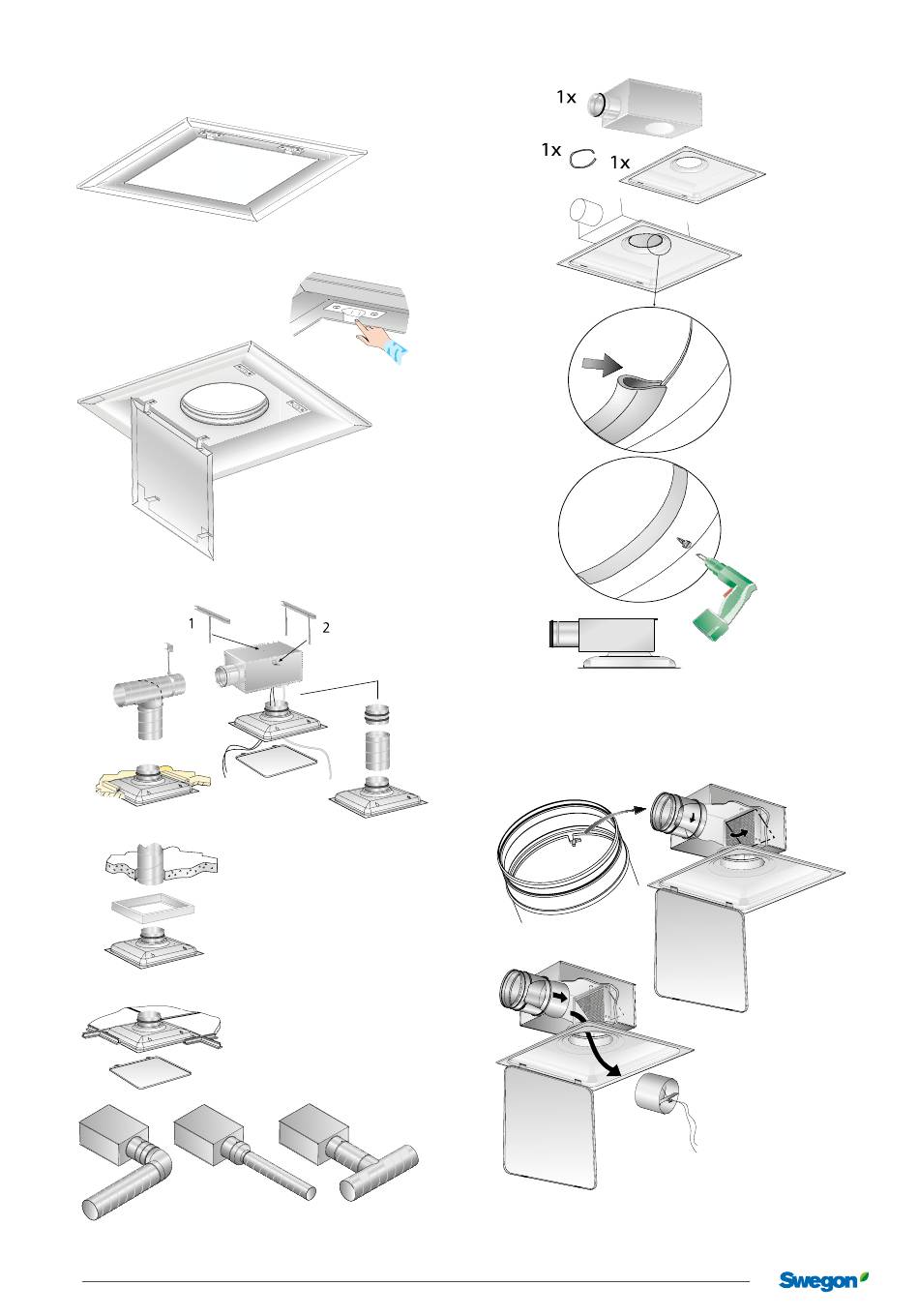

Figure 1. Dismantling of the front.
0xD / ±5%
Figure 2. Installation options.
2
Swegon reserves the right to alter specifications.
The face plate hangs on
the corresponding side by
the hinge
0xD / ±5% 2xD / ±10%
Figure 3. Installation of air diffusers and commissioning box with
low installation height.
Figure 4. Damper removal.
