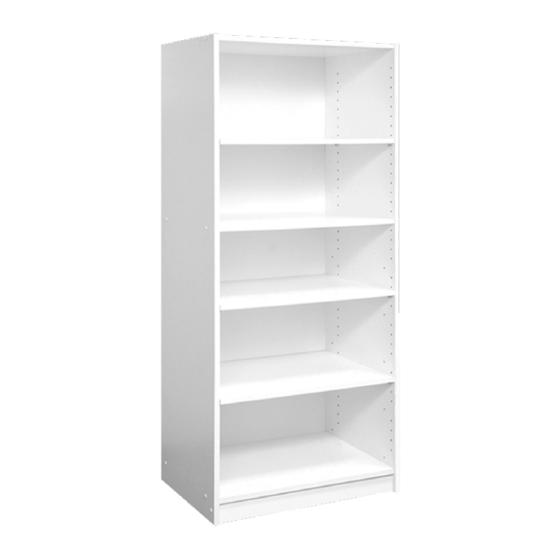

- Page 1 Assembly InstructIons mSm-716 CLASSIC rAnge ADJuStAbLe SHeLveS PACKS 1650H x 500W x 450D WHITE #0027277 LIgHT Oak #2683502 Dark COCO #2683540...
- Page 2 ASSEMBLY INSTRUCTION FOR MAXI AND MSM 716 PARTS IDENTIFICATION LIST 3 x ADJUSTABLE SHELF 2 x GABLES 1 x BOTTOM KICK C , D & E FOLD LINE 1 x BACKING BOARD 3 x FIXED SHELF MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS SHELF PINS...
- Page 3 FIRST STEP:- UNPACKED YOUR CARTON PART 1 OF 2, LAY A,B,C,E ,F ON FLOOR RETRIEVE THE LEFT- HAND GABLE (A) FACING DOWN ON THE EDGED FRONT. USING THE 30mm 8 GAUGE CONFIRMAT SCREWS PROVIDED YOU CAN NOW SCREW YOUR KICK FIRST, BOTTOM SHELF NEXT AND THEN TOP SHELF ATTACHED ONTO THE LEFT-HAND GABLE.
- Page 4 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
