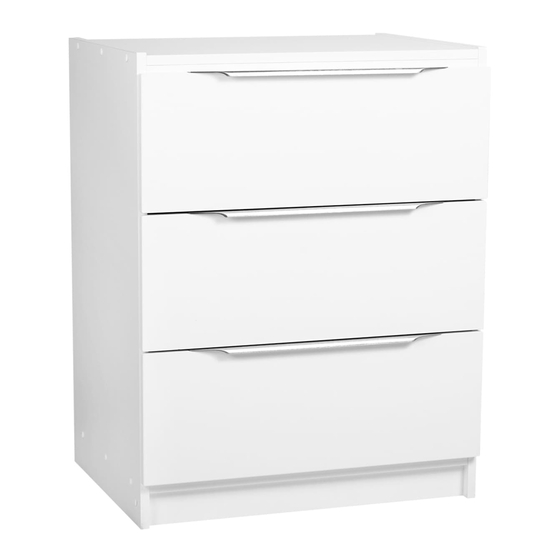

- Page 1 Assembly InstructIons mAXI-400J3 ComPACt rAnge Jumbo DrAWerS PACKS 780H x 608W x 450D WHITE #0027259 LIgHT Oak #2683492 Dark COCO #2683530...
- Page 2 ASSEMBLY INSTRUCTION FOR MAXI & MSM 400J3 1 x BOTTOM KICK C & D 2 x FIXED SHELVES Folded Line FOLDED LINE 1 x FOLDED BACK L & R GABLES 1 x Left-hand Gable 1 x Right-hand Gable HARDWARE LIST MODEL DESCRIPTION MODEL...
- Page 3 ASSEMBLY INSTRUCTION FOR MAXI & MSM 400J3 FIRST STEP:- UNPACKED YOUR CARTON PART 1 OF 2, LAY A,B,D,C,E ON FLOOR & RETRIEVE THE (F) INFILL & SCREWS FROM PART 2, ATTACH THE INFILL TO THE UNDER-SIDE OF THE TOP FIXED SHELF AS DEMONSTRATED. STAND LEFT-HAND GABLE FACING DOWN ON THE EDGED FRONT, USING THE 30mm 8 GAUGE CONFIRMAT SCREWS PROVIDED YOU CAN NOW...
- Page 4 3 x DRAWER ASSEMBLY INSTRUCTION MODEL DESCRIPTION MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE SCREW 5/8 X 6 WOOD SCREWS 18 EURO SCREWS HANDLE INFILL RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE- DRILLED HOLES FACING UP.
- Page 5 DRAWER USING THE WOOD SCREWS PROVIDED (No:4) SCREW TWO INTO EACH RUNNER . REPEAT FOR THE OTHER SIDE PICTURE OF YOUR FINISHED DRAWER Multistore Industries (Aust) Pty Ltd 9 Nevilles Street, Underwood, QLD 4119 Tel—(07) 3208 6799 Fax- (07) 3209 6332 www.multistore.com.au...
- Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT Executive Series DIAGRAM 1 ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
