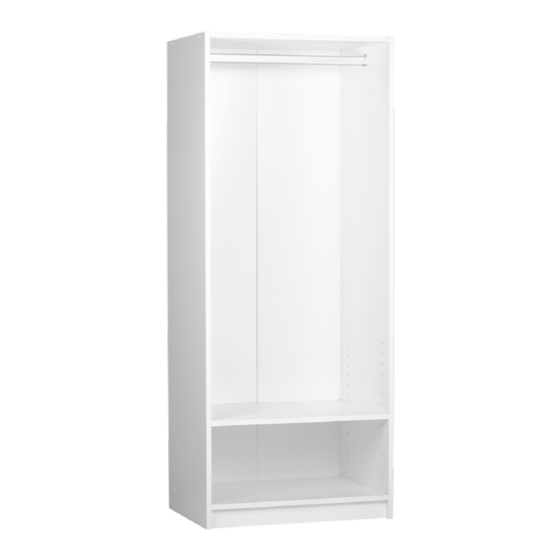

- Page 1 Assembly InstructIons mAXI uLtrA-HS CLASSIC RANGE HAngIng rAIL FIXeD SHeLF PACK 1495H x 608W x 430D WHITE #2669940 LIgHT Oak #2683486 Dark COCO #2683524...
- Page 2 ASSEMBLY INSTRUCTION FOR MAXI ULTRA HS TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16mm pan head screw then 25mm pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided).
- Page 3 INSERT YOUR 4 PINS (7) INTO THE HOLE NO: (8) PROVIDED. INSERT THE CAMS INTO THE HOLES PROVIDED ON THE BOTTOM OF THE SHELF. USING SCREW DRIVER TWIST CAM INTO LOCK POSITION. FOLD OUT THE BACK, PROCEED TO NAIL IT NEXT STEP.
- Page 4 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
