Barco SLite Series Installation Manual

Fixed display
Hide thumbs Also See for SLite Series:
Table of Contents

Advertisement

Quick Links

Download this manual
M
EDIA
F
SL
D
IXED
ITE
ISPLAY
I
M
NSTALLATION
ANUAL
17102003
R5976575/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLite Series and is the answer not in the manual?

Questions and answers

Related Manuals for Barco SLite Series

Summary of Contents for Barco SLite Series

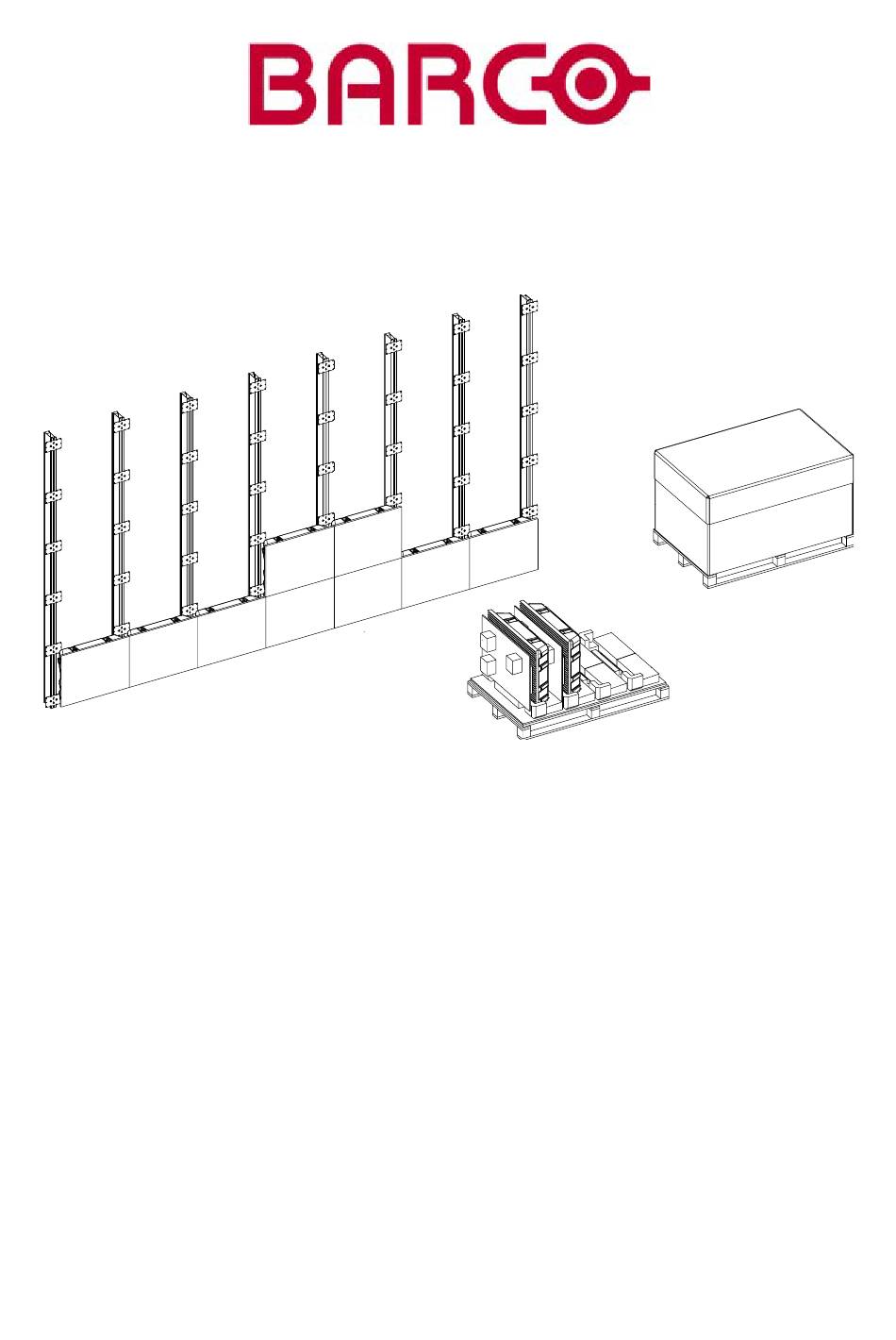

  • Page 1 EDIA IXED ISPLAY NSTALLATION ANUAL 17102003 R5976575/02...
  • Page 2 Barco nv Media Noordlaan 5, 8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 E-mail: media@barco.com Visit us at the web: www.barco.com Printed in Belgium...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of compliant, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Safety ........................3 1.1 Safety Guidelines .
  • Page 6 Table of contents R5976575 FIXED SLITE DISPLAY 17102003...

  • Page 7: Safety

    Structural & Mounting Components should be kept dry, clean, lubricated (only if recommended), coated properly, and otherwise maintained in a manner consistent with part design. BARCO products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the load handling capability of the part.

  • Page 8: Important Safety Instructions

    1. Safety 1.2 Important Safety Instructions Instructions: • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • IMPORTANT, plug holder clamps must be locked firmly on all display tile units and power boxes to prevent the possible ingress of fluids or solid particles.
  • Page 9 1. Safety • High leakage current: The combination of multiple tiles in an installation results in increased levels of leakage current. In order to avoid risk of electric shock due to high leakage current, proper grounding of the installation is required. •...
  • Page 10 1. Safety R5976575 FIXED SLITE DISPLAY 17102003...

  • Page 11: System Overview

    Support structures The design of the support structure (and housing) for the SLite series must comply with several demands regarding strength, wind load, cooling, humidity, accessibility, etc. and also comply with the local regulations regarding such installations. The support struc- ture must be accessible from the rear and be provided with attachment points to attach the SLite tiles.
  • Page 12 Support structures must be assessed on an individual basis. Never construct a wall if there is uncertainty regarding the stability of an installation or the load holding capabilities. If there are doubts on a system’s viability, consult Barco for advise on professional rigging organizations.

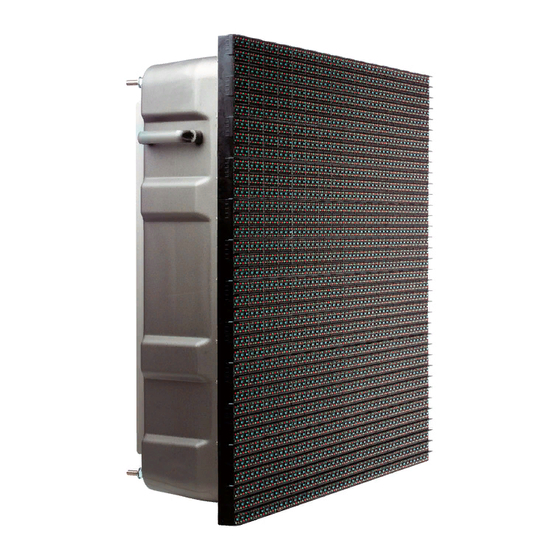

  • Page 13: Slite Display Tiles

    A unique video processing feature enables the creation of a visual resolution quasi double the physical resolution defined by the cluster of LED’s spread on the surface of the display. Barco’s Dual Pixel Technology confers to the SLite range a picture smoothness and an enhanced resolution that delivers the ultimate in picture quality.
  • Page 14 2. System overview Name Value Ruggedness IP65 (only if all connection ports are used correctly with Barco’s outdoor cables or dummy plugs for LED-walls) Operating temperature -20 <> 40 ºC Storage temperature -20 <> 60 ºC Operating humidity 10 – 99 % Storage humidity 10 –...

  • Page 15: Power Boxes

    2. System overview SLite tile dimensions 253,7 189,6 Image 2-4 Dimensions given in millimeters. 2.4 Power Boxes Overview • Standard Mono Phase Power Box • Custom Power Box General Depending on the size of the SLite display, the power system has to be adapted. Therefor several sizes of power boxes are available. For small and medium size SLite display systems the Standard Mono Phase Power Box is used.
  • Page 16 2. System overview Block diagram DUMMY POWER PLUG POWER LINKING CABLE Standard Mono Phase Power Box SLite Tile OUTPUT CABLE Image 2-5 Standard Mono Phase Power Box in a SLite configuration. Standard Mono Phase Power Box. Output cable. Power linking cable. SLite tile.

  • Page 17: Custom Power Box

    2. System overview Dimensions Image 2-7 Dimensions given in millimeters. 2.4.2 Custom Power Box Introduction There is a range of adapted custom power boxes with a variety of special outputs (multi pole connector), ranging from two up to ten. These special outputs are not suitable for direct connection with the tiles, but one output can be split up into six outputs by using a Spider Connector.
  • Page 18 2. System overview Block diagram Dummy power plug Power linking cable Custom power box Spider connector SLite Tile Multi power cable Image 2-8 Custom Power Box in a SLite configuration Custom Power Box. Multi power cable. Spider connector. SLite tile. Dummy power plug.

  • Page 19: Cables For Slite Displays

    2. System overview Article No. Description Max. SLite tiles R9851257 Custom Power Box 3–phase 380V — 9 outputs R9851258 Custom Power Box 3–phase 380V — 10 outputs 2.5 Cables for SLite Displays 2.5.1 Power cables General Depending on the size and configuration of the SLite display several sizes and types of power cables are needed. Order info Article No.
  • Page 20 2. System overview Article No. Description Image R9851661 Waterproof Spider connector with 6 power outputs (C19) with same image 2-14 and image 2-15 lengths. Spider support bracket included. Used to distribute power from a multi power cable to the SLite tiles. Maximum 3 SLite tiles per Spider output cable.

  • Page 21: Data Cables

    2. System overview 2.5.2 Data cables General Depending on the size and configuration of the SLite display several sizes and types of data cables are needed. Order info Article No. Description Image R9850210 Waterproof MDR data linking cable of 1,5 meter. image 2-18 Used to link data from SLite tile to SLite tile.

  • Page 22: Digitizer

    The Control Software is designed as a graphic user interface (GUI) and can be used to control and configure the Digitizer as well as the Barco LED Wall via a PC (e.g. XLite Toolset). Refer to the Manual of the Control Software for more information about the Control Software.

  • Page 23: Physical Installation

    Calibration tools for the SLite mounting plates. BARCO provides mounting plates for the SLite tiles which has to be attached to the support structure. To align the mounting plates correctly, the use of calibration tools is recommended. BARCO provides two different calibration tools. One to align the mounting plates in a vertical direction and one to align in a horizontal direction.

  • Page 24: Mounting The Slite Tile

    3. Physical installation Image 3-2 Horizontal and vertical alignment of SLite mounting plates. 3.2 Mounting the SLite tile What has to be done ? The SLite tiles have to be mounted into the assembled and installed support structure. Image 3-3 The following procedure must be performed by minimum three authorized and qualified technical persons, which are thoroughly familiar with the product and all of the proper safety checks of this product.
  • Page 25 3. Physical installation SLite tile mount sequence Build up the SLite Display row by row from bottom to top. Always start in the middle of the row and complete the row by placing the SLite tiles beside one another from the middle of the row to the sides. Necessary tools •...
  • Page 26 3. Physical installation Image 3-5 Image 3-6 R5976575 FIXED SLITE DISPLAY 17102003...
  • Page 27 3. Physical installation Example of SLite tile mounting. Image 3-8 Image 3-7 Place the SLite tiles beside one another from the middle of the row to the sides. First tile is placed in the middle of the bottom row with the stud rods in the middle of the corresponding slot.

  • Page 28: Cabling Of The Slite Display

    Data input port. Data output port. The SLite input/output ports can only be used in conjunction with Barco’s outdoor cables for LED-walls. Do not use any other cables then those specified. Dummy plugs must be placed on unused connection ports of the connection module and all plug holder clamps must be locked firmly.

  • Page 29: Power Cabling

    3. Physical installation 3.3.2 Power cabling 3.3.2.1 Connections with a Mono Phase Power Box Necessary parts • Mono Phase Power Box for outdoor use. • Power Linking Cable. • Sealing rings. • Cable ties. • Dummy Power Plugs. Power Connections 1.
  • Page 30 Dummy Power Plug. A power branch, consisting in a column of maximum three tiles, may be interrupted to provide a Barco outdoor peripheral from power. Such peripherals are foreseen, just like the SLite tiles, with a ’POWER IN’ and POWER OUT’...

  • Page 31: Connections With A Custom Power Box

    3. Physical installation 3.3.2.2 Connections with a Custom Power Box Necessary parts • Custom Power Box. • Multi power cables. • Outdoor Spider connector with Spider support bracket. • Power linking cables. • Cable ties. • Dummy Power Plugs. Power connections 1.

  • Page 32: Data Cabling

    3. Physical installation Dummy power plug Power linking cable Custom power box Spider connector SLite Tile Multi power cable Image 3-19 Custom power box. Multi power cable. Spider connector. SLite tile. Dummy power plug. Power linking cable. Image 3-21 Sealing rings. Red sealing ring for ’DATA IN’...
  • Page 33 3. Physical installation Necessary parts • Data Linking Cables. • Dummy Data Plug. Data connections 1. Connect the data cable coming from the digitizer with the ’DATA IN’ socket of the first tile. The first tile must be one of the tiles in the corner of the SLite display (see example image 3-25).
  • Page 34 3. Physical installation Example of data connections Last tile will be in a corner SLite Display Rear View Data cables are daisy chained to all tiles First tile may be in any corner Client WALL DIGITIZER Network Image 3-25 Client. Network.

  • Page 35: Servicing

    Ensure that each tile is secured with a safety cable to the LED-wall structure. • Do not modify and/or replicate any component. BARCO uses specific materials and manufacturing processes in order to achieve part strength. No other parts then BARCO parts are allowed.
  • Page 36 4. Servicing 5. The person standing at the rear of the LED-wall safely disconnects the power and data cables to the tile, or if image displaying may not be interrupted, remove the complete connection module by releasing the four bolts of the connection module (hot swap). (image 4-5, image 4-6) Tip: When you perform a hot swap it is recommended to place a spare connection module on the SLite tile to prevent dirt...
  • Page 37 4. Servicing Image 4-9 Image 4-10 R5976575 FIXED SLITE DISPLAY 17102003...
  • Page 38 4. Servicing R5976575 FIXED SLITE DISPLAY 17102003...

  • Page 39: Maintenance

    5. Maintenance 5. MAINTENANCE 5.1 Cleaning SLite tiles Why clean SLite tiles ? Due to outdoor use the SLite tiles are exposed to all kinds of weather conditions. Sand, dust, smog and other dirt adhere on the SLite tiles and because of that the performance of the SLite tiles is reduced. That’s why cleaning the SLite tiles is recommended at regular intervals.
  • Page 40 5. Maintenance R5976575 FIXED SLITE DISPLAY 17102003...

  • Page 41: Index

    Index INDEX Mono Phase Power Box Power Box 11, 13 Cables 15, 17 Custom Data Mono Phase Power Power Boxes Cabling 24–25, 28 Power cables Data Ports Power Cleaning SLite tiles Remove SLite tile Installation 19–20 SLite tile Safety 3–4 Support Structure Guidelines Introduction...
