Barco SP-20 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SP-20
Installation manual
R59770294/02
11/02/2009

Advertisement

Table of Contents
loading

Related Manuals for Barco SP-20

Summary of Contents for Barco SP-20

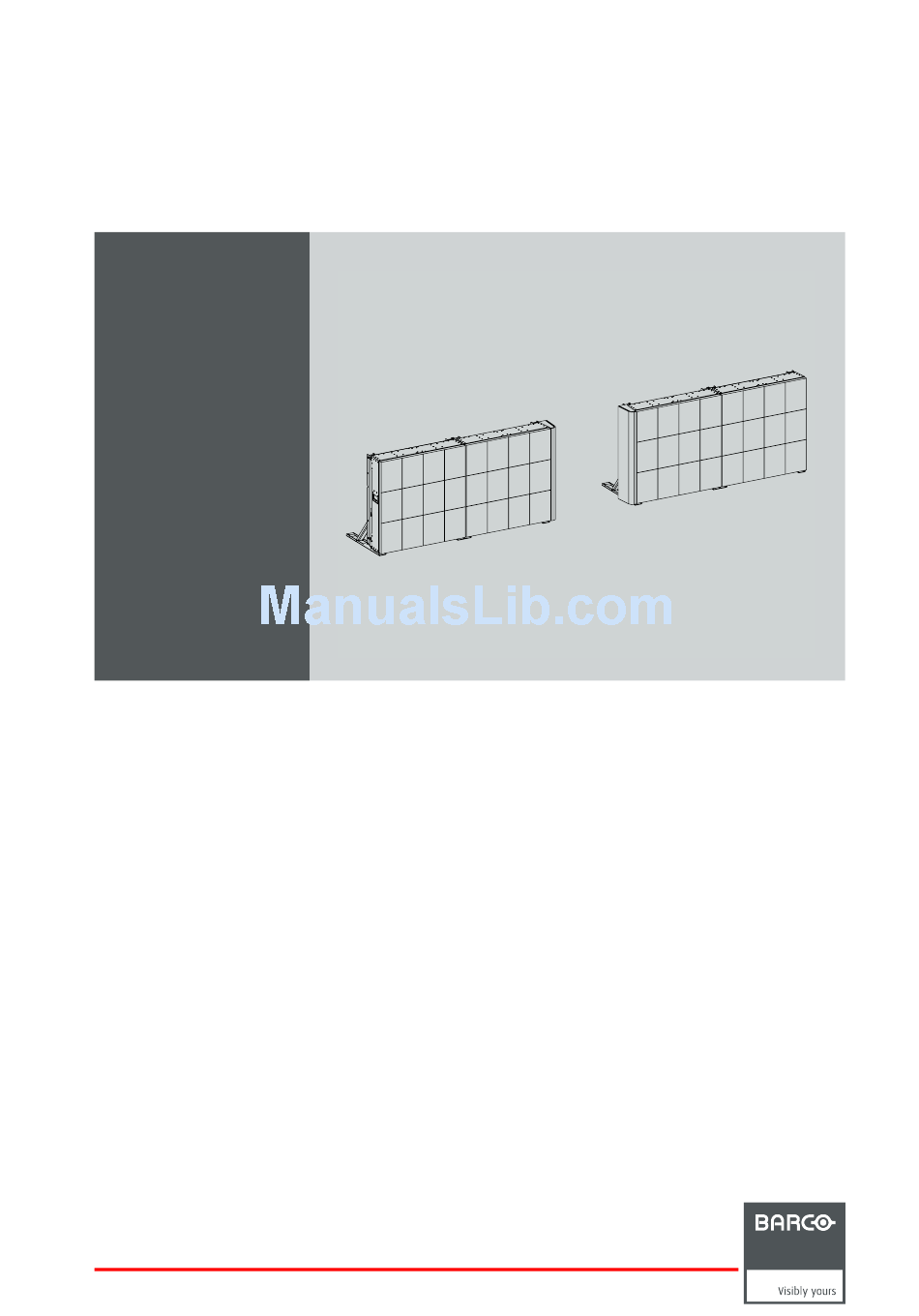

  • Page 1 SP-20 Installation manual R59770294/02 11/02/2009...
  • Page 2 Barco nv Media & Entertainment Division Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.883.86 E-mail: sales.events@barco.com Visit us at the web: www.barco.com Printed in China...
  • Page 3 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    3. Components of the SP-20 display...............
  • Page 6 Table of contents R59770294 SP-20 11/02/2009...

  • Page 7: Safety

    Read this chapter attentively. It contains important information to prevent personal injury while installing your SP-20 display. Fur- thermore, it includes several precautions to prevent damage to the SP-20 tile. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the SP-20 display. After this chapter, addi- tional “warnings”...

  • Page 8: Safety Guidelines

    Structural & mounting components should be kept dry, clean, lubricated (only if recommended), coated properly, and otherwise maintained in a manner consistent with part design. Barco products must be used in a manner consistent with their design and inspected on a routine basis for security, wear, deformation, corrosion and any other circumstances that may affect the load handling capability of the part.

  • Page 9: Important Safety Instructions

    • Use only with systems or peripherals specified by the manufacturer, or sold with the apparatus. Use caution during lifting/moving or transporting to avoid damage by possible tipping. R59770294 SP-20 11/02/2009...

  • Page 10: Important Warnings

    16 A / 250 VAC (15 A / 250 VAC in the USA and Canada). Note that one SP-20 tile requires 200-240 VAC, 50–60 Hz, 6.5 amps at 230 VAC.

  • Page 11: Installation Requirements

    2. INSTALLATION REQUIREMENTS About this chapter This chapter enumerates the mechanical requirements to install the SP-20 display, the electrical requirements to power up the SP-20 display and the system requirements to efficiently run the control software for the SP-20. Overview •...

  • Page 12: Mechanical Requirements

    To install the SP-20 sports perimeter, Barco designed as special foot system which can be installed on every surface. To connect the SP-20 tiles to each other, the foot system is equipped with locks which can be operated by hand or foot so no tools are required to install the SP-20 sports perimeter.

  • Page 13: Electrical Requirements

    Power requirements One SP-20 tile requires 200-240 VAC, 50–60 Hz, 6.5 amps at 230 VAC. Note that one SP-20 tile contains two input/output compart- ments. The power is linked via an external cable from the first compartment to the second. The power output port of the second compartment must be provided with a dummy power plug.

  • Page 14: System Requirements For The Control Software

    SXGA resolution (1280 x 1024) with 32 Mb video memory Serial communication port Ethernet connection • Software Windows XP Professional or Windows Vista 1. It runs on Windows 2000 but when problems are discovered, Barco does not deliver any support R59770294 SP-20 11/02/2009...

  • Page 15: Components Of The Sp-20 Display

    About this chapter This chapter describes the typical components and accessories used in the SP-20 display in more detail. For other commonly used components in Barco LED displays like power boxes, digitizer, fiberlink, compact link and control software, we refer to the manual of these components for more information about use and installation.

  • Page 16: Foot System

    One SP-20 tile is provided with one foot system. Each foot system consist of parts: a left foot and a right foot. When looking from the back side of the SP-20 tile, you can notice that the right foot is equipped with 2 locks. These locks are used to connect two neighboring tiles.
  • Page 17 3. Components of the SP-20 display How does the foot system work? Flap down both feet by pulling the top of the profile indicated with number 1. The counterweight, indicated with number 2, makes sure that both feet fall down and are ready to be positioned in the 80° or 90° position.

  • Page 18: Tile

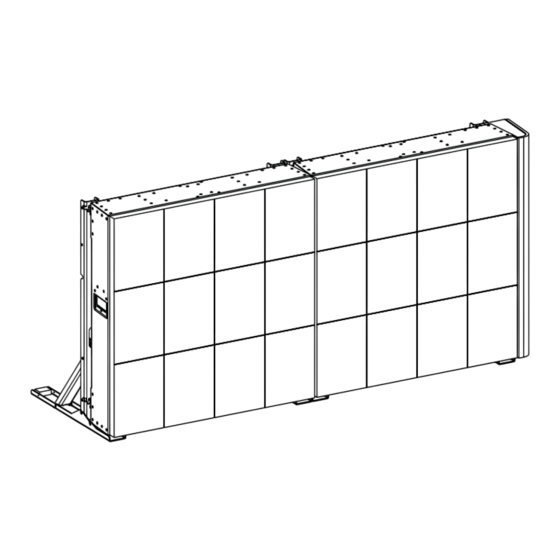

    Introduction SP-20 tile The SP-20 tile has an IP65 rated housing which can easily be lifted by two persons. The foot system enables the adjustment of the tile tilt (10°) without tools. Furthermore, this foot system can be folded up to reduce the volume of the tile for transportation.
  • Page 19 15. Carrying handle. 16. Air outlet. 17. Air outlet. 18. Upper lock of the left door. 19. Mounting pin for the foot system. 20. Replaceable shaders. Part location of the SP-20 tile with foot system Image 3-7 R59770294 SP-20 11/02/2009...
  • Page 20 Data cables used between SP-20 tiles To meet the demands of each SP-20 application, Barco offers several lengths of data cables to link data from tile to tile. Note that the data output port of the last tile in the power chain has to be sealed with a dummy data plug.

  • Page 21: Soft Cover

    General use Barco offers a set of soft covers which can be used to put on the SP-20 tiles who are used to make a gateway inside the SP-20 sports perimeter. These soft covers prevent possible injuries after contact or impact with the SP-20 sports perimeter.

  • Page 22: External Handles

    External handles General use Barco offers a set of handles which make it easier and safer to lift, move and position the SP-20 tiles. Slide in the handles on both sides of the SP-20 tile as illustrated below. Image 3-17...

  • Page 23: Package

    SP-20 package Packing For safe transportation, the SP-20 tiles are stored in a secure way. SP-20 tiles can be stored in two different types of package. A big package contains three SP-20 tiles, a small package contains only one SP-20 tile.

  • Page 24: Power Boxes

    General To ensure safe and reliable operation of the SP-20 display, a suitable system for AC power distribution must be used. Though 3 party solutions may be used, several sizes and types of power distributions are available from Barco. For smaller system the “Mono Phase Power Box”...

  • Page 25: Digitizer

    D320 The D320 is a video processing device, designed to drive as well Barco LED walls as large screen projectors, monitors, plasma screens, ... etc. The D320 is capable of handling all standard output formats like SVGA, XGA, SXGA and UXGA on an analog RGBHV and digital DVI output.
  • Page 26 3. Components of the SP-20 display Image 3-24 Director Toolset version 2.0 or later is required. R59770294 SP-20 11/02/2009...

  • Page 27: Control Software

    3. Components of the SP-20 display Control software Director Toolset Director Toolset is a software tool to set up, configure, manage and control all D320 and DX-700 based systems, with scalable and expandable functionality, for all users on all platforms.

  • Page 28: Fiberlink System

    If the distance between the digitizer and the LED-wall exceeds 5 meters, a fiber optic connection must be used to ensure signal integrity and system reliability. Barco offers two complete system solutions including transmitter, fiber and receiver. The choice of system depends on the length of cable required.

  • Page 29: Proper And Safe Use Of The Foot System

    Use the procedures described in this chapter to reduce the risk of injuries to a minimum. Overview • Folding out the foot system into the 80° stand • Changing from the 80° to the 90° stand • Folding in the foot system R59770294 SP-20 11/02/2009...

  • Page 30: Folding Out The Foot System Into The 80° Stand

    Note: The first groove is indicated with the red circle. Warning: Do not push the tile further forward then necessary. Doing so can damage the shader and can trow you out off balance. Warning: Always firmly hold the SP-20 tile with both hands. R59770294 SP-20 11/02/2009...
  • Page 31 4. Proper and safe use of the foot system Image 4-2 3. Gently bring down the SP-20 tile until both feet are positioned on the ground. Image 4-3 R59770294 SP-20 11/02/2009...

  • Page 32: Changing From The 80° To The 90° Stand

    "External handles", page 18 How to change from the 80° to the 90° stand 1. Lift the SP-20 tile so both feet can fall down. If necessary, use your foot to push the foot system out of the first groove. Image 4-4 2.
  • Page 33 4. Proper and safe use of the foot system Image 4-5 R59770294 SP-20 11/02/2009...

  • Page 34: Folding In The Foot System

    "External handles", page 18 How to fold in the foot system? 1. Lift the SP-20 tile so both feet can fall down. If necessary, use your foot to push the foot system out of the groove. Image 4-6 2. Fold in both foot systems using your foot until your hear a click.
  • Page 35 4. Proper and safe use of the foot system Image 4-7 R59770294 SP-20 11/02/2009...
  • Page 36 4. Proper and safe use of the foot system R59770294 SP-20 11/02/2009...

  • Page 37: Physical Installation

    Setup process The first stage in this process is the preparation of the SP-20 tiles. Note that the SP-20 tiles are stored 3 (three) or 1 (one) in a package. So first remove the SP-20 tiles from their package and roughly put then in place.

  • Page 38: Securing Sp-20 Tiles

    5. Physical installation Securing SP-20 tiles How to secure SP-20 tiles? 1. Align both tiles. 2. Close the top lock using the procedure illustrated below. Note: This procedure has to be carried out by hand. Image 5-1 3. Close the bottom lock using the procedure illustrated below.
  • Page 39 5. Physical installation Image 5-2 R59770294 SP-20 11/02/2009...

  • Page 40: Installing Soft Covers On Gateways

    Only partially loosen the nut until you have enough space to insert he soft cover. Image 5-3 2. Insert the soft cover as illustrated. Note: Not that only for the clearness of the illustration below, the foot system has been completely removed. Image 5-4 3. Fasten the nut (reference A). R59770294 SP-20 11/02/2009...
  • Page 41 5. Physical installation Image 5-5 R59770294 SP-20 11/02/2009...
  • Page 42 5. Physical installation R59770294 SP-20 11/02/2009...

  • Page 43: Cabling

    Outdoor plugs and sockets for SP-20 tiles Barco uses special designed outdoor sockets for power and data connections from tile to tile and to other peripherals. These rugged sockets are watertight (IP65) when used with the appropriate plugs and sealing rings. Each socket is equipped with a plug holder clamp which, when locked, ensures the plug is completely pressed into the socket.

  • Page 44: Power Cabling Of A Sp-20 Tile

    Barco provides several types of power boxes. Depending on the size of the SP-20 display you can choose to use the mono phase power box or the custom made power box. The type of power box does not influence the power cabling of the SP-20 display. See the corresponding installation manual of the concerned power box for installation instructions.

  • Page 45: Data Cabling Of A Sp-20 Tile

    Note: The maximum cable length between the digitizer and the first tile may not exceed 5 meter. 2. Daisy chain the data link cables from the data output of a previous SP-20 tile to the data input of the next one.
  • Page 46 6. Cabling R59770294 SP-20 11/02/2009...

  • Page 47: Maintenance

    7. Maintenance 7. MAINTENANCE Overview • Cleaning SP-20 tiles R59770294 SP-20 11/02/2009...

  • Page 48: Cleaning Sp-20 Tiles

    Why clean SP-20 tiles? Due to outdoor use the SP-20 tile is exposed to all kinds of weather conditions. Sand, dust, smog and other dirt adhere on the SP-20 tile and therefore the visual performance of the SP-20 display is reduced. That’s why cleaning the SP-20 tiles is recommended at regular intervals.

  • Page 49: Order Info

    8. Order info 8. ORDER INFO Overview • Order info R59770294 SP-20 11/02/2009...

  • Page 50: Order Info

    8. Order info Order info Order info for the SP-20 sports perimeter Description Article number SP-20 tile R9004818 External handles R838361 Left soft cover R9870024 Right soft cover R9870025 R59770294 SP-20 11/02/2009...

  • Page 51: Dimensions

    A. Dimensions A. DIMENSIONS Overview • Dimensions of the SP-20 tile R59770294 SP-20 11/02/2009...

  • Page 52: Dimensions Of The Sp-20 Tile

    A. Dimensions A.1 Dimensions of the SP-20 tile Dimensions of the tile Image A-1 Dimensions of the foot system 665.08 737.15 Image A-2 R59770294 SP-20 11/02/2009...

  • Page 53: Specifications Of The Sp-20 Tile

    B. Specifications of the SP-20 tile B. SPECIFICATIONS OF THE SP-20 TILE Overview • Specifications of the SP-20 tile R59770294 SP-20 11/02/2009...

  • Page 54: Specifications Of The Sp-20 Tile

    B. Specifications of the SP-20 tile B.1 Specifications of the SP-20 tile Specifications of the SP-20 tile Calibrated Brightness 7,600 NIT Color Processing 16-bit Contrast ratio 3,000:1 Dimensions Width: 960mm / tile Height: 960mm / tile Depth: 250mm / tile Hor.
  • Page 55 Revision Sheet Barco nv Media & Entertainment Division/Documentation Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70, Fax: +32 56.36.88.24 E-mail: service.mne@barco.com, Web: www.barco.com From: Date: Please correct the following points in this documentation (R59770294/02): page wrong correct R59770294 SP-20 11/02/2009...
