Kramer TBUS-204 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

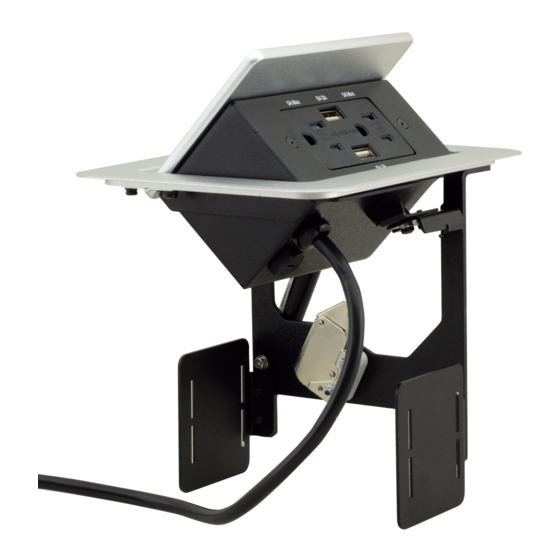

TBUS-204 Pop-up Table Connection Bus
1 Metal cut-out template

Step 2: Get to know your TBUS-204

# Feature
1 Pop-up Lid
2 Connecting Surface
3 Outer Rim
4 Mini Latch
5 Rubber Protectors (x2)
6 Locking Butterfly Nuts (x2)
7 Mounting Screws (x2)
8 Mounting Butterfly Nuts (x2)
9 Mounting Clamps (x2 units)
10 Mounting Clamp Slits (two sets
on each side)
11 5V-2A USB Charging Port
12 5A/125V Power Connector (x2)
When a single power socket is connected, consumption should not exceed 5A.
When both power sockets are connected, the total consumption should not exceed 6A.
13 5V-2A USB Charging Port
TBUS-204 Quick Start
TBUS-204 Quick Start Guide
This guide helps you install and use your TBUS-204 for the first time.
Go to www.kramerav.com/manual/TBUS-204
1 Clamps set
Function
Covers the connecting surface, leaving the table surface neat and tidy.
See following graphic.
Fits over the table surface.
Enables closing and opening the lid by applying slight pressure.
Ensures gentle tightening to the table's underside.
Tighten to lock the mounting screws.
For securing the
Tighten to secure the unit to the table's surface.
Place in the clamp slits after inserting the enclosure into the table – for securing
the unit to the table surface.
Insert the mounting clamps to the slits when installing the TBUS-204.
Use to charge a device.
Connect to up to two US power consuming devices simultaneously.
Use to charge a device.
to download the latest user manual
1 User manual
TBUS-204 to the table.
P/N: 2 9 0 0 - 3 0 0 9 1 3 QS
1 Quick start guide
Rev: 3
