Summary of Contents for Kramer FC-29
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: FC-29 IR Learner... -
Page 2: Table Of Contents
Figure 4: IR Command Area Window Figure 5: Connect to IR Capture Device Window Figure 6: Connecting the IR Emitter Figure 7: Testing the IR Commands on the PC via the FC-29 Figure 8: Load Firmware Upgrade Window Figure 9: Connect Window... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals and guides from the Internet at this URL: http://www.kramerelectronics.com 3 The 3.5mm to IR Emitter Control Cable (C-A35/IRE-10) -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The FC-29 IR Learner learns and stores IR (infrared) commands on a PC via a USB connection. The stored IR commands can be uploaded later to multiple room controllers. In particular, the FC-29: Includes a built-in IR Receiver... -
Page 6: Your Fc-29 Ir Learner

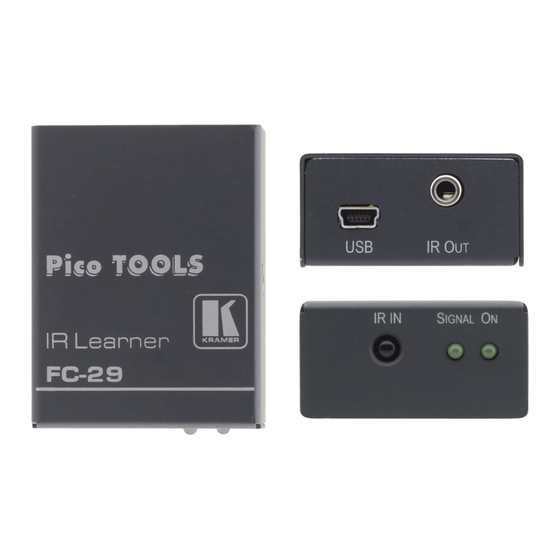

Your FC-29 IR Learner Your FC-29 IR Learner Figure 1 and Table 1 define the FC-29 unit: Figure 1: FC-29 IR Learner Table 1: Features and Functions of the FC-29 IR Learner Feature Function IR OUT 3.5mm Mini Connector Connect to the IR emitter cable for testing the learned... -
Page 7: Using The Fc-29 Ir Learner
It is recommended to test each IR command directly after it is learned 5.1 Connecting the FC-29 and Learning the IR Commands To connect the FC-29 IR Learner, as illustrated in the example in Figure 2: 1. Connect the FC-29 directly to your PC via the USB connector. -
Page 8: Figure 3: New Ir Command Window
Using the FC-29 IR Learner Figure 3: New IR Command Window 7. In the Command area, click the Connect to IR Capture Device button: Figure 4: IR Command Area Window 8. Select the port and click OK: Figure 5: Connect to IR Capture Device Window 9. -
Page 9: Testing The Ir Commands
Figure 7: Testing the IR Commands on the PC via the FC-29 1 For example, from a Kramer machine or a peripheral machine (like a DVD player) 2 Stick the IR emitter to the IR receiver window (usually located on the front panel of the device) -
Page 10: Exporting The Ir Commands
FC-29 from the Machine drop-down list: Figure 8: Load Firmware Upgrade Window 3. Connect the PC to the FC-29 via the USB connector. 4. Click the Connect button and select USB as the connection method, select the port and click OK. -
Page 11: Technical Specifications
After a few seconds, the file name changes to NewFirmware.kbn 6. When the following message appears: “Firmware upgrade successfully done, please safely remove the device”, disconnect the USB cable from the FC-29. Technical Specifications Table 2 defines the technical specifications:... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
