Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VA-1Hs UXGA Sync Shifter... -
Page 2: Table Of Contents
Connecting the VA-1Hs UXGA Sync Shifter Operating the VA-1Hs Resetting the Memory Technical Specifications Figures Figure 1: VA-1Hs UXGA Sync Shifter Functions Figure 2: Connecting the VA-1Hs UXGA Sync Shifter Tables Table 1: VA-1Hs UXGA Sync Shifter Functions Table 2: VA-1Hs Technical Specifications... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
When sending a computer graphics video signal from a PC to a monitor via a long-distance display cable, the delay between the picture information and the sync may cause a horizontal shift on the display. The VA-1Hs compensates by shifting the sync accordingly, so that the picture is properly displayed. -
Page 6: Your Va-1Hs Uxga Sync Shifter

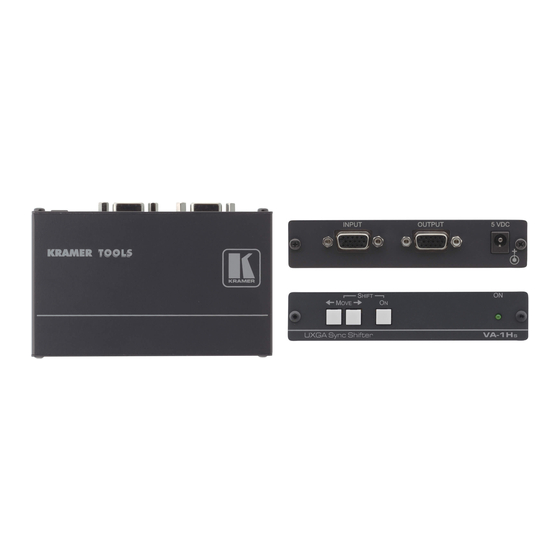

Push to enable image shifting ON LED Illuminates when the unit is powered ON Connecting the VA-1Hs UXGA Sync Shifter To connect the VA-1Hs, as the example in Figure 2 illustrates, do the following: 1. Turn OFF the power on all devices. -
Page 7: Operating The Va-1Hs
3 seconds. 3. The setting is saved in non-volatile memory 5 seconds after the last press/correction. 4. When the VA-1Hs is turned OFF and ON after a correction is made, the ON button lights weakly to indicate a stored value. -
Page 8: Resetting The Memory
Technical Specifications Note: If, when the VA-1Hs unit is turned ON, the ON button lights brightly and stays lit, there is a problem reading from non-volatile memory. Contact Customer Support. Resetting the Memory To erase the contents of the non-volatile memory, perform the following: 1. - Page 9 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
