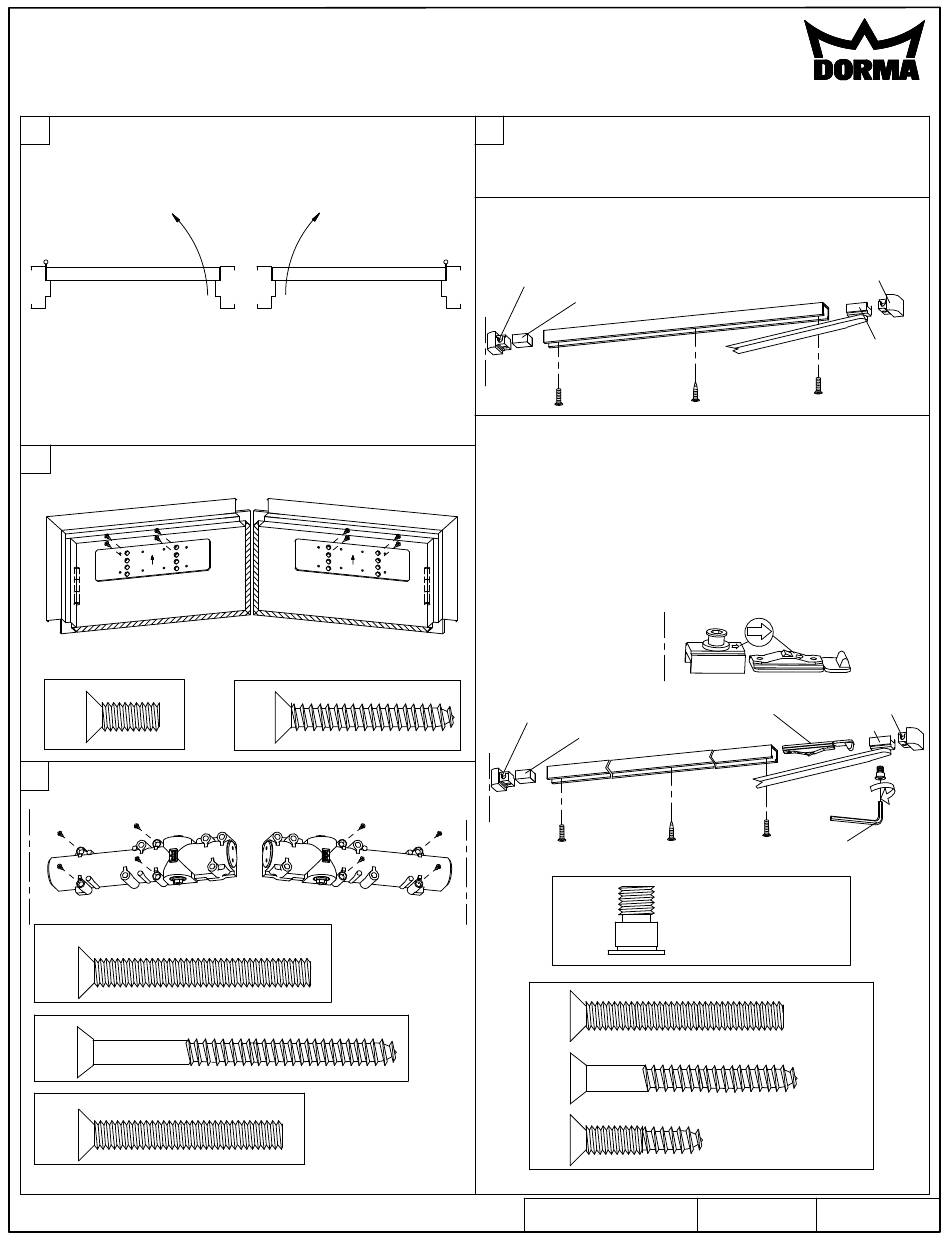

Dorma 8900 PT Manual

8900 PT, PTH
PUSH SIDE TRACK MOUNT (TRACK ON FRAME)
AND ACCESSORY PLATE BP89
1
(REFERENCE UNIT CARTON FOR ACCESSORIES AND
OPTIONS SUPPLIED)
Determine hand of door. Prepare door and frame
according to appropriate template.
RIGHT HAND
REVERSE BEVEL
LEFT HAND DOOR
CAUTION: SEX NUTS ARE REQUIRED FOR ATTACHMENT
OF COMPONENTS TO UNREINFORCED DOORS AND TO
WOOD OR PLASTIC FACED COMPOSITE TYPE FIRE
DOORS, UNLESS AN ALTERNATIVE METHOD IS
IDENTIFIED IN THE INDIVIDUAL DOOR MANUFACTURER'S
LISTINGS.
BP89 Plate applications only. Attach plate to door
2
as shown. Arrow on plate to point toward arm
attachment.
(LH DOOR)
METAL DOORS or
SN1 (Sex Nuts)
QTY
(4)
Attach closer to door or plate with spring
3
adjustment facing hinges.
C HINGES
L
(LEFT HAND DOOR)
METAL DOORS or SN1 (Sex Nuts)
QTY
(4)
WOOD DOORS
QTY
(4)
PLATE
QTY
(4)
www.dorma-usa.com
LEFT HAND
REVERSE BEVEL
RIGHT HAND DOOR
(RH DOOR)
WOOD DOORS
QTY
(4)
HINGESC L
(RIGHT HAND DOOR)
1-800-523-8483
4
Assemble track and attach to frame.
NOTE: OUTER TWO SCREWS PASS THROUGH END
BLOCKS.
(PT UNITS ONLY)
Insert slide shoe, rubber stop and end blocks
into track and attach track to frame.
END BLOCK
RUBBER STOP
C
L HINGE
(PTH UNITS ONLY)
Attach arm to slide shoe using screw supplied
and tighten securely. Insert slide shoe, rubber
stop, hold open mechanism, and end blocks into
track and attach track to frame.
NOTE: HOLD OPEN MECHANISM AND SLIDE SHOE MUST
BE INSTALLED WITH ARROWS POINTING AWAY
FROM THE DOOR HINGES. (ARROWS ARE
STAMPED ON SLIDE SHOE & HOLD OPEN
MECHANISM)
C
IMPORTANT :
HOLD OPEN MECHANISM
END BLOCK
RUBBER STOP
C
L HINGE
QTY
(1)
QTY
(2)
QTY
(2)
QTY
(1)
INSPK NO. 08279730 Rev.09/09
08279731
INS NO.
END BLOCK
SLIDE SHOE
L HINGE
END BLOCK
SLIDE SHOE
M6 HEX KEY
ARM TO SLIDE SHOE
(METAL)
(WOOD)
(WOOD AND METAL)
1 of 3
PAGE Rev.
09/09
