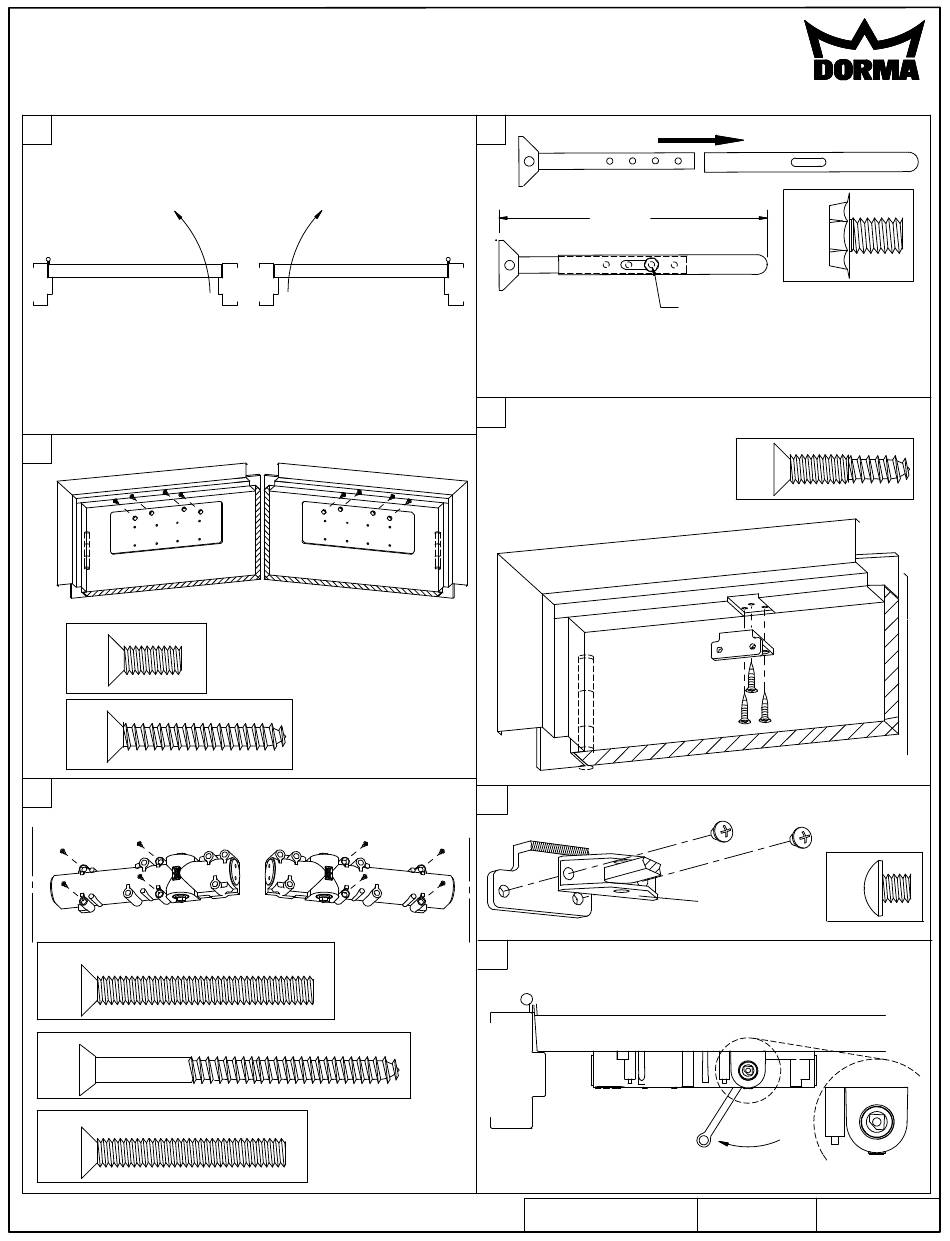

Dorma 8916 AF8MJ Manual

8916/8956 AF8MJ
PARALLEL ARM MOUNT WITH MORTISED JAMB
BRACKET AND ACCESSORY PLATE DP89
1
(REFERENCE UNIT CARTON FOR ACCESSORIES AND
OPTIONS SUPPLIED)
Determine hand of door. Prepare door and frame
according to template.
RIGHT HAND
REVERSE BEVEL
LEFT HAND DOOR
CAUTION: SEX NUTS ARE REQUIRED FOR ATTACHMENT
OF COMPONENTS TO UNREINFORCED DOORS AND TO
WOOD OR PLASTIC FACED COMPOSITE TYPE FIRE
DOORS, UNLESS AN ALTERNATIVE METHOD IS
IDENTIFIED IN THE INDIVIDUAL DOOR MANUFACTURER'S
LISTINGS.
DP89 Plate applications only. Attach plate to door
2
as shown.
(LH DOOR)
QTY
(4)
QTY
(4)
Attach closer to door or plate with spring
3
adjustment facing hinges.
L C HINGES
(LEFT HAND DOOR)
METAL DOORS or SN1 (Sex Nuts)
QTY
(4)
WOOD DOORS
QTY
(4)
PLATE
QTY
(4)
www.dorma-usa.com
LEFT HAND
REVERSE BEVEL
RIGHT HAND DOOR
(RH DOOR)
METAL DOORS or
SN1 (Sex Nuts)
WOOD DOORS
HINGESC L
(RIGHT HAND DOOR)
1-800-523-8483
4
14"
Slide bar into connecting arm.
Adjust overall length to 14".
Install connecting arm bolt, leaving bolt loose.
5
Install MJ bracket to frame.
6
Install arm shoe to MJ bracket.
Install main arm. Place wrench on bottom pinion and
7
rotate pinion 45° TOWARD HINGE edge of door.
INSPK NO. 08279740 Rev.09/09
08279741
INS NO.
QTY
(1)
Insert bolt in this hole.
QTY
(3)
QTY
(2)
ARM SHOE
45°
1 of 2
PAGE Rev.
09/09
