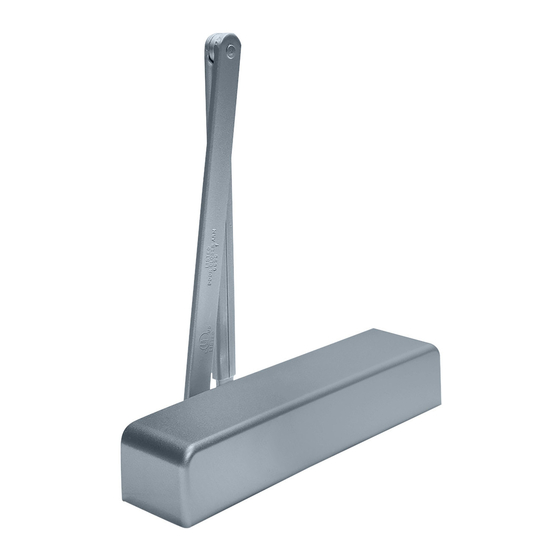

Dorma 8916 TDE Manual

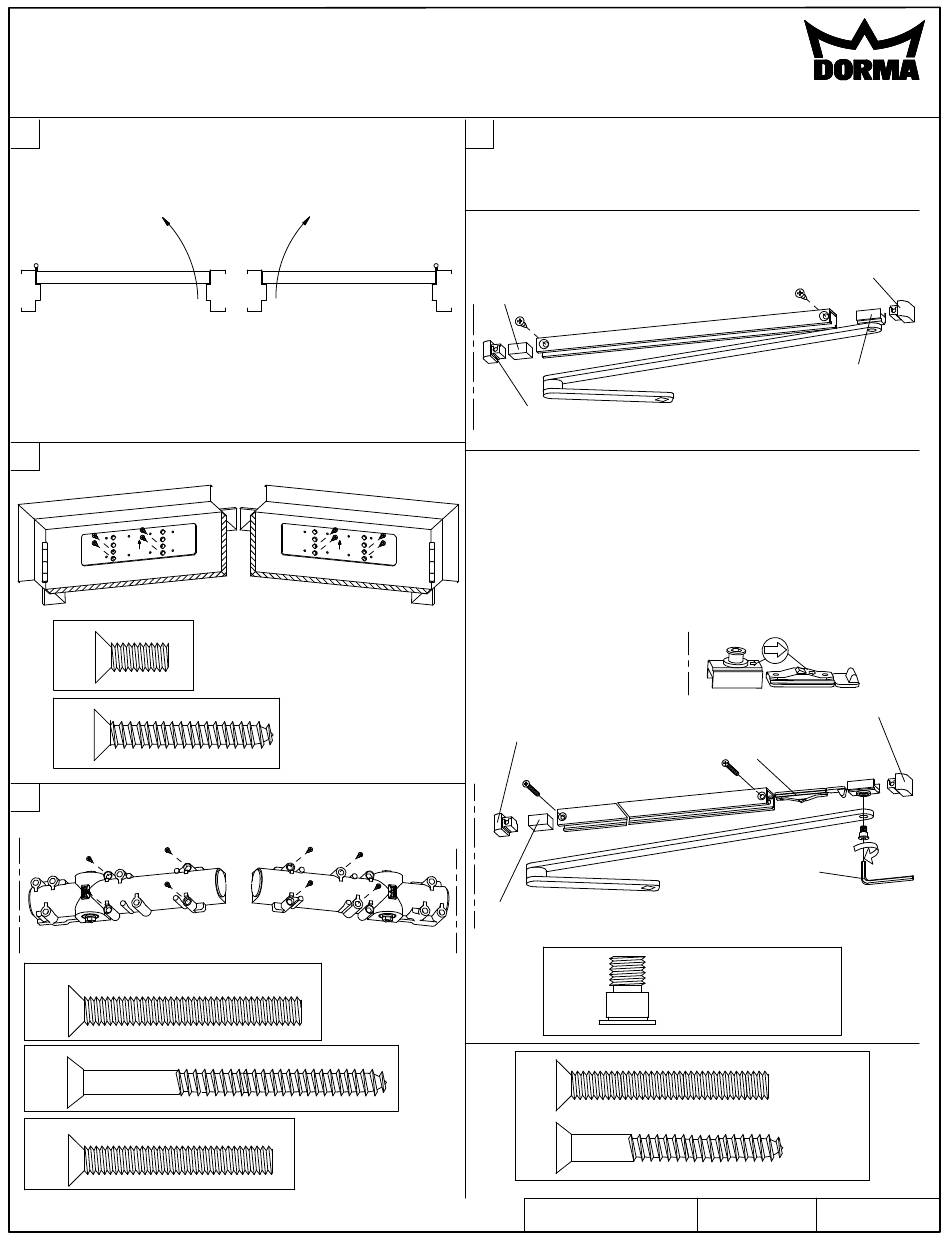

8916 / 8956 TDE, TDEH
TRACK DOUBLE EGRESS - PULL SIDE MOUNT
AND ACCESSORY PLATE BP89
1
(REFERENCE UNIT CARTON FOR ACCESSORIES AND
OPTIONS SUPPLIED)
Determine hand of door.
according to appropriate template.
RIGHT HAND
REVERSE BEVEL
LEFT HAND DOOR
CAUTION: SEX NUTS ARE REQUIRED FOR ATTACHMENT
OF COMPONENTS TO UNREINFORCED DOORS AND TO
WOOD OR PLASTIC FACED COMPOSITE TYPE FIRE
DOORS, UNLESS AN ALTERNATIVE METHOD IS
IDENTIFIED IN THE INDIVIDUAL DOOR MANUFACTURER'S
LISTINGS.
BP89 Plate applications only. Attach plate to door
2
as shown. Arrow on plate to point toward arm
attachment.
(RH DOOR)
QTY
(4)
QTY
(4)
3 Attach closer to door or plate with sweep and
latch valves facing hinges.
C HINGES
L
(RIGHT HAND DOOR)
METAL FRAMES
QTY
(4)
WOOD FRAMES
QTY
(4)
PLATE
QTY
(4)
Prepare door and frame
LEFT HAND
REVERSE BEVEL
RIGHT HAND DOOR
(LH DOOR)
METAL FRAME
WOOD FRAME
HINGESC
(LEFT HAND DOOR)
INSPK 08279350 Rev.09/09
4
Assemble track and attach to frame.
NOTE: (A) MOUNTING SCREWS PASS THROUGH END
BLOCKS.
(B) RIGHT HAND SHOWN.
(TDE UNITS ONLY)
Insert slide shoe, rubber stop and end blocks
into track and attach track to frame.
RUBBER STOP
END BLOCK
C
L HINGES
(TDEH UNITS ONLY)
Attach arm to slide shoe using screw supplied
and tighten securely. Insert slide shoe, rubber
stop, hold open mechanism, and end blocks into
track and attach track to frame.
NOTE: HOLD OPEN MECHANISM AND SLIDE SHOE MUST
BE INSTALLED WITH ARROWS POINTING AWAY
FROM THE DOOR HINGES. (ARROWS ARE
STAMPED ON SLIDE SHOE & HOLD OPEN
MECHANISM)
IMPORTANT :
END BLOCK
HOLD OPEN MECHANISM
L
RUBBER STOP
C
L HINGES
QTY
(1)
QTY
(2)
QTY
(2)
08279351
INS NO.
END BLOCK
SLIDE SHOE
C
L HINGE
END BLOCK
SLIDE SHOE
M6 HEX KEY
ARM TO SLIDE SHOE
(METAL)
(WOOD)
1 of 3
PAGE Rev.
09/09
