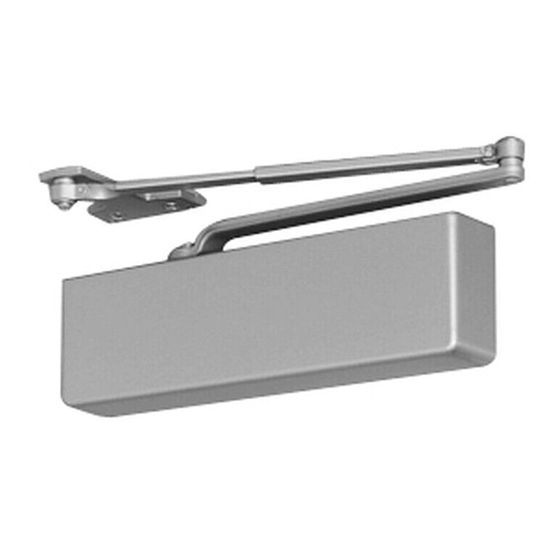

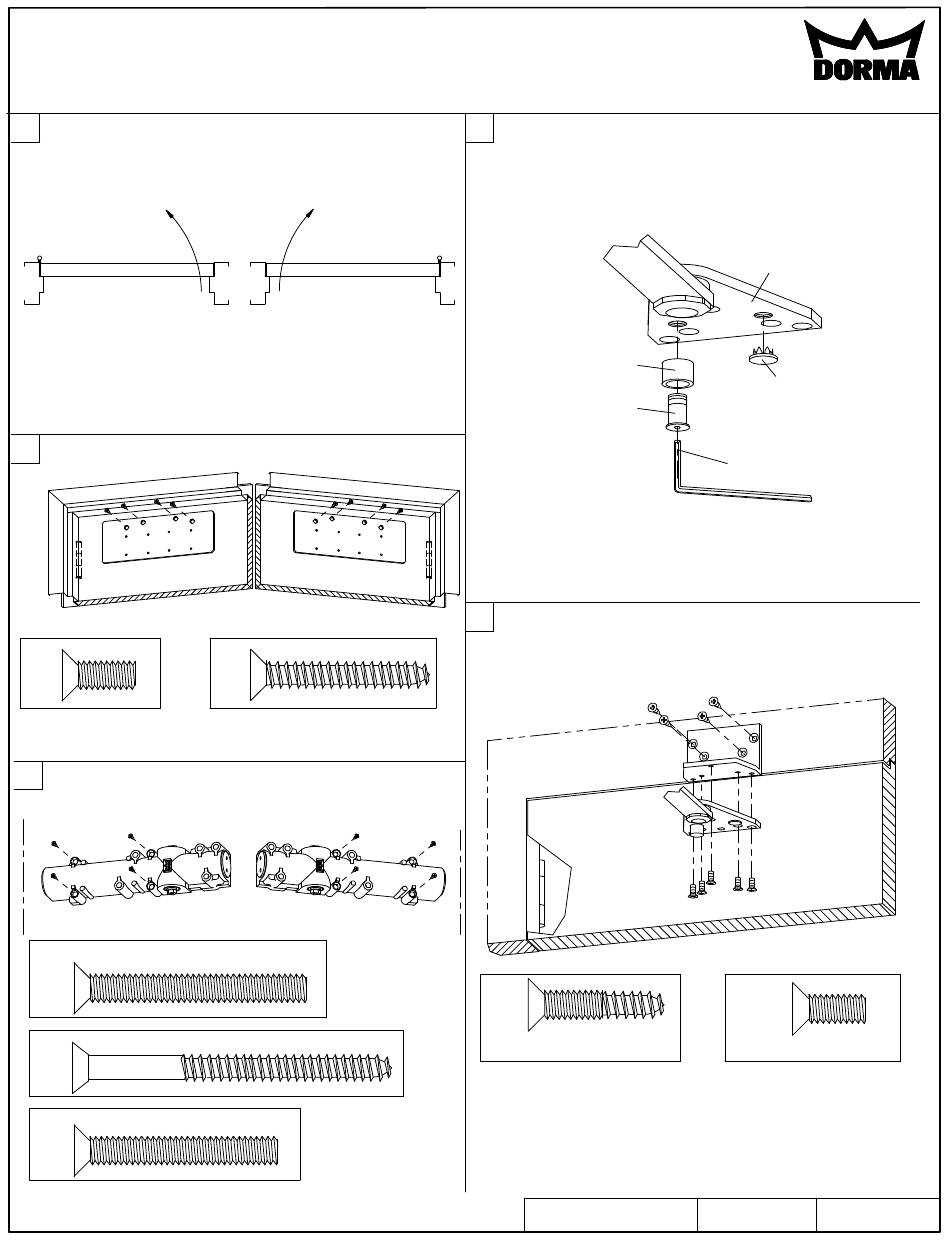

8900 DS, DST, DSK X FTHD
PARALLEL ARM MOUNT
AND ACCESSORY PLATE DP89
1
(REFERENCE UNIT CARTON FOR ACCESSORIES AND
OPTIONS SUPPLIED)
Determine hand of door. Prepare door and frame
utilizing full size template.
RIGHT HAND
REVERSE BEVEL
LEFT HAND DOOR
CAUTION: SEX NUTS ARE REQUIRED FOR ATTACHMENT
OF COMPONENTS TO UNREINFORCED DOORS AND TO
WOOD OR PLASTIC FACED COMPOSITE TYPE FIRE
DOORS, UNLESS AN ALTERNATIVE METHOD IS
IDENTIFIED IN THE INDIVIDUAL DOOR MANUFACTURER'S
LISTINGS.
2
DP89 Plate applications only. Attach plate to door
as shown.
(LH DOOR)
QTY
(4)
METAL DOORS or
SN1 (Sex Nuts)
3
Attach closer to door or plate with spring
adjustment facing hinges.
L C
HINGES
(LEFT HAND DOOR)
METAL DOORS or SN1 (Sex Nuts)
QTY
(4)
WOOD DOORS
QTY
(4)
PLATE
QTY
(4)
www.dorma-usa.com
LEFT HAND
REVERSE BEVEL
RIGHT HAND DOOR
(RH DOOR)
QTY
(4)
WOOD DOORS
HINGESC
(RIGHT HAND DOOR)
1-800-523-8483
4
Assemble soffit plate.
Determine hand of door, slide rubber stop onto
arm stop. Thread arm stop into appropriate hole.
Insert 1/4" hex wrench into arm stop and turn
to seat tightly. Insert filler plug in opposite hole.
RUBBER STOP
ARM STOP
(LEFT HAND ASSEMBLY SHOWN)
5
Install transom bracket and soffit plate.
L
QTY
(4)
(BRACKET TO TRANSOM)
INSPK NO. 08280490 Rev.09/09
08280491
INS NO.
SOFFIT PLATE
FILLER PLUG
1/4" HEX WRENCH
QTY
(5)
(PLATE TO BRACKET)
1 of 3
09/09
PAGE
Rev.
