8916/8956 T, TH

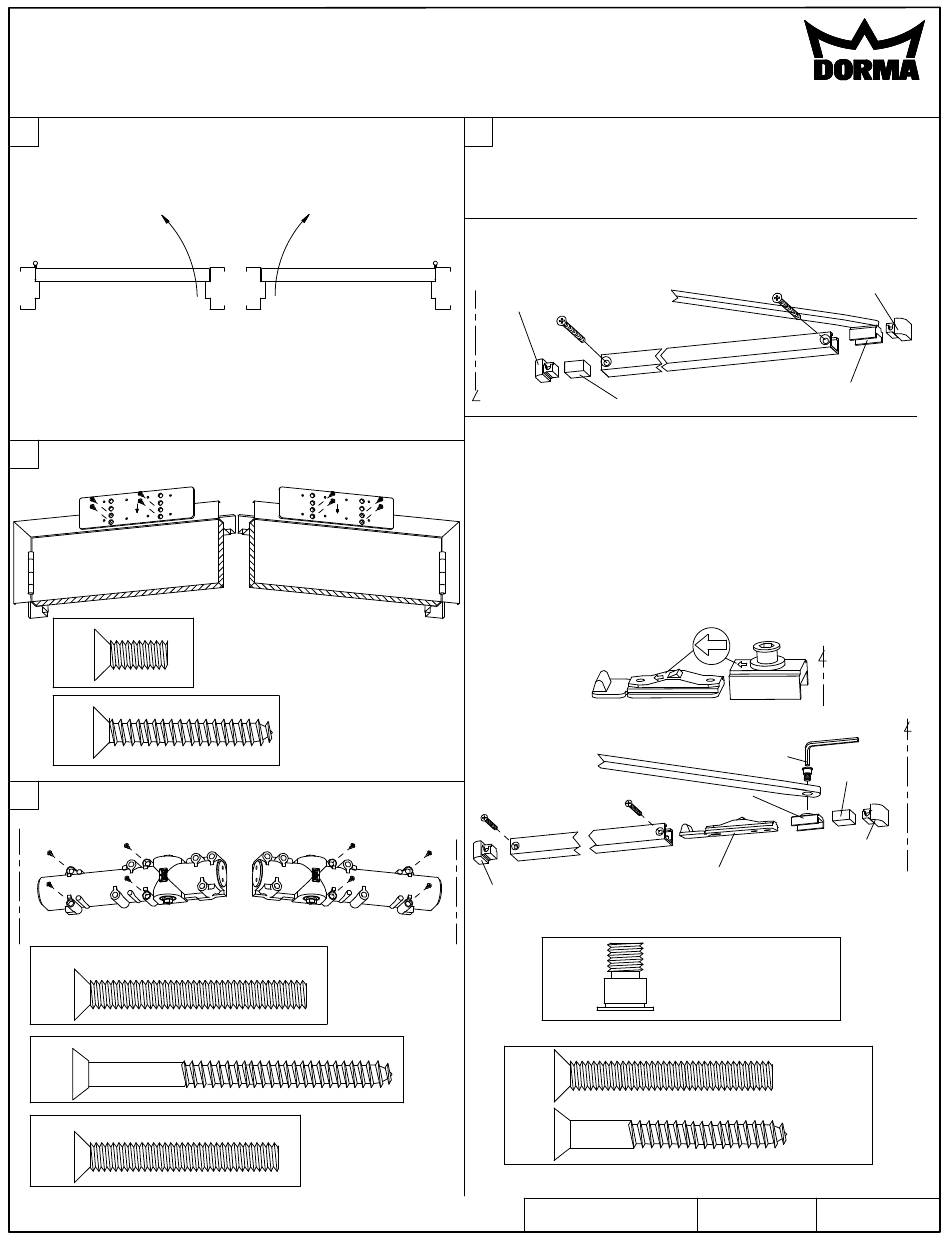

TRACK INSTALLATION PULL SIDE MOUNT
AND ACCESSORY PLATE BP89
1
(REFERENCE UNIT CARTON FOR ACCESSORIES AND
OPTIONS SUPPLIED)
Determine hand of door. Prepare door and frame
according to appropriate template.
RIGHT HAND
REVERSE BEVEL
LEFT HAND DOOR
CAUTION: SEX NUTS ARE REQUIRED FOR ATTACHMENT
OF COMPONENTS TO UNREINFORCED DOORS AND TO
WOOD OR PLASTIC FACED COMPOSITE TYPE FIRE
DOORS, UNLESS AN ALTERNATIVE METHOD IS
IDENTIFIED IN THE INDIVIDUAL DOOR MANUFACTURER'S
LISTINGS.
BP89 Plate applications only. Attach plate to frame
2
as shown. Arrow on plate to point toward arm
attachment.
(RH DOOR)
QTY
(4)
QTY
(4)
Attach closer to frame or plate with spring
3
adjustment facing hinges.
L C
HINGES
(RIGHT HAND DOOR)
METAL FRAMES
QTY
(4)
WOOD FRAMES
QTY
(4)
PLATE
QTY
(4)
www.dorma-usa.com
LEFT HAND
REVERSE BEVEL
RIGHT HAND DOOR
(LH DOOR)
METAL FRAME
WOOD FRAME
HINGESC L
(LEFT HAND DOOR)
1-800-523-8483
Assemble track and attach to door.
4
NOTE: (A) MOUNTING SCREWS PASS THROUGH END
BLOCKS.
(B) FOR 180° OPENING, ASSEMBLE TRACK
WITHOUT RUBBER STOP.
(T UNITS ONLY)
Insert slide shoe, rubber stop and end blocks
into track and attach track to door.
END BLOCK
C HINGES
RUBBER STOP
(TH UNITS ONLY)
Attach arm to slide shoe using screw supplied
and tighten securely. Insert slide shoe, rubber
stop, hold open mechanism, and end blocks into
track and attach track to door.
NOTE: HOLD OPEN MECHANISM AND SLIDE SHOE MUST
BE INSTALLED WITH ARROWS POINTING AWAY
FROM THE DOOR HINGES. (ARROWS ARE
STAMPED ON SLIDE SHOE & HOLD OPEN
MECHANISM)
IMPORTANT :
HOLD OPEN MECHANISM
END BLOCK
QTY
(1)
QTY
(2)
QTY
(2)
INSPK NO. 08280120 Rev.09/09
08280121
INS NO.
END BLOCK
SLIDE SHOE
C HINGES
M6 HEX KEY
RUBBER
SLIDE SHOE
END BLOCK
ARM TO SLIDE SHOE
(METAL)
OR
(WOOD)
1 of 3
PAGE Rev.
HINGES C
STOP
09/09
