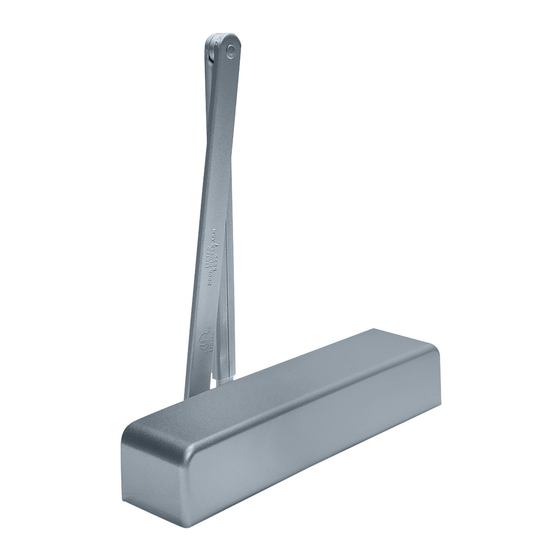

Dorma 8956 T PKT 90 Manual

8956 T PKT 90

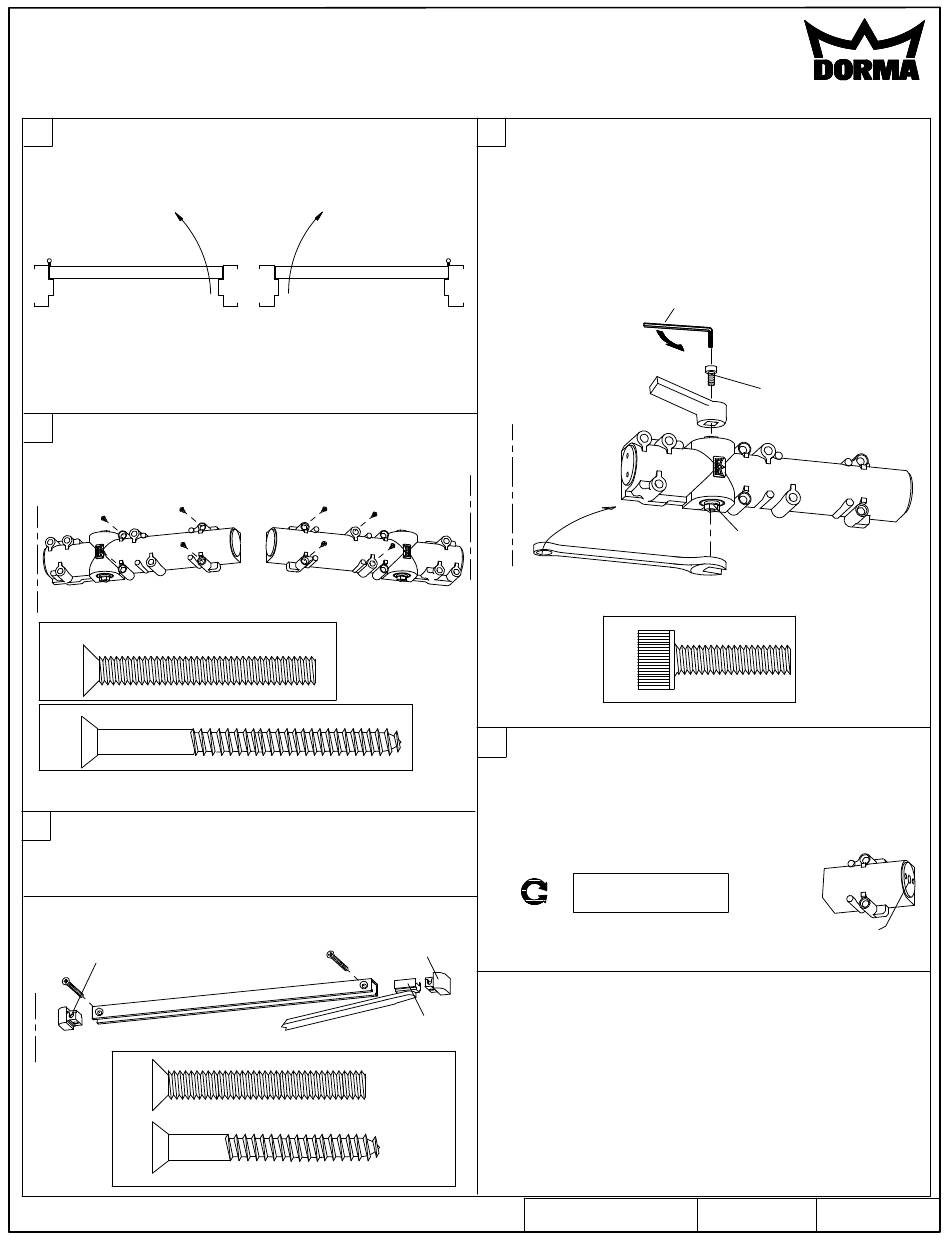

POCKET DOOR APPLICATION
(TRACK ON WALL)
1
(REFERENCE UNIT CARTON FOR ACCESSORIES AND
OPTIONS SUPPLIED)
Prepare door and frame according to template.
RIGHT HAND
REVERSE BEVEL
LEFT HAND DOOR
CAUTION: SEX NUTS ARE RECOMMENDED FOR
ATTACHMENT OF COMPONENTS ON UNREINFORCED
DOORS, COMPOSITE DOORS OR LABELED FIRE DOORS.
2
Attach closer to door or plate with sweep and
latch valves facing hinges.
L C
HINGES
(RIGHT HAND DOOR)
METAL DOOR
QTY
(4)
WOOD DOOR
QTY
(4)
3
Assemble track and attach to wall.
NOTE: OUTER TWO SCREWS PASS THROUGH END
BLOCKS.
Insert slide shoe and end blocks into track
and attach track to wall.
END BLOCK
C
L HINGE
QTY
(2)
QTY
(2)
www.dorma-usa.com
LEFT HAND
REVERSE BEVEL
RIGHT HAND DOOR
HINGES L
(LEFT HAND DOOR)
END BLOCK
SLIDE SHOE
(METAL)
(WOOD)
1-800-523-8483
4
Place wrench on pinion at bottom of closer.
Rotate pinion 45° TOWARD LATCH edge of door.
Attach main arm to top pinion and secure
tightly with pinion screw.
6mm Hex Key
C
L HINGE
C
45°
ROTATE
QTY
(1)
5
Adjust spring tension to ensure proper closing
and latching of door. ( Use 1/4" wrench)
NOTE: Clockwise turns increase spring tension.
MAXIMUM NUMBER OF TURNS - 13
+
CRITICAL
-
INSPK NO. 08280130 Rev.09/09
08280131
INS NO.
NOTE: RIGHT HAND DOOR
INSTALLATION SHOWN.
LEFT HAND IS A MIRROR IMAGE.
PINION SCREW
PINION
SPRING TENSION
ADJUSTER
1 of 2
PAGE Rev.
09/09
