4.4 Pin Assignment of the Connector

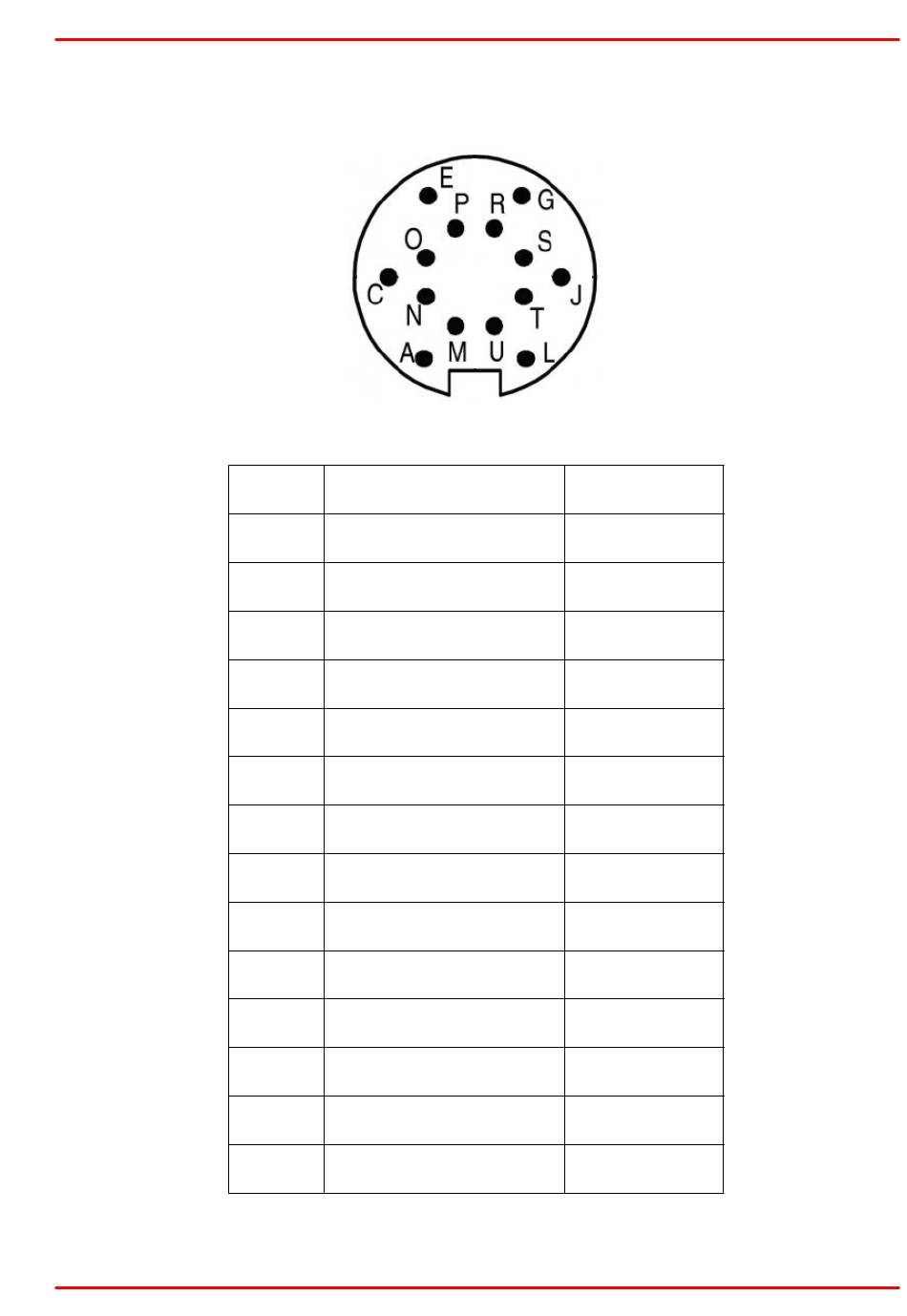

The following picture shows the male connector of the LED4Dxxx. It is a 14 pin connector
screw locking according to IEC 130-9.
Pin assignment of the connector
© 2018 Thorlabs
Male Connector of the LED4Dxxx
Pin Description
A LED1 Anode
C LED1 Cathode
E LED2 Anode
G LED3 Anode
J LED3 Cathode
L LED4 Anode
M LED1 1 Wire EEPROM I/O
N DGND
O Not connected
P LED2 Cathode
R Not connected
S Not connected
T Not connected
U LED4 Cathode
Comment
Do not use
Do not use
