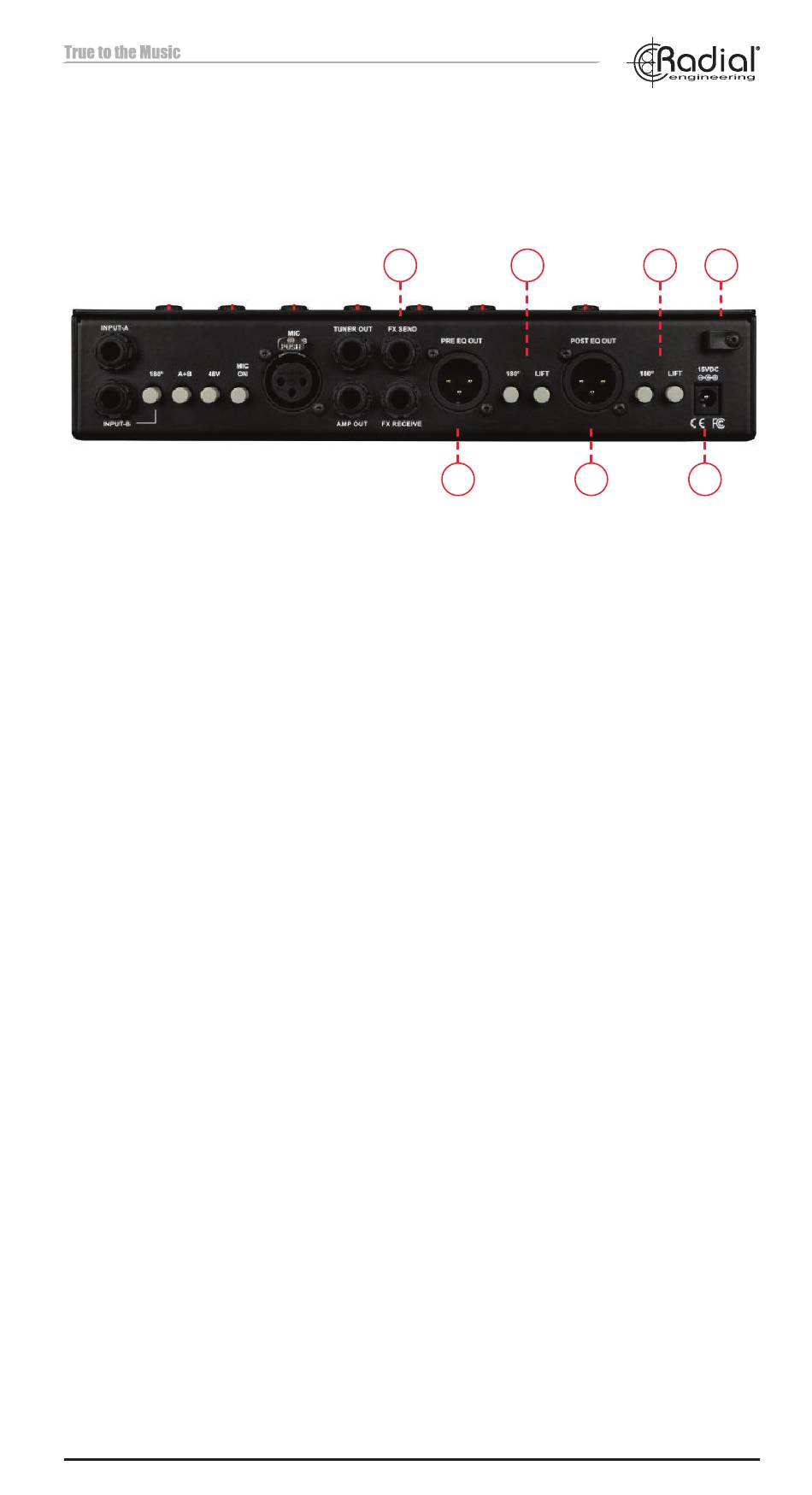

FEATURES - REAR PANEL CONTINUED
FX SEND & RECEIVE: Unbalanced connections for adding
9.
mono effects pedals or pedal chains to the FX Loop of the PZ-
Pro. These connections are activated using the Boost/FX Loop
Footswitch.
PRE EQ OUT: Balanced XLR direct box output to feed a mic-level
10.
signal to the PA or a recording interface. Pre EQ output is not
affected by EQ & Filter settings or by FX/Boost functions.
180, LIFT: Polarity reverse & ground lift switches for Pre EQ Out.
11.
POST EQ OUT: Balanced XLR direct box output to feed a mic-
12.
level signal to the PA or monitor system. Post EQ output signal
is affected by the EQ & Filter settings as well as the FX/Boost
functions.
180, LIFT: Polarity reverse & ground lift switches for Post EQ Out.
13.
15VDC: Connection for the Radial 15VDC/400mA power supply
14.
(included).
CABLE CLAMP: Prevents accidental power disconnection by
15.
locking down the AC adapter cable.
