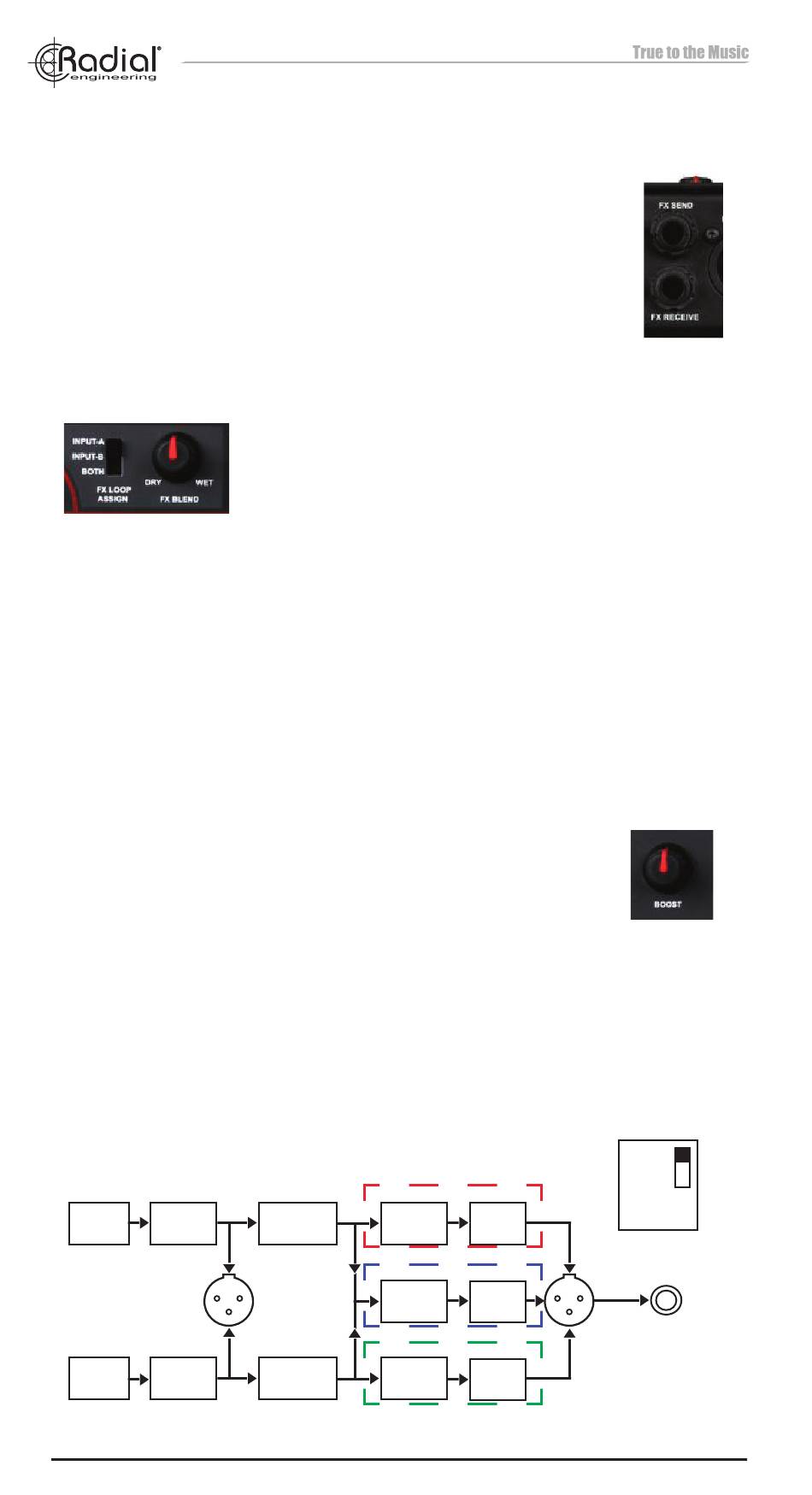

THE FX LOOP AND BOOST

The FX Loop on the PZ-Pro allows you to connect mono
guitar pedals and other unbalanced effects devices and
seamlessly integrate them into your performance. To
connect effects pedals to the PZ-Pro, use a regular
1/4" TS instrument cable and connect the FX Send to
the input of the guitar pedal, and the FX Receive to the
output of the device.
The FX Loop controls
The FX Blend control lets you blend in the desired amount of 'wet' effects
into the signal path without affecting the original 'dry' signal. This lets
you to retain the original tone of your acoustic guitar or bass and mix
in a touch of distortion or overdrive to your sound while retaining the
fundamental tone of the instrument. With the FX Blend turned fully
clockwise, you will only hear the output of your effects pedals when the
FX Loop is active. With this control set to 12 o'clock, there will be a 50/50
mix between your wet and dry signals.
The Boost control on the PZ-Pro adds clean gain to
your signal at a moment's notice, handy for soloing or
when you need your sound to cut through the mix. Use
the Boost level control to set the amount of gain applied
to the signal, with a maximum of +15dB added when
turned fully clockwise.
The Boost feature will always come directly after the FX Loop in the
PZ-Pro signal path, as it is also affected by the FX Loop Assign switch.
The diagram below shows the three settings of this switch and how they
change which inputs are affected by the FX Loop and Boost.
Level
Input-A
Control
Level
Input-B
Control
The three options for the FX Loop and Boost in the PZ-Pro signal chain
Radial Engineering Ltd.
You can choose to have the pedals in the FX
Loop affect Input-A, Input-B, or both depending
on the setting of the FX Loop Assign switch. This
allows you to add effects such as delay or chorus
to just one of your instruments, leaving the other
unaffected.
EQ & FX
Filter Loop
Pre EQ
Out
FX
Loop
EQ & FX
Filter Loop
10
INPUT-A
Boost
BOTH
Boost
INPUT-B
Boost
The FX Loop
connectors
The Boost control
INPUT-A
INPUT-B
BOTH
FX LOOP
ASSIGN
Post EQ 1/4" Amp
Out Out
