Radial Engineering PZ-PRO User Manual page 6

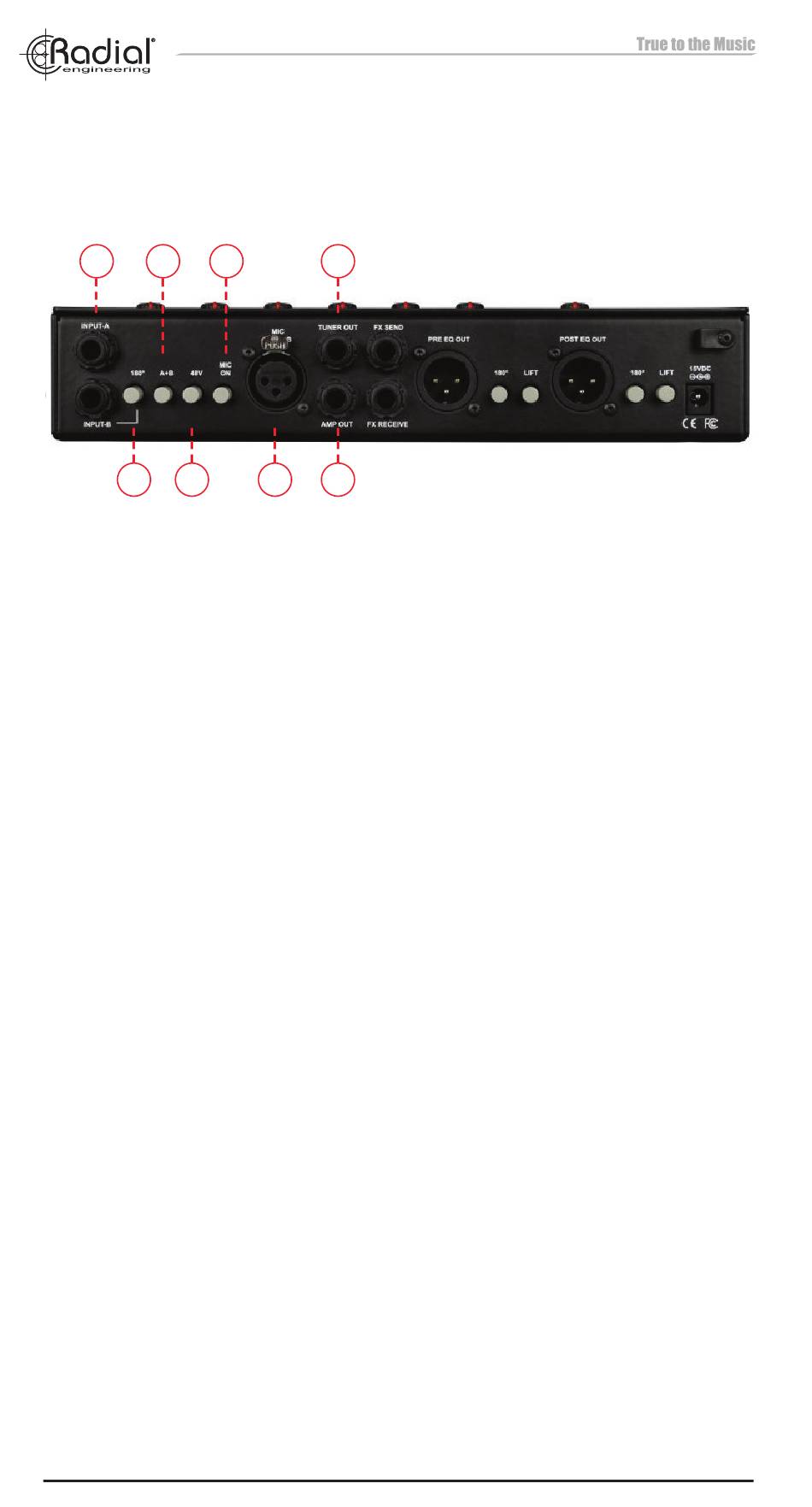

FEATURES - REAR PANEL
1 3
20
2 4
1. INPUTS A & B: 1/4" inputs for guitars and instruments.
INPUT B 180: Polarity reverse switch for Input B helps to correct
2.
for phase issues when summing both inputs together. This switch
also affects Mic Input B.
A+B: Sums Input A and Input B together after their respective
3.
EQ & Filter sections. Engaging this switch activates both inputs
simultaneously and disables the Toggle Footswitch.
48V: Engages phantom power on Mic Input B for powering
4.
condenser microphones.
MIC ON: Activates the Mic Input for channel B. When this switch
5.
is pressed, the 1/4" instrument input for channel B is deactivated.
MIC INPUT B: XLR input for connecting a microphone to channel
6.
B of the PZ-Pro. Compatible with dynamic and condenser mics.
TUNER OUT: 1/4" buffered output to feed a tuner pedal. This
7.
output will always be active, even when the Mute Footswitch is
engaged, allowing for quiet on-stage tuning anytime.
AMP OUT: 1/4" TS instrument-level output for feeding the input of
8.
a stage amplifier. Amp Out signals include all EQ & Filter settings,
FX Loop and Boost functions.
Radial Engineering Ltd.
5 7
6 8
4
PZ-Pro™
