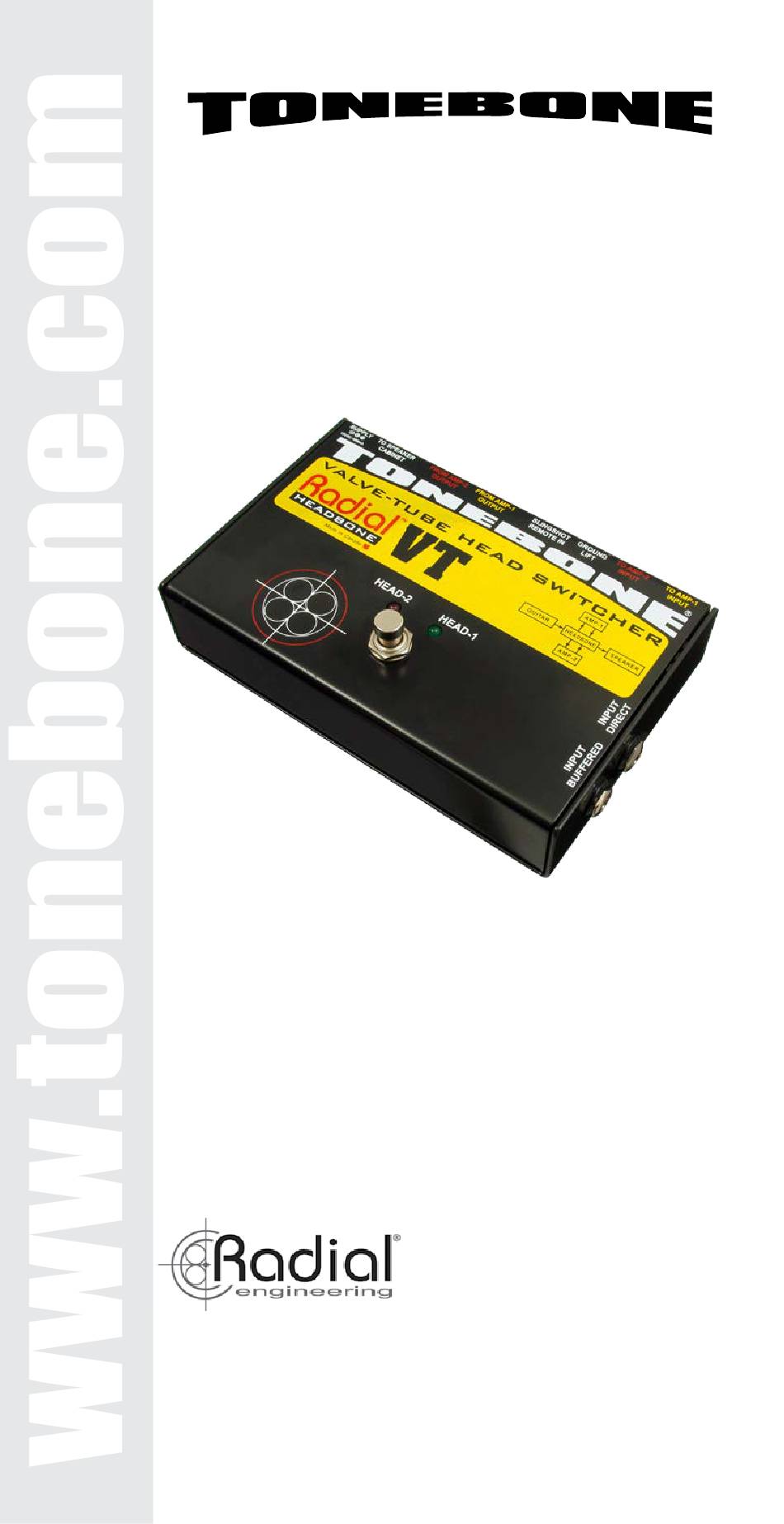

- Page 1 ® Headbone VT User Guide Radial Engineering 1588 Kebet Way, Port Coquitlam BC V3C 5M5 tel: 604-942-1001 • fax: 604-942-1010 info@radialeng.com • www.radialeng.com...
- Page 2 Headbone under these terms, and waives his/her rights to a liability claim against Radial Engineering (or as- sociated companies or directors) for any damage or injury caused while using the Headbone.
-
Page 3: Table Of Contents
If you have a question that is not covered there, please feel free to send us an email at info@radialeng.com and we will do our very best to respond as quickly as possible. Radial Engineering Ltd. Headbone User Guide... -
Page 4: Introduction
Inbetween the amps and a single speaker cabinet sits the Headbone allowing you to select between amps with a remote footswitch on your pedalboard. Add a good distortion pedal, like a Tonebone Classic tube distortion, and your setup becomes a tone monster. Radial Engineering Ltd. Headbone User Guide... - Page 5 Headbone adds tonal flexibility while reducing the amount of equipment you must bring to the gig! More tone with less gear. AMP HEAD-2 AMP HEAD-1 Radial Engineering Ltd. Headbone User Guide...
-
Page 6: Feature Set
15VDC power supply in a choice of 100V, 110V, 220V and 240V models. 11. Footswitch – Used to toggle the Headbone between Amp-1 and Amp-2 12. LED Indicators – Indicates which amplifier head is active. Radial Engineering Ltd. Headbone User Guide... -
Page 7: Quick Start
8 Ohms both amps should be set to 8 Ohms. If you are unsure about this, consult a qualified technician. Always use good quality, heavy gauge speaker cables to ensure the best possible power transfer. Radial Engineering Ltd. Headbone User Guide... - Page 8 Turn up the volume slowly while listening for excessive noise. Depress the footswitch to make sure both amps are working. Tube Amp Tube Amp Radial Engineering Ltd. Headbone User Guide...
-
Page 9: Getting To Know Your Headbone
It is important that the input going to the unused head be disconnected so that, while in standby, it is not trying to amplify a signal with nowhere to go. The Headbone performs silent Continue Next Page >> Radial Engineering Ltd. Headbone User Guide... - Page 10 This could cause the amp or the Head- bone to malfunction. The Headbone’s internal resistor load is only designed to support the standby amplifiers residual output. The Headbone is NOT a load box. Radial Engineering Ltd. Headbone User Guide...
- Page 11 2-prong AC plugs, such as old vintage amps, you are doing so at your own risk. Please consult a qualified technician if you are not sure how to establish a safety ground connection. Radial Engineering Ltd. Headbone User Guide...
- Page 12 Slingshot Remote input on the Headbone with a two conductor cable. Connecting a remote footswitch to the Headbone will disable the onboard footswitch. If you are unsure of these requirements, please refer to a qualified electronic technician. Radial Engineering Ltd. Headbone User Guide...
-
Page 13: Faq
Q: Can I use the Headbone with a MIDI switcher? A: Yes. Most MIDI switchers are equipped with a contact closure output jack. This would be connected to the Headbone’s Slingshot input to remotely control amp switching. Radial Engineering Ltd. Headbone User Guide... - Page 14 A: No. Never use another power supply unit other than the one included with your Headbone. Because of the Headbone’s Class-A circuit, a more powerful 15VDC supply is required. If you need a replacement power supply, contact your Tonebone dealer. Radial Engineering Ltd. Headbone User Guide...
- Page 15 Notes Radial Engineering Ltd. Headbone User Guide...
-
Page 16: Warranty
RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial Engineering will repair or replace at its option any defective component(s) of this product, excluding...
