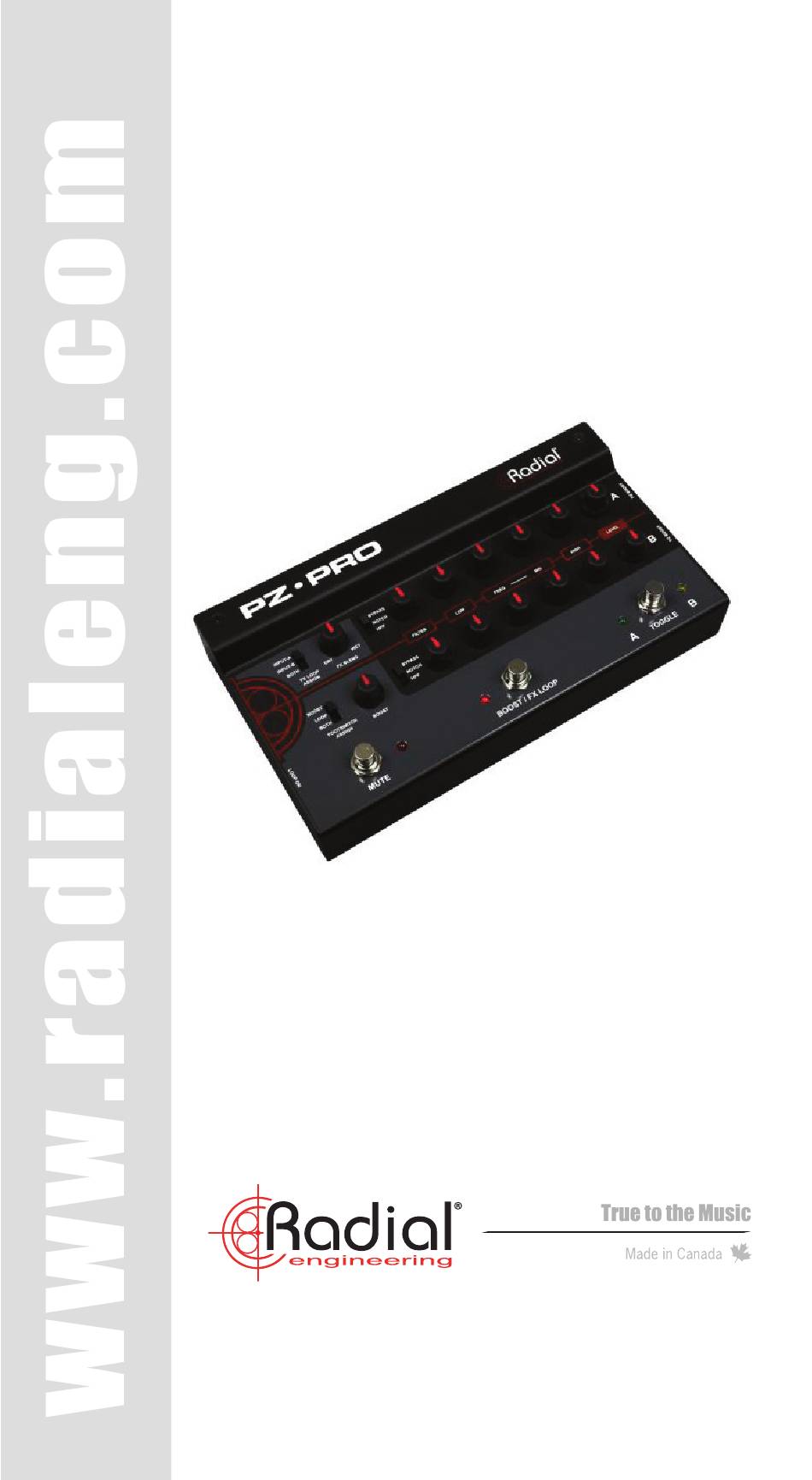

- Page 1 PZ•PRO USER GUIDE Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam BC V3C 5M5 support@radialeng.com • 604-942-1001 • www.radialeng.com...
-
Page 2: Table Of Contents
The PZ-Pro is packed with features, and offers a number of ways in which it can be used. To fully utilize all the possible functions of PZ-Pro, please take a moment to read through this manual, which details each feature and outlines their use. -
Page 3: Overview
PA system, while taking the Post EQ shaped sound to your monitor system for in-ears or stage wedges. In addition to the XLR outputs, the PZ-Pro also has a 1/4" amp out to feed a stage amplifier, and a buffered always-on output to feed a tuner pedal. -

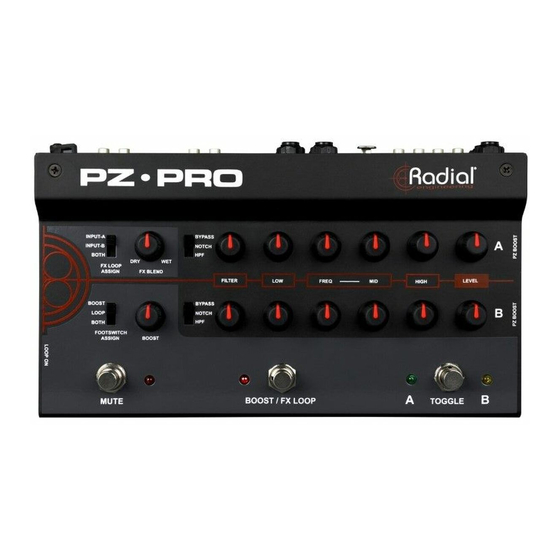

Page 4: Features And Functions
Boost, FX Loop, or both simultaneously. BOOST: Sets the amount of clean boost applied when the Boost function is active. Up to +15dB of gain is available when this control is turned fully clockwise. Radial Engineering Ltd. PZ-Pro™... - Page 5 TOGGLE A/B: Selects between inputs A and B, with LED indicators to display the active input. This switch is deactivated if A+B is engaged on the rear panel of the PZ-Pro, since both inputs will be always on. PZ BOOST: Recessed side-access switches activate a 10dB signal boost on inputs A &...
- Page 6 1/4" instrument input for channel B is deactivated. MIC INPUT B: XLR input for connecting a microphone to channel B of the PZ-Pro. Compatible with dynamic and condenser mics. TUNER OUT: 1/4" buffered output to feed a tuner pedal. This output will always be active, even when the Mute Footswitch is engaged, allowing for quiet on-stage tuning anytime.
- Page 7 EQ & Filter settings as well as the FX/Boost functions. 180, LIFT: Polarity reverse & ground lift switches for Post EQ Out. 15VDC: Connection for the Radial 15VDC/400mA power supply (included). CABLE CLAMP: Prevents accidental power disconnection by locking down the AC adapter cable. Radial Engineering Ltd. PZ-Pro™...
- Page 8 When using just a single instrument with the PZ-Pro, plugging into input A allows you to use both channels of the PZ-Pro as if you were playing through a two-channel amplifier. This is due to the fact that Input A automatically feeds into Input B when nothing is connected to the Input B 1/4"...
-
Page 9: Connecting Instruments
PZ-Pro using a single cable. Simply use a 1/4" TRS cable as shown in the diagram below to connect to Input B of the PZ-Pro, while leaving nothing connected to Input A. The Tip conductor of the cable will... -
Page 10: Blending Inputs With A+B
Aside from the Toggle Footswitch, when blending both inputs together with the A+B switch the remaining PZ-Pro features will continue to function normally: The EQ and Filter sections still allow you to tailor the... -
Page 11: The Eq & Filter Section
The controls for channel A are located along the top row of the PZ-Pro, while the controls for channel B are mirrored along the bottom row. -
Page 12: The Fx Loop And Boost
The Boost feature will always come directly after the FX Loop in the PZ-Pro signal path, as it is also affected by the FX Loop Assign switch. The diagram below shows the three settings of this switch and how they change which inputs are affected by the FX Loop and Boost. -
Page 13: The Boost/Fx Loop Footswitch
A Loop On switch is also provided on the left side of the PZ-Pro, which allows the FX Loop to remain active at all times, so you can control your effects pedals individually using their own footswitches. -
Page 14: The Tuner Out And Mute Footswitch
The Ground Lift switch disconnects pin-1 audio ground on the XLR output, which can help reduce hum and buzz that occurs due to ground loops. If you encounter ground loop noise when the PZ-Pro is connected, engaging the Ground Lift on each connected output can help alleviate this issue. -
Page 15: Specifications
Specifications are subject to change without notice In order to meet Electromagnetic and Safety Compliance requirements Radial Engineering is recommending to use the PZ-Pro product with the provided R800 9415 00 power adapter, Model: GME6A-150040FX, Input: 100-240V, 50-60Hz, 0.25A, Output 15V, 0.4A, I.T.E.Power Supply, considering all Electromagnetic and Safety compliance was performed using only this power adapter mentinoned above Radial Engineering Ltd. - Page 16 1588 Kebet Way, Port Coquitlam BC V3C 5M5 support@radialeng.com • 604-942-1001 • www.radialeng.com Radial PZ-Pro User Guide - Part #: R870 1064 00 / 08-2020 / V1 Appearance and specifications subject to change without notice. Copyright © 2020 Radial Engineering Ltd. All rights reserved.
