THE PZ-PRO OUTPUTS CONTINUED
The Post EQ XLR Out takes a signal that is after (Post) the EQ, FX
and Boost features, providing an affected 'wet' signal that is perfect for
feeding a monitor mix system or a powered PA monitor for gigs without a
dedicated sound engineer.

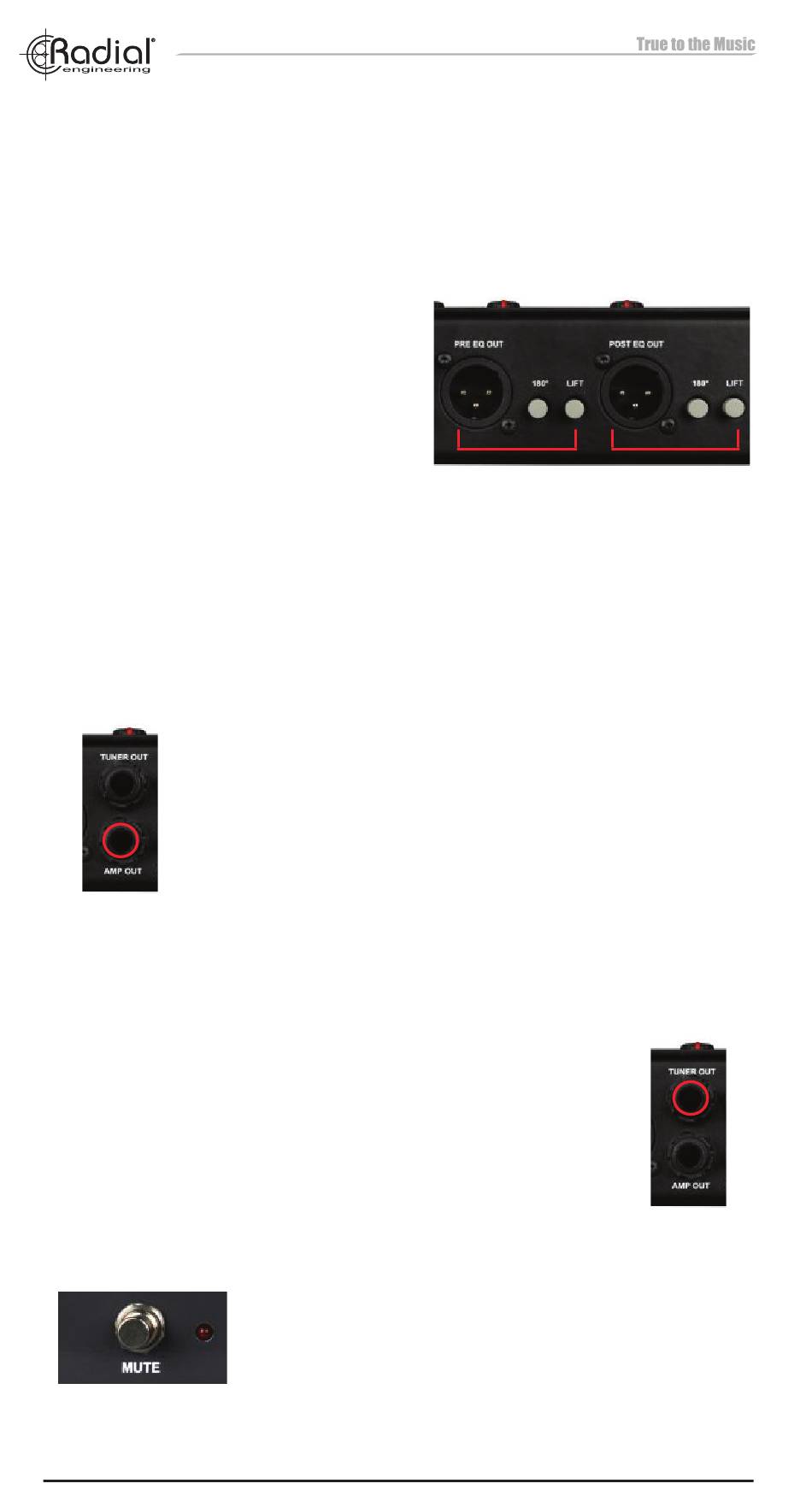

Each XLR output
additional features: a 180° switch
and a Ground Lift. The 180° switch
reverses the polarity at the XLR output
to help phase-align signals when this
output is mixed together with the
signal from a mic'd up stage amplifier.
The 180° switch can also help reduce
feedback on stage with acoustic
instruments.
The Ground Lift switch disconnects pin-1 audio ground on the XLR
output, which can help reduce hum and buzz that occurs due to ground
loops. If you encounter ground loop noise when the PZ-Pro is connected,
engaging the Ground Lift on each connected output can help alleviate
this issue.
The 1/4" Amp output on the PZ-Pro is provided for feeding
an on-stage amplifier or other instrument-level devices
such as amp modelers or additional effects pedals. This
output mirrors the Post EQ XLR output, so it includes all
EQ & Filter settings, as well as the FX Loop and Boost
controls when they are engaged. The Mute Footswitch
cuts signal to this output.
The Amp
output

THE TUNER OUT AND MUTE FOOTSWITCH

The PZ-Pro is equipped with a Mute Footswitch and a
dedicated buffered Tuner output for quiet on-stage tuning
without disrupting the performance. Use a standard 1/4"
TS instrument cable to connect a tuner pedal to the PZ-
Pro Tuner Out: This will send either Input-A or Input-B
directly to your tuner depending on which channel is active
(or both inputs if you have the A+B switch engaged).
The Mute Footswitch
Radial Engineering Ltd.
includes two
When the Mute Footswitch is engaged, the red LED
next to the switch illuminates and all of the PZ-Pro
outputs are turned off except the Tuner output. This
also allows you to connect a different instrument
to one of the PZ-Pro inputs without causing pops
through the PA or the stage amplifier.
12
Each XLR output has a dedicated
180° and Ground Lift switch ° °
The Tuner
output
PZ-Pro™
