- Page 1 Getting Started Manual ZD200 Differential Probe...
- Page 3 ZD200 Differential Probe Getting Started Manual January 2013...
- Page 4 Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, Teledyne LeCroy, at its option, will either repair or replace any assembly returned within its warranty period to the Customer Service Department or an authorized service center.
-
Page 5: Table Of Contents
Getting Started Manual TABLE OF CONTENTS Safety Instructions ................... 1 Symbols ......................1 Precautions .......................1 Operating Environment ..................2 Introduction ....................2 Key Benefits .......................3 Standard Accessories ..................3 Features and Accessories ................. 4 Probe Operation ....................6 Handling the Probe ...................6 Connecting the Probe to an Oscilloscope ............6 Operation with an Oscilloscope ................6 Auto Zero Operation ..................7 Connecting the Probe to the Test Circuit ............7... - Page 6 ZD200 Differential Probe Reference Material ..................16 Specifications ....................16 Certifications ....................16 Contact Teledyne LeCroy ................19 922182-00 Rev A...
-
Page 7: Safety Instructions
Getting Started Manual Safety Instructions This section contains instructions that must be observed to keep this oscilloscope accessory operating in a correct and safe condition. You are required to follow generally accepted safety procedures in addition to the precautions specified in this section. The overall safety of any system incorporating this accessory is the responsibility of the assembler of the system. -
Page 8: Operating Environment
WavePro, and WaveMaster series platforms with firmware version 6.4.1.x or later. With the ProBus interface, the ZD200 probe becomes an integral part of the oscilloscope. The probe can be controlled from the oscilloscope’s front panel. The oscilloscope provides power to the probe, so there is no need for a separate power supply or batteries. -
Page 9: Key Benefits

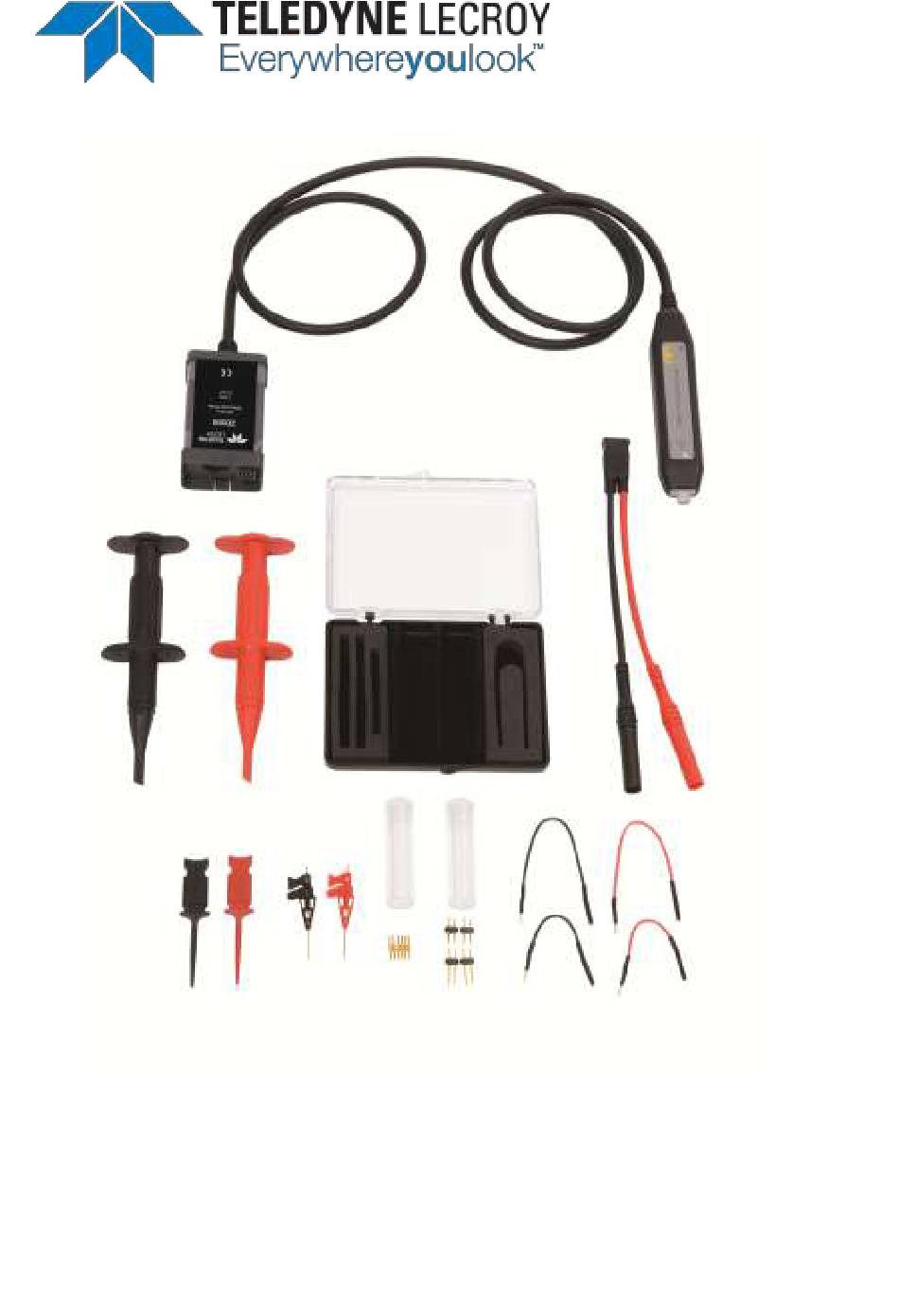

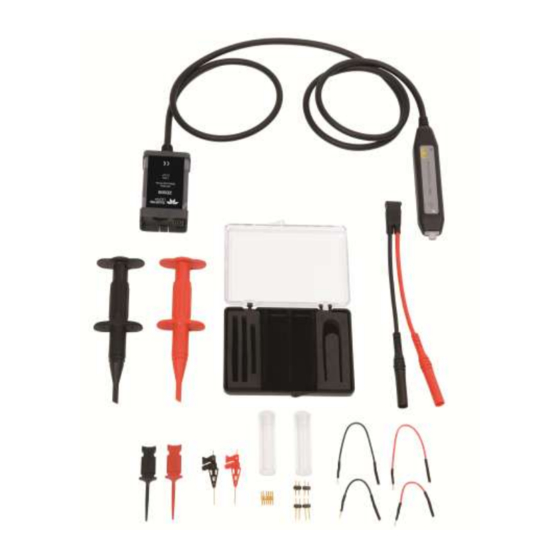

Complete accessory kit consisting of 3 sets of grabbers, one alligator clip, 2 sets of leads and 2 tip options for probing a variety of test points Standard Accessories The ZD200 probe is shipped with the following standard accessories: Standard Accessory Quantity... -
Page 10: Features And Accessories
ZD200 Differential Probe Features and Accessories The ZD200 probe is provided with numerous features and accessories to make probing and connecting to different test points easier than ever. The small, low mass probe head is designed for ease of use and high performance. - Page 11 Getting Started Manual Number Part Description Hook Clips The micro- and mini-grabbers are ideal for Micro-Grabbers connecting to small IC legs or pins very tightly spaced. The micro- and mini-grabbers are ideal for Micro IC Grabbers connecting to small IC legs or pins very tightly spaced.
-
Page 12: Probe Operation
Probe Operation Handling the Probe The ZD200 probe is a precision test instrument. Exercise care when handling and storing the probe. Always handle the probe by the probe body or compensation box. Avoid putting excessive strain or exposing the probe cable to sharp bends. -
Page 13: Auto Zero Operation
Using one of the available accessories makes the ZD200 probe with its small profile and low mass head ideally suited for applications in dense circuitry. -
Page 14: Calibration Interval
Adjustment Procedures are included in this manual.) Service Strategy The ZD200 probe utilizes fine pitch surface mount devices. It is therefore impractical to attempt to repair in the field. Defective probes must be returned to a Teledyne LeCroy service facility for diagnosis and exchange. Defective probes under warranty are repaired or replaced. -
Page 15: Replacement Parts
6. Mark the outside of the box with the shipping address given to you by the Teledyne LeCroy representative; be sure to add the following: ATTN: <RMA assigned by the Teledyne LeCroy representative>... -
Page 16: Performance Verification
ZD200 Differential Probe Performance Verification Performance Verification Overview This procedure can be used to verify the warranted characteristics of the ZD200 High Impedance Active Probe. The recommended calibration interval for the model ZD200 is one year. The complete performance verification procedure should be performed as the first step of annual calibration. - Page 17 Getting Started Manual List of Required Test Equipment. Description Minimum Requirement Test Equipment Examples Digital Oscilloscope ProBus Interface Teledyne LeCroy WaveRunner Xi, WavePro Windows-based with 7 Zi or WaveSurfer Xs software version 6.4.1.5 or later Digital Multimeter 4.5 digit Agilent Technologies...
-
Page 18: Preliminary Procedure
ZD200 Differential Probe Preliminary Procedure 1. Connect the ZD200 probe to the female end of the ProBus Extension Cable. Connect the male end of the ProBus Extension Cable to channel 1 of the oscilloscope. 2. Turn the oscilloscope on and allow at least 30 minutes warm-up time for the ZD200 and test equipment before performing the Verification Procedure. -
Page 19: Functional Check
Selecting File, Recall Setup... from the menu bar. b. Then touching the Recall Default button. 2. Touch the C1 trace label to open the C1 Vertical Adjust dialog. 3. Verify that the probe sensed (ZD200) is displayed as a dialog tab. Verification Procedure LF Attenuation Accuracy 1. -
Page 20: Performance Verification Test Record
ZD200 Differential Probe 11. Connect the signal generator output to the ZD200 inputs using the BNC to mini-grabber cable. 12. Read the voltage from the DMM and record this value on the test data sheet. 13. Record the calculated error to two decimal places (±0.xx%) as "Gain Error"... - Page 21 Getting Started Manual Items Tested Item Serial Number Date Technician ZD200 Equipment Used Calibration Due Instrument Model Serial Number Date Oscilloscope Digital Multimeter Function Generator NOTE: The function generator used in this Performance Verification Procedure is used for making relative measurements. The output of the generator is measured with a DMM or oscilloscope in this procedure.
-
Page 22: Reference Material
ZD200 Differential Probe Reference Material Specifications NOTE: Specifications are subject to change without notice. Please refer to the Teledyne LeCroy website at teledynelecroy.com for detailed specification information. Certifications This section contains the ZD200 probe’s Electromagnetic Compatibility (EMC), Safety and Environmental certifications. - Page 23 The probe is subject to disposal and recycling regulations that vary by country and region. Many countries prohibit the disposal of waste electronic equipment in standard waste receptacles. For more information about proper disposal and recycling of your Teledyne LeCroy product, please visit teledynelecroy.com/recycle. 922182-00 Rev A...
- Page 24 ZD200 Differential Probe ESTRICTION OF AZARDOUS UBSTANCES This product has been classified as Industrial Monitoring and Control Equipment, and is outside the scope of the 2011/65/EU RoHS Directive (Exempt until July 2017, per Article 4). ISO Certification Manufactured under an ISO 9000 Registered Quality Management System. Visit teledynelecroy.com to view the certificate.
-
Page 25: Contact Teledyne Lecroy
Ph: 800-909-7112 / 408-653-1260 customersupport@teledynelecroy.com psgsupport@teledynelecroy.com European Headquarters Singapore, Oscillosocpes Teledyne LeCroy SA Teledyne LeCroy Singapore Pte Ltd. 4, Rue Moïse Marcinhes Blk 750C Chai Chee Road #02-08 Case postale 341 Technopark @ Chai Chee 1217 Meyrin 1 Singapore 469003... - Page 26 ZD200 Differential Probe 922182-00 Rev A...
