Follow this procedure to apply the frames:
1) Place the booth on the fixed place.
2) With the plugging structures, stand against the chosen anchoring area on the booth (fig.10)
3) At the same time drill the booth's frame and sheet, with an appropriate drill;
4) Screw in self-tapping screws with of suitable size;
5) Tighten the screws firmly.

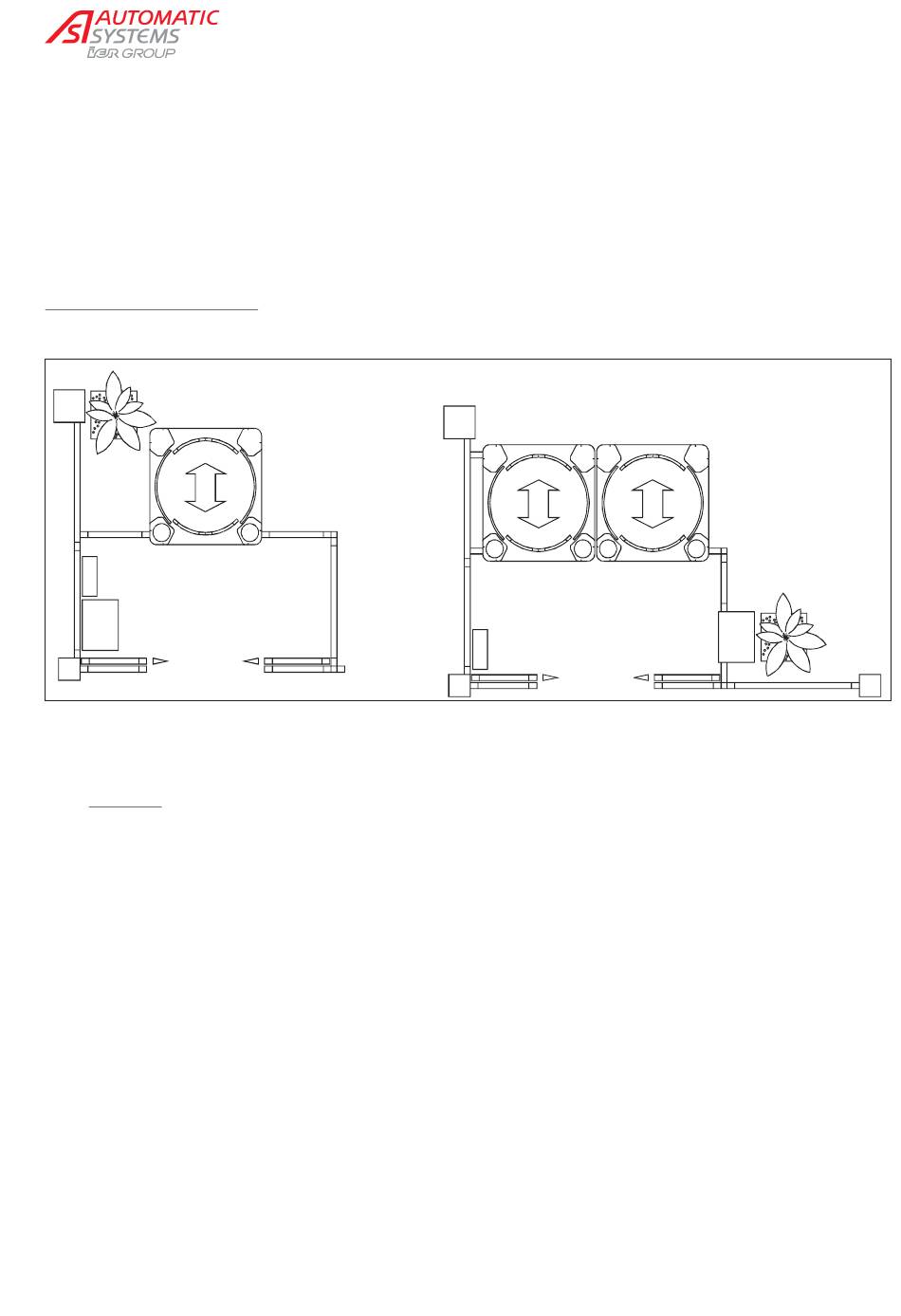

FIGURE 13 EXAMPLES OF INSTALLATION
Examples of installation.
Figure 13 examples of installation

3.6. Wiring

1. Close to the booth's housing, make an electric connector box powered by a cable connected to the bank's
fuse box. Connect the booth with power cable 3x2.5 from the clamps to the power source box. We
recommend you protect the power supply cable with a 15 A Id = 0.03 A differential switch. Make sure that the
grounding is good.
