Lateral Frames Application - Automatic Systems ClearLock 645 User Manual

3. Secure the booth to the ground, so that it cannot move using the stopping feet (1-2-3-4) placed under the

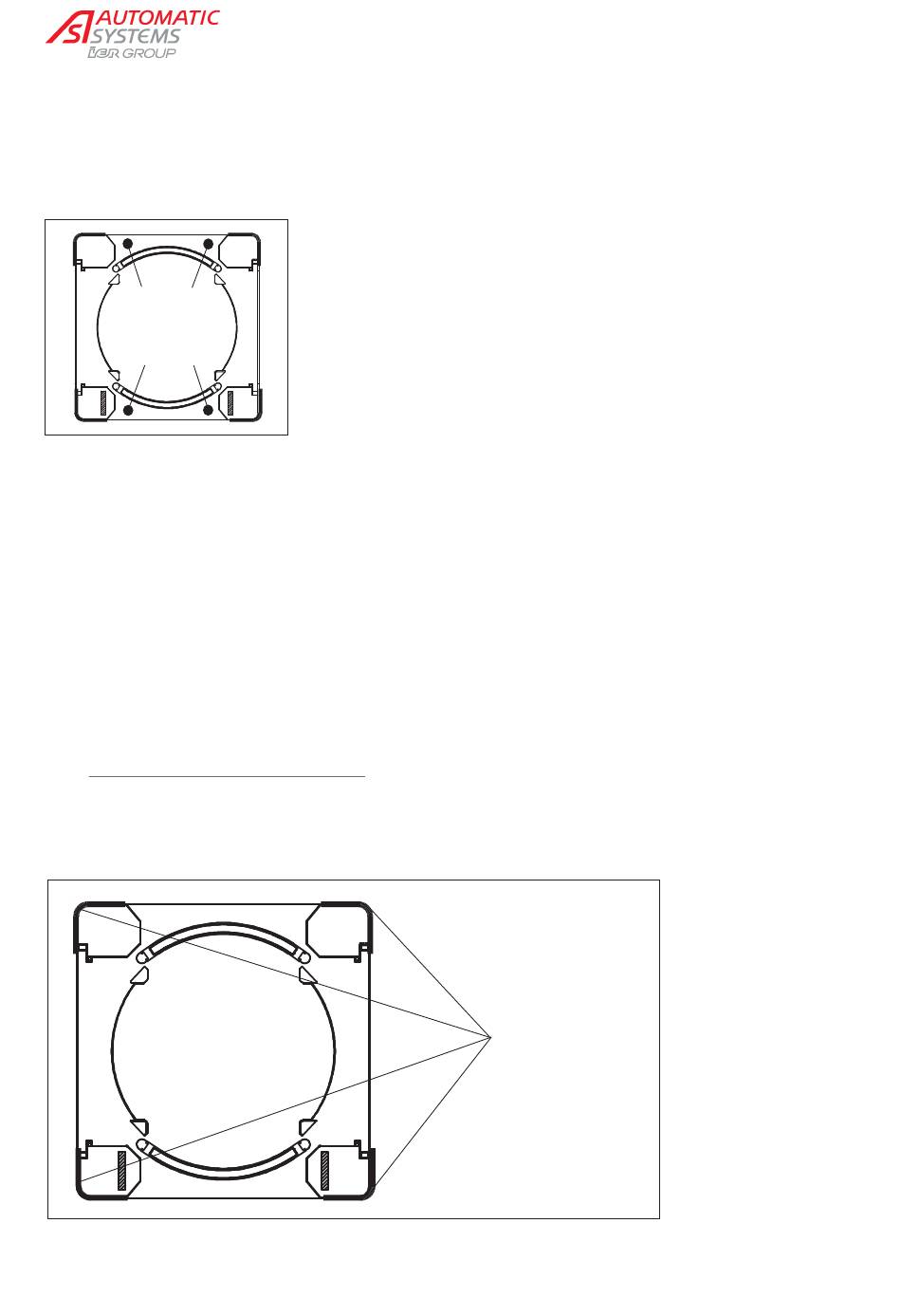

FIGURE 8 STOPPING FEET
rubber floor (fig.8). Stability is necessary for the booth to work properly.
Figure 8 stopping feet
1 2
4
3
4. Attach any possible fastenings to the booth's structure, paying attention to the screws, which cannot be
inserted for more than 2 cm. Do not make holes in the plastic and glassy parts of the structure. Do not
make holes near the glass. Keep away from the edge of the lateral glass at least 3 cm; do not obstruct the
inspection doors with plugging structures.
5. Should there be 2 or more booths coupled, determine the right and the left one. Special information is shown
on the booth's external side, under the package. It is important to respect the position directions according to
the installation environment.

3.5. Lateral frames application

FIGURE 10 LATERAL FRAMES APPLICATION
To anchor the booth to the plugging structures, see the lower figure (fig.10).
Figure 10 lateral frames application
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose other
than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic Systems.
The document is subject to change without notice.
ClearLock 645
-UM-EN
Area where the
booth can be
anchored to the
plugging structure
p. 15 / 28
