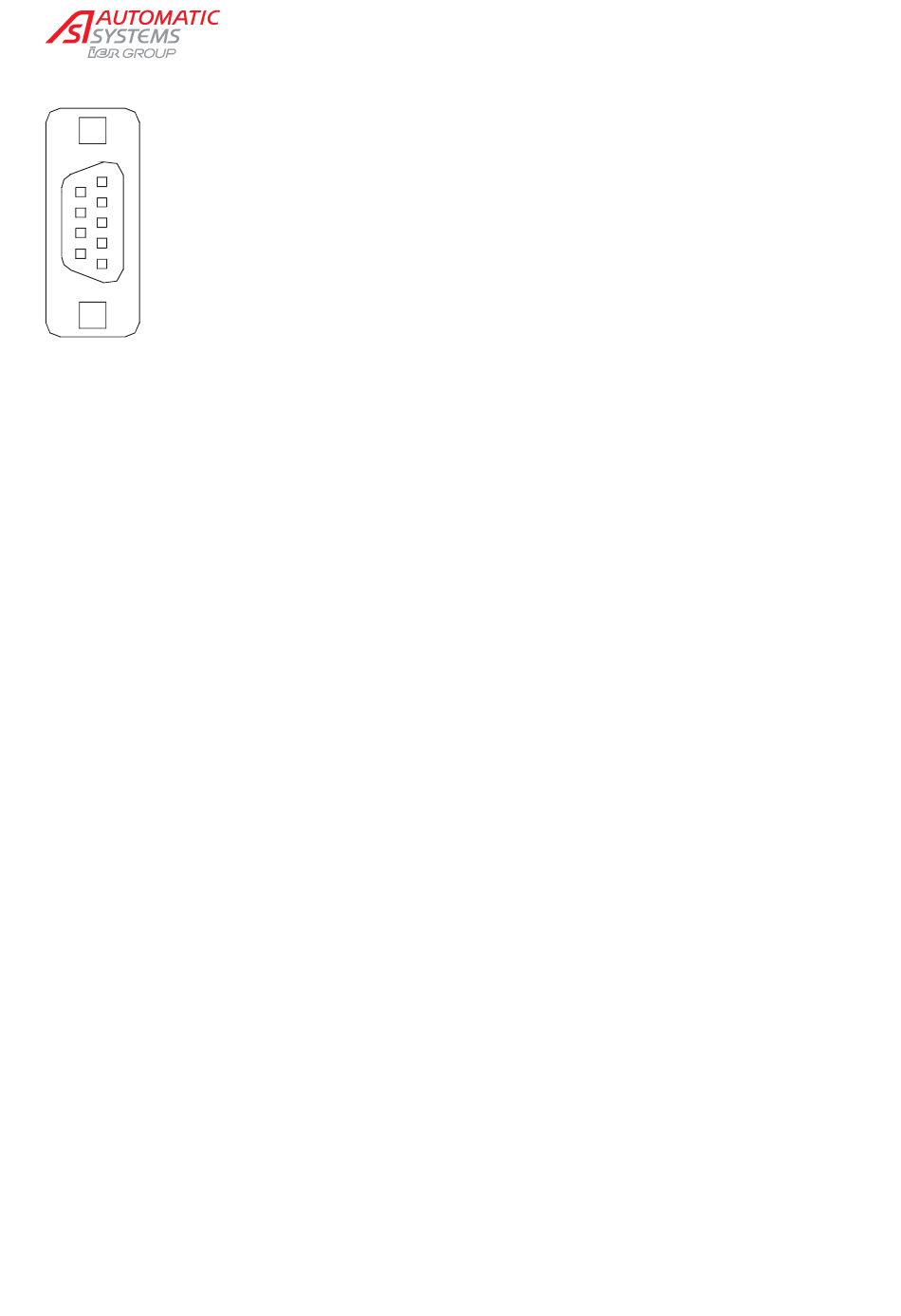

Automatic Systems ClearLock 645 Technical Manual page 37

5
9
4
8
3
7
2
6
1
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose other
than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic Systems.
The document is subject to change without notice.
ClearLock 645
-TM-EN
LOADING CELL MODEL. GEFRAN
1 White
2 Empty
3 Red
4 Yellow
5 Green
6 Empty
7 Screen Wire
LOADING CELL MODEL. SAIMA or NBC
1 Red
2 White
3 Yellow
4 Green
5 Blue
6 Black
7 Screen Wire
LOADING CELL MODEL. TEDEA
1 Red
2 Blue
3 Green
4 White
5 Black
6 Brown
7 Screen Wire
LOADING CELL MODEL. METIOR
1 Red
2 Blue
3 Green
4 Grey
5 Black
6 Yellow
7 Screen Wire
