5. CHANGING COMPONENTS

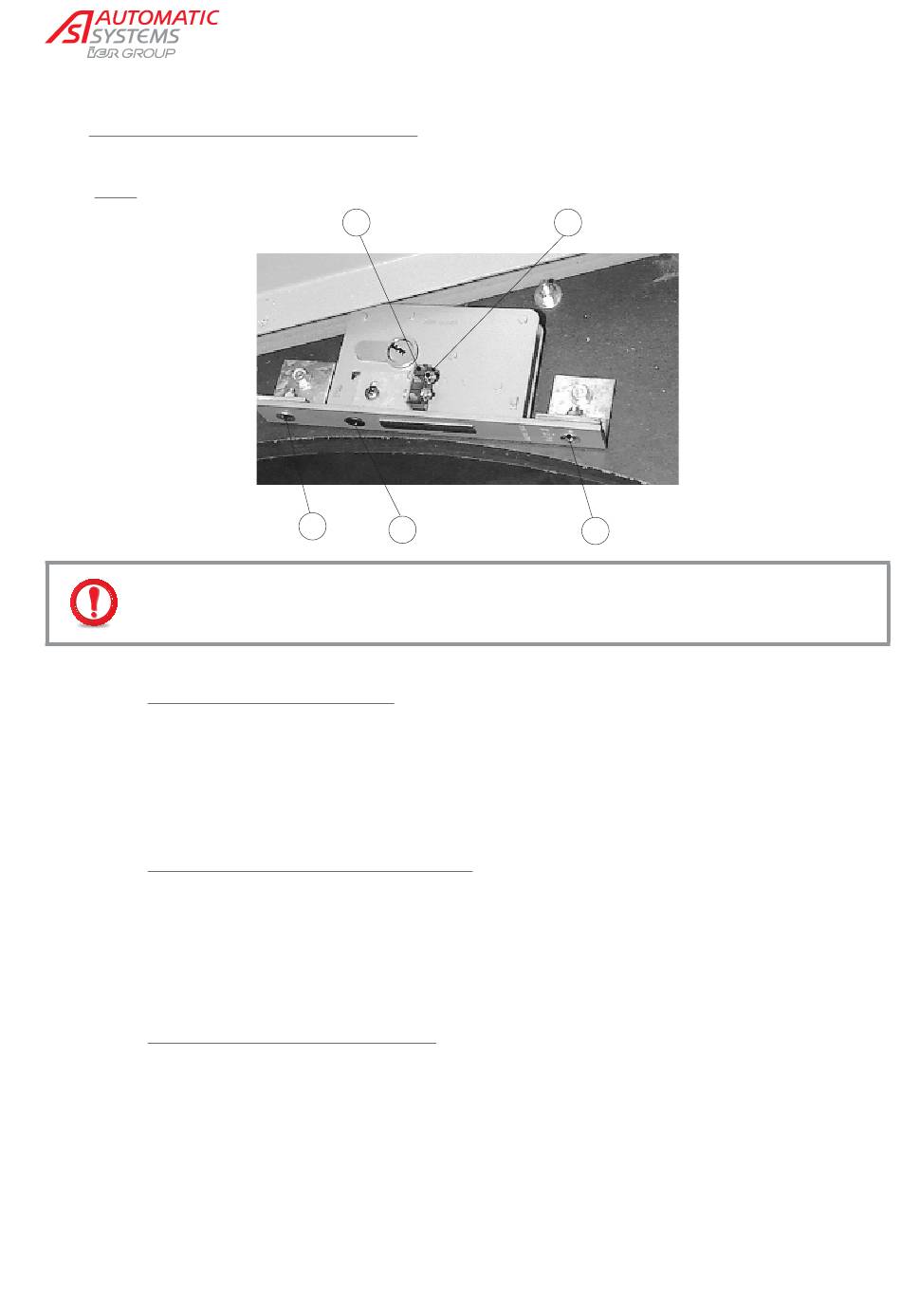

5.1. Lock

WARNING: Turn off the booth before you do any maintenance using the single board's ON/OFF
switch and open the door manually.
5.1.1. SUBSTITUTING THE CYLINDER
1) Untighten the screw (1).
2) Being a security cylinder rotate the key from its position only a few degrees just enough
to allow the cylinder to come out.
3) Take out the cylinder.
5.1.2. SUBSTITUTING THE MECHANICAL LOCK
1) Untighten the screw (1).
2) Remove the cylinder as described on top.
3) Unscrew the screws (2).
4) Remove the mechanical lock.
5.1.3. SUBSTITUTING THE MICROSWITCH
1) Untighten the screw (4).
2) Remove the micro switch (3) and substitute.
3) Screw in making sure not to damage the micro Switch.
4) Activate the lock with the key to verify that the micro switch is working.
5) If the lock does not work properly un-tighten the screws (4) and change
the micro switch's inclination.
