Automatic Systems ClearLock 645 Technical Manual page 20

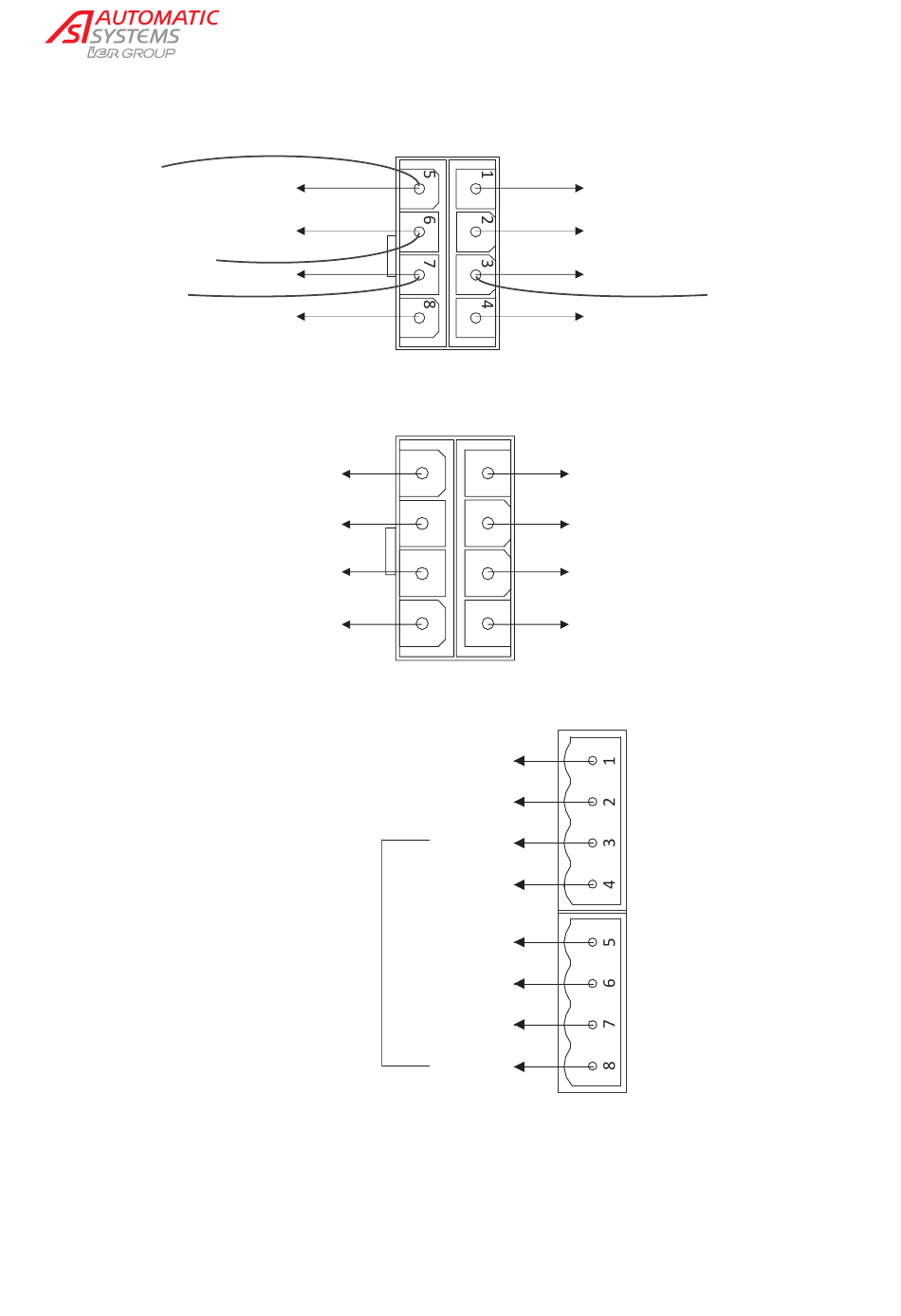

3.4.1.6. Ceiling light
Green PORTER
(INTER. BUTTON) V+
Yellow PORTER
White PORTER
3.4.1.7. Power supply
BATTERY POWER CHECK
POWER PRESENCE
3.4.1.8. Metal Detector
Power supply
for emergency
exit EMPLC1
