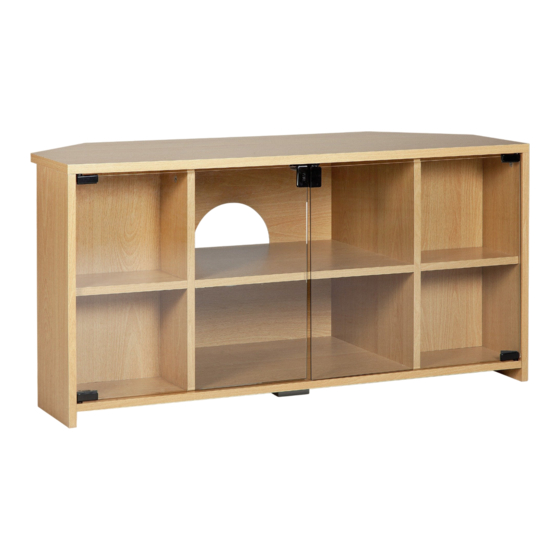

Chequer Corner TV Unit
Assembly Instructions
Dimensions
Width - 100cm
Depth - 40.5cm
Height - 49.5cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Please keep for future reference
-
-
399/9015
Version 1 Date: 21/04/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Chequer 399/901
Summary of Contents for Argos Chequer 399/901
- Page 1 Width - 100cm Depth - 40.5cm Height - 49.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 1 Date: 21/04/15...
-
Page 2: Care And Maintenance
Manufacturer or Supplier. • Imported by: • Batch No. & Date of manufacturer: Please refer to the label stick Argos Ltd. on product back panel. 489-499 Avebury Boulevard. • Type of glass used: 5mm toughened glass Saxon Gate West. - Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for guidance only Top panel (100 x 40cm) Large back panel (50.3 x 45.7cm)
- Page 4 Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 30mm Dowel x 12 50mm Screw x 8 39mm Locking pin x 10 (This screw is included in...
- Page 5 Assembly Instructions Step 1 Attaching the middle shelf panel Insert Dowels into Unfinished back edge the Middle right panel and Middle left panel Use Screws to fix the Middle right panel Middle left panel onto the Middle shelf panel Unfinished back surface Insert Dowels into Shelf panel...
- Page 6 Assembly Instructions Step 2 Attaching bottom panel Use Screws to fix Bottom panel onto the Middle right panel Middle left panel Step 3 Attaching right panel and left panel Insert Dowels Screw Locking pins into the Right panel Left panel Insert Locking pins Note: as far as shown.
- Page 7 Assembly Instructions Step 4 Attaching small back panels Unfinished back surface Slide small back panels into the unit. Step 5 Attaching top panel Use Screws to fix the Door magnet onto the Top panel Insert Hinge plugs into the Top panel Screw Locking pins(6 pcs) into the Top panel Insert Locking pins...
- Page 8 Assembly Instructions Step continued Carefully locate the Top panel onto the unit. Insert 6 Locking nuts into the unit. Use a screwdriver to turn Locking nuts clockwise to lock. Insert Hinge plugs into the Bottom panel Step 6 Fixing large back panel Unfinished back surface Attach large back panel...
- Page 9 Assembly Instructions Step 7 Fitting the glass doors Tear off the protective backing from the Foam and Small foam Carefully stick the Foam pad onto the Glass door so that it wraps over Glass door. Locate the Door push over the top of the Foam pad and Glass door.
- Page 10 Note: to ask someone to help you at this stage. With help, place the unit in the intended position. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
