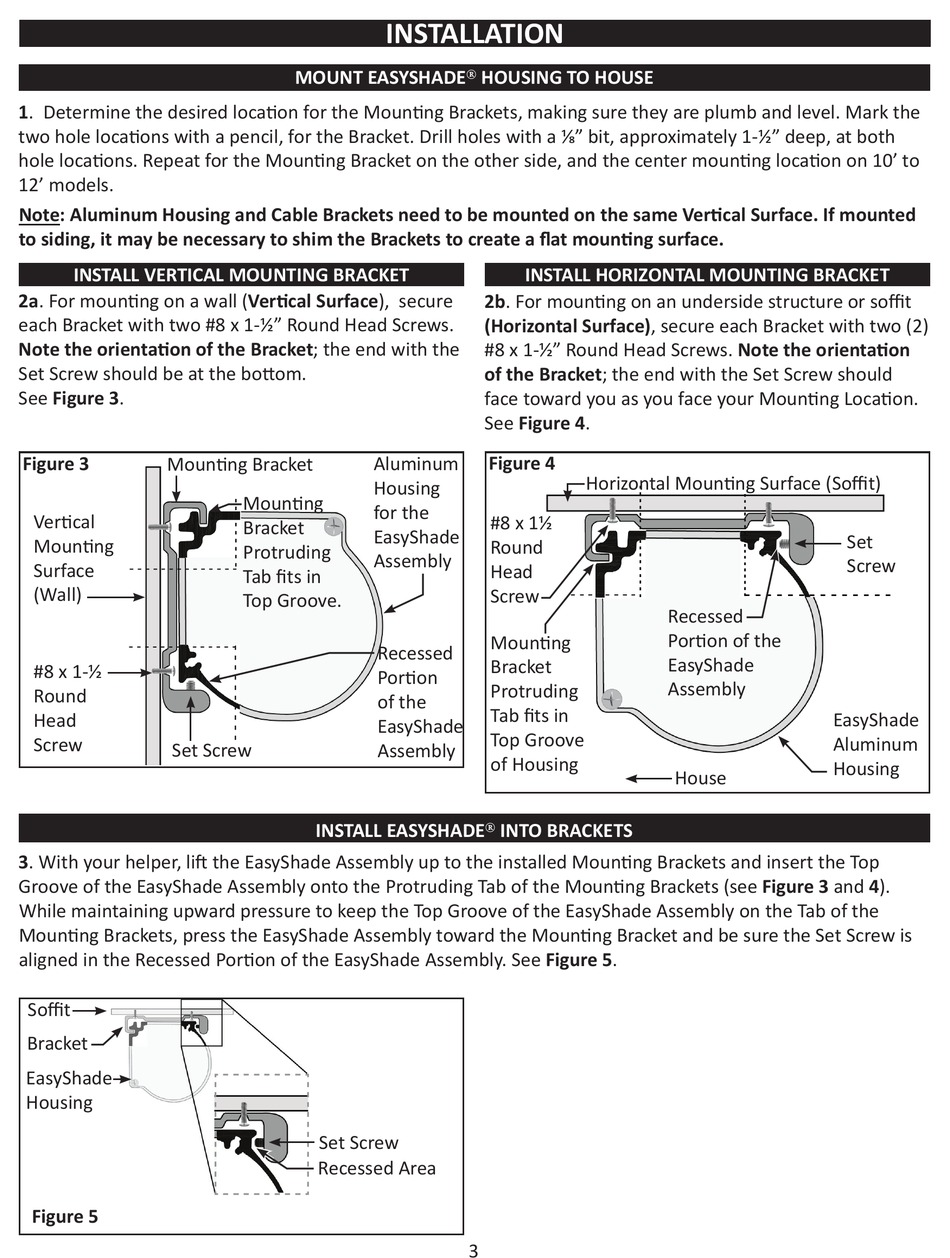

Installation; Vertical Mounting (Figure 3); Horizontal Mounting (Figure 4) - SunSetter EasyShade Owner’s Manual & Installation Instruction

1. Determine the desired location for the Mounting Brackets, making sure they are plumb and level. Mark the
two hole locations with a pencil, for the Bracket. Drill holes with a 1/8" bit, approximately 1-½" deep, at both
hole locations. Repeat for the Mounting Bracket on the other side, and the center mounting location on 10' to
12' models.
Note: Aluminum Housing and Cable Brackets need to be mounted on the same Vertical Surface. If mounted
to siding, it may be necessary to shim the Brackets to create a flat mounting surface.
INSTALL VERTICAL MOUNTING BRACKET
2a. For mounting on a wall (Vertical Surface), secure
each Bracket with two #8 x 1-½" Round Head Screws.
Note the orientation of the Bracket; the end with the
Set Screw should be at the bottom.
See Figure 3.
Figure 3
Mounting Bracket
Vertical
Mounting
Surface
(Wall)
#8 x 1-1/2
Round
Head
Screw
Set Screw
3. With your helper, lift the EasyShade Assembly up to the installed Mounting Brackets and insert the Top
Groove of the EasyShade Assembly onto the Protruding Tab of the Mounting Brackets (see Figure 3 and 4).
While maintaining upward pressure to keep the Top Groove of the EasyShade Assembly on the Tab of the
Mounting Brackets, press the EasyShade Assembly toward the Mounting Bracket and be sure the Set Screw is
aligned in the Recessed Portion of the EasyShade Assembly. See Figure 5.
Soffit
Bracket
EasyShade
Housing
Figure 5

INSTALLATION

MOUNT EASYSHADE
Aluminum
Housing
Mounting
for the
Bracket
EasyShade
Protruding
Assembly
Tab fits in
Top Groove.
Recessed
Portion
of the
EasyShade
Assembly
INSTALL EASYSHADE
Set Screw
Recessed Area
HOUSING TO HOUSE

INSTALL HORIZONTAL MOUNTING BRACKET
2b. For mounting on an underside structure or soffit
(Horizontal Surface), secure each Bracket with two (2)
#8 x 1-1/2" Round Head Screws. Note the orientation
of the Bracket; the end with the Set Screw should
face toward you as you face your Mounting Location.
See Figure 4.
Figure 4
Horizontal Mounting Surface (Soffit)
#8 x 11/2
Round
Head
Screw
Mounting
Bracket
Protruding
Tab fits in
Top Groove
of Housing
INTO BRACKETS

3
Set
Screw
Recessed
Portion of the
EasyShade
Assembly
EasyShade
Aluminum
Housing
House
