PROGRAMMING INSTRUCTIONS - MULTI CHANNEL REMOTE TRANSMITTER
Note: Each EasyShade operates on Channel 1 of the Remote that came with it.
Every Channel on every Remote Transmitter is different, but you can mix and match them.

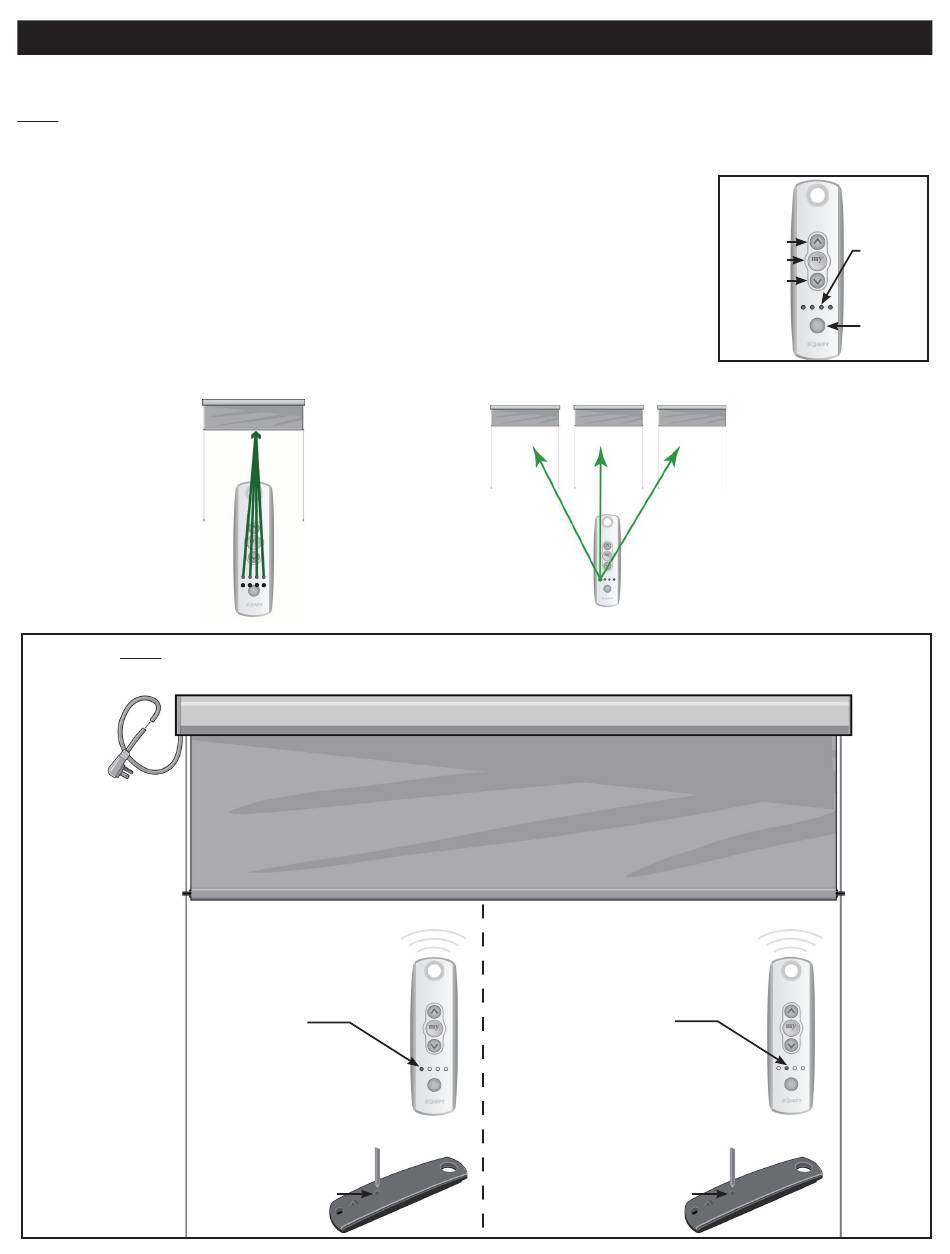

How to use the Multi Channel Remote Transmitter (see Figure 27):
• To identify the currently selected Channel, press and release the Channel
Selector Button once. The currently selected Channel Indicator Light will blink.
• To select the next Channel, press and release the Channel Selector Button while
the Channel Indicator Light blinks. The next Channel is selected and that Channel
Indicator Light blinks. All 4 lights blinking means Channel 5 is selected.
How to program the EasyShade to work with any Channel (see Figures 28, 29 & 30):
One EasyShade can
run on any Channel.
See Figure 28.
Add each Channel to
the EasyShade, using
STEP 1, then STEP 2 in
Figure 30.
Figure 28
Figure 30 Note: It is recommended all EasyShades be unplugged from the power source except for the
one EasyShade being programmed. This simplifies the process and reduces errors.
Select a Channel that
currently controls
the EasyShade being
programmed.
Hold the Programming
button on this remote
until the EasyShade jogs
or moves a little bit.
APPENDIX C
One Channel can
run multiple
EasyShades. See
Figure 29.
Add that Channel
to each EasyShade,
using STEP 1, then
STEP 2 in Figure 30.
STEP 1
Programming
button
Figure 29
STEP 2
Select a Channel to
ADD to, or DELETE from
the EasyShade being
programmed.
Hold the Programming
button on this remote
until the EasyShade jogs
or moves a little bit.
Programming
button
14
Figure 27
Channel
Indicator
UP
Lights
my/STOP
DOWN
Channel
Selector
Button
Unwanted Channels can
be removed from an
EasyShade using STEP 1,
then STEP 2 in Figure 30.
