SunSetter EasyShade Owner’s Manual & Installation Instruction page 2

12 Ft. Plug-in
Power Cord,
Left or Right
side option.
Cable
Guide
Hole
Guiding
Cable
Cable
Bracket

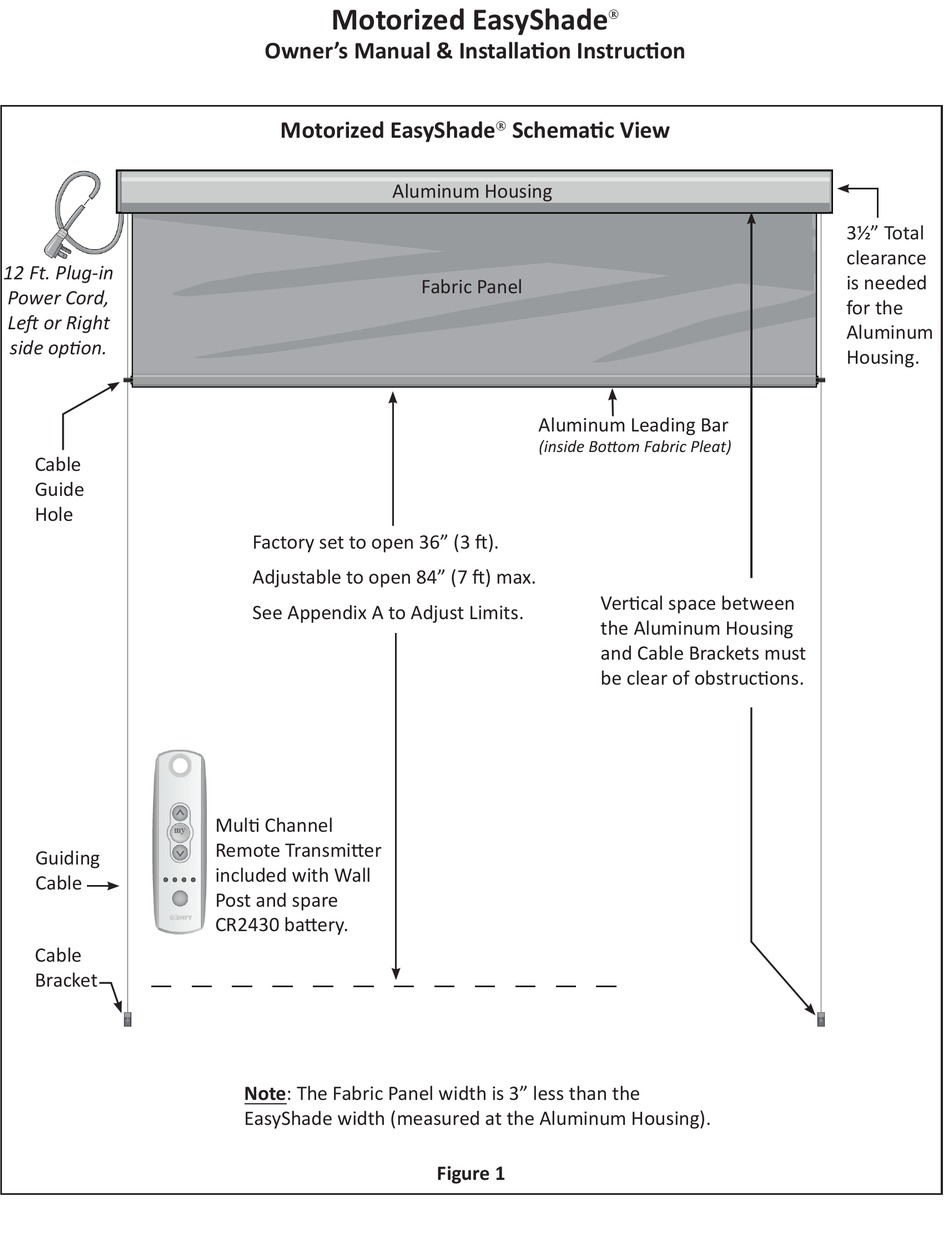

Motorized EasyShade
Owner's Manual & Installation Instruction
Motorized EasyShade
Aluminum Housing
Factory set to open 36" (3 ft).
Adjustable to open 84" (7 ft) max.
See Appendix A to Adjust Limits.
Multi Channel
Remote Transmitter
included with Wall
Post and spare
CR2430 battery.
Note: The Fabric Panel width is 3" less than the
EasyShade width (measured at the Aluminum Housing).
Schematic View

Fabric Panel
Aluminum Leading Bar
(inside Bottom Fabric Pleat)
Vertical space between
the Aluminum Housing
and Cable Brackets must
be clear of obstructions.
Figure 1
ii

31/2" Total
clearance
is needed
for the
Aluminum
Housing.
