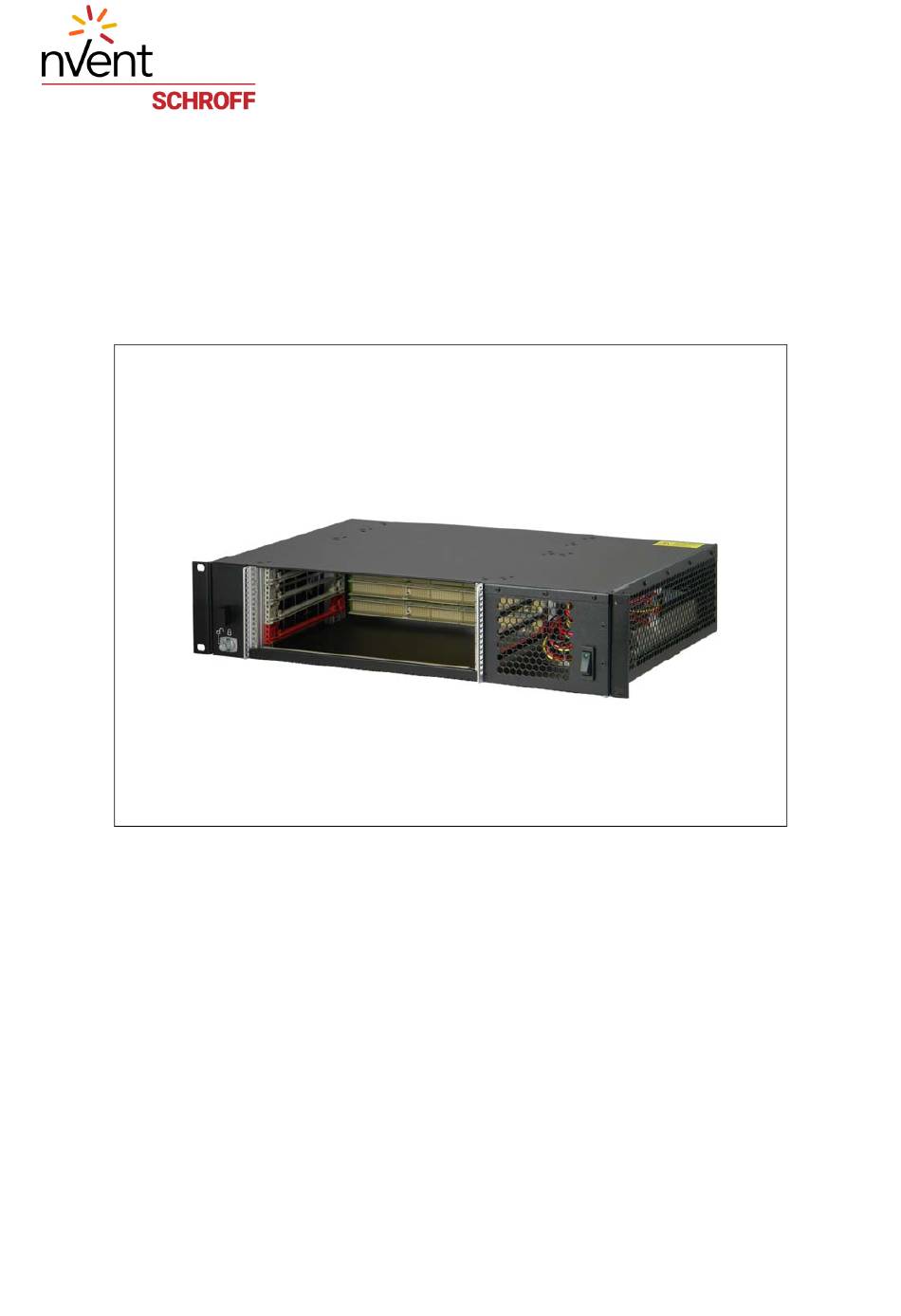

- Page 1 CPCI System Subrack 2 U User’s Manual Product No.: 24579-081 April 14, 2011 Doc-No: 63972-233_R1.1...
- Page 2 Rev. Date updated Change R1.0 January 14, 2008 Initial Release R1.1 April 18, 2011 Fan Tray with mini compression latch Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints.
-
Page 3: Table Of Contents
CPCI System Subrack 2 U 24579-081 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 Product Definition..................... 3 References and Architecture Specifications ............3 Subrack System Overview................... - Page 4 CPCI System Subrack 2 U 24579-081 www.schroff.biz R1.1, April 18, 2011...
-
Page 5: Safety
CPCI System Subrack 2 U Safety 24579-081 1 Safety 1.1 Intended Application The CompactPCI (CPCI) system subrack, described in this manual, is intended as a platform for a microcomputer system based on the CompactPCI Standard PICMG 2.0 Rev.3. The CPCI system subracks are designed for protection class IP 20 and can be used only in the resp. -
Page 6: Safety Instructions
CPCI System Subrack 2 U Safety 24579-081 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of electrical voltages and the safety precautions to avoid accidents before starting to work with parts that carry dangerous voltages. -
Page 7: Product Definition

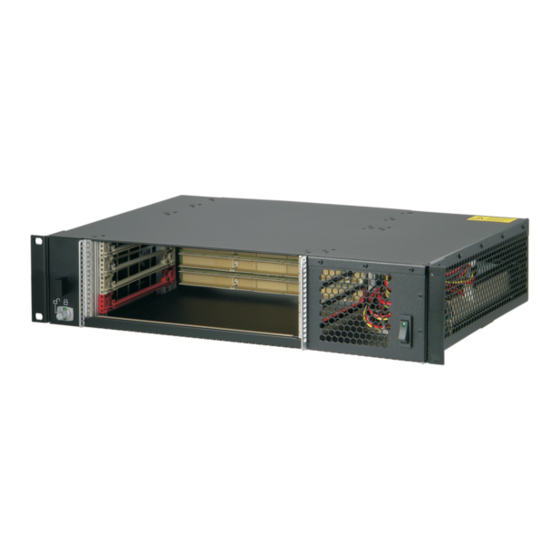

CPCI System Subrack 2 U Product Definition 24579-081 2 Product Definition The Schroff CPCI system subrack consists of: • A shielded 19“ subrack with front and rear card cage for 6 U boards according to CompactPCI Standard PICMG 2.0 Rev.3 •... -
Page 8: Subrack
CPCI System Subrack 2 U Product Definition 24579-081 2.3 Subrack The 2 U 19” subrack is based on the Schroff europacPRO system with EMC shielding. The card cage enables the horizontal assembly of 4 CPCI front boards (6 U, 4 HP, 160 mm deep) and 4 Rear I/O Boards (6 U, 4 HP, 80 mm deep). -
Page 9: Power Supply
CPCI System Subrack 2 U Product Definition 24579-081 2.5 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a AC power cable that is approved for use in your country. -
Page 10: Atx Power Supply
CPCI System Subrack 2 U Product Definition 24579-081 2.5.2 ATX Power Supply Figure 2: ATX Power Supply 10006854 ATX Power Supply AC Connector (IEC320-C14) AC Switch DC Switch Table 1: Techn. Data ATX Power Supply Input voltage 90...264 VAC, 120...380 VDC / active PFC Input frequency 47...63 Hz Input current... -
Page 11: Cooling
CPCI System Subrack 2 U Product Definition 24579-081 2.6 Cooling Figure 3: Fan Tray 12311810 The CPCI boards are cooled by forced air convection through two 12 VDC axial fans (109 m³/h (64 cfm) each). The operating temperature is from 0°C to 50°C, but note that the power supply starts derating at 50°C. - Page 12 CPCI System Subrack 2 U Product Definition 24579-081 Figure 4: Airflow 12308828 Caution! To maintain proper airflow, all open slots must be covered with filler panels. The filler panel should include an airflow baffle that extends to backplane. www.schroff.biz R1.1, April 18, 2011...
-
Page 13: Installation
CPCI System Subrack 2 U Installation 24579-081 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •... -
Page 14: Rack-Mounting
CPCI System Subrack 2 U Installation 24579-081 3.2 Rack-Mounting This subrack system can be installed in 19“ equipment racks. The rack must be accessible from the front and rear for equipment installation. Mounting Instructions: • Ensure that the rack is constructed to support the weight and dimensions of the system. -
Page 15: Service
CPCI System Subrack 2 U Service 24579-081 4 Service 4.1 Technical support and Return for Service Assistance We generally recommend to return the complete subrack system. For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. -
Page 16: Scope Of Delivery
CPCI System Subrack 2 U Service 24579-081 4.3 Scope of Delivery Quantity Description 19” subrack, shielded, black powder coated (RAL9005) CPCI backplane (PICMG2.0 R.3.0), 4 slot 6 U Front card cage for max. 4 boards 6 U 160 mm deep IEEE guide rails inc. -
Page 17: Technical Data
CPCI System Subrack 2 U Technical Data 24579-081 5 Technical Data Table 2: Technical Data Dimensions Height 88.10 mm (2 U) Width 482.80 mm (19“) Depth (Card cage) 275 mm Depth (Overall with handles) 309 mm Weight Completely assembled 5 kg Power Supply Input Voltage 100 VAC bis 240 VAC... -
Page 18: Dimensions
CPCI System Subrack 2 U Dimensions 24579-081 6 Dimensions Figure 5: Dimensions www.schroff.biz R1.1, April 18, 2011... - Page 20 SCHROFF GMBH www.schroff.biz Langenalberstr. 96-100 Tel.: + 49 (0) 7082 794-0 Fax: +49 (0) 7082 794-200 D-75334 Straubenhardt...
