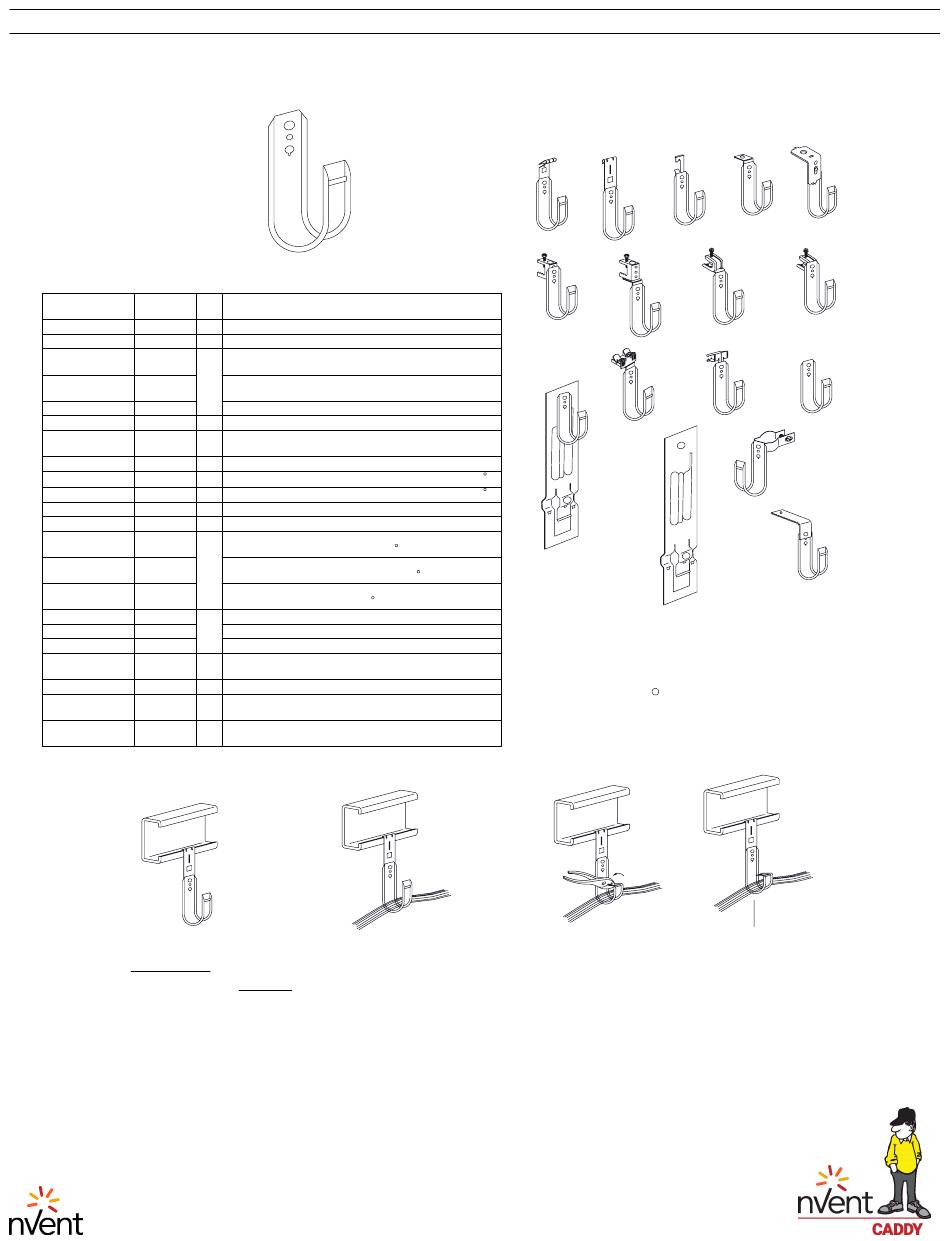

nvent CAT12 Instruction Sheet

INSTRUCTION SHEET


Note: Do not exceed recommended cable
quantities per fastener
Article
Part Number
Number
CAT12AF14 181840
CAT12VF14 181800
CAT124Z34 181240
CAT126Z34 181270
CAT128Z34 N/A
CAT12AB 181900
CAT12CPNA N/A
CAT12BC N/A
CAT12BCB N/A
CAT12BC200B 181430
CAT12BC200 181400
CAT12TS 181200
CAT1224 181650
CAT1258 181660
CAT12912 181670
CAT1224SM 181510
CAT1258SM 181520
CAT12912SM 181530
CAT12 181100
CATTS 181170
CAT12CD1B 181950
CAT12AFAB3 N/A

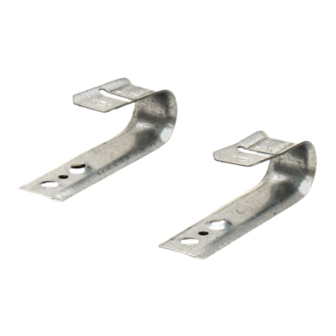

The nVent CADDY CAT12 is equipped with a bend back
tab to provide contact free containment for
sensitive high performance cables.
WARNING:
1. nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
www.nVent.com and from your nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and/or death, and void your warranty.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.
TECHNICAL SUPPORT:
www.nVent.com
Fig. Description
1 1/16" [2] thru 1/4" [6] Z Purlin
2 1/16" [2] thru 1/4" [6] vertical flange
#12 thru 1/4" [6] wire, plain or threaded rod
& 1/8" [3] thru 3/8" [10] flange
3 3/8" [10] plain ot threaded rod & 3/8" [10]
thru 9/16" [10] flange
1/2" [13] & 5/8" [16] threaded rod
4 Angle Bracket
Angle bracket with pin driven mounting
16
hole
6 1/8" [3] thru 1/2" [13] flange
7 1/8" [3] thru 1/2" [13] flange, rotates 360
8 1/8" [3] thru 5/8" [16] flange, rotates 360
9 1/8" [3] thru 5/8" [16] flange
10 Support from Tee Grid
1/8" [3] thru 1/4" [6] flange, bottom mount
rotates 360
5/16" [8] thru 1/2" [13] flange, bottom
11
mount rotates 360
1/2" thru 3/4" flange, bottom mount rotates
360
1/8" [3] thru 1/4" [6] flange
12 5/16" [8] thru 1/2" [13] flange
1/2" [13] thru 3/4" [19] B1 flange
Hold 4-pair UTP cables: 16 Cat. 5/5e or 16
13
fiber optic cables or 10 Cat. 6
14 Support from Tee Grid
J-Hook to 3/4" & 1" round or square
15
pedestal
Angle bracket with pin driven mounting
5
hole
1. Install the
nVent CADDY CAT12
support clip.
2. Place cables
in the J-hook.
CFS246_N
Pre-Riveted Factory Assemblies
Fig 1 Fig 2
Fig 6
Fig 11
Fig 10
For use with Data Communication Cables only.
The nVent CADDY CAT12 support clip holds 4-pair UTP cables: 16 Cat.5/5e or 16 fiber optic
cables or 10 Cat.6.
Provides strain relief and routes cables so bend radius conforms to EIA/TIA-568-A standard.
Complies with UL,cUL, and NEC
Complies with 1997 EIA/TIA 569-A.
3. (Optional) Using
pliers bend top
portion of hook
back at slot.
1 OF 4
© 1997-2019 nVent All Rights Reserved
