nvent CADDY Colorado Jim CJ6 Instruction Sheet

INSTRUCTION SHEET
CJ6 & CJ6S

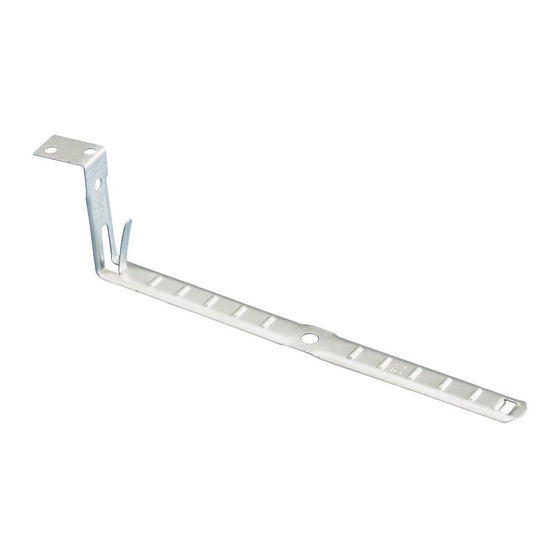

Colorado Jim Cable Support
CJ6
CJ6S
Hat Channel
WARNING:
1. nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
www.nVent.com and from your nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and/or death, and void your warranty.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, CADDY, ERICO CADWELD, ERICO CRITEC, ERICO, ERIFLEX, and LENTON are owned by nVent or its global affiliates. All
other trademarks are the property of their respective owners. nVent reserves the right to change specifications without prior
notice.
TECHNICAL SUPPORT:
www.nVent.com
CJ6S
Furring Strip
CFS206_E 1 OF 2
Sizing Chart
No Load Rating, For Positioning Only.
Cables
Part Cable Cable
Per
Number Type Size
Fastener
Romex and 14-2, 12-2,
Non-Metallic
10-2, 14-3,
Sheathed
12-3 and 6 MAX.
Cable
10-3
w/ground
8-2 and 6-2
4 MAX.
w/ground
CJ6
Metal Clad 14-2, 12-2,
10-2, 14-3,
(MC) Cable
12-3, 10-3,
14-4, 12-4,
4 MAX.
and 10-4
w/ground
Armored 14-2, 12-2,
10-2, 8-2,
Cable (AC)
14-3, 12-3,
10-3, 14-4,
4 MAX.
12-4 and
CJ6S
10-4 w/ground
Flexible 5/16, 3/8
4 MAX.
Conduit (BX)
Application
Ref. NEC 1990 Article 300-4d .
Note:
The CJ6S Fastener is not approved to satisfy NEC 1990
Article 300-4d in all states. Contact your local inspector.
CJ6
Metal Stud
© 1998-2018 nVent All Rights Reserved
Box/Case
Quantity
Description
To attach
Romex
Non-Metallic
Sheathed
Cable, AC,
BX, and MC
Cable to
Wood or
Metal Stud
100/600
Furring Strip
and Hat
Channel
Wood Stud
