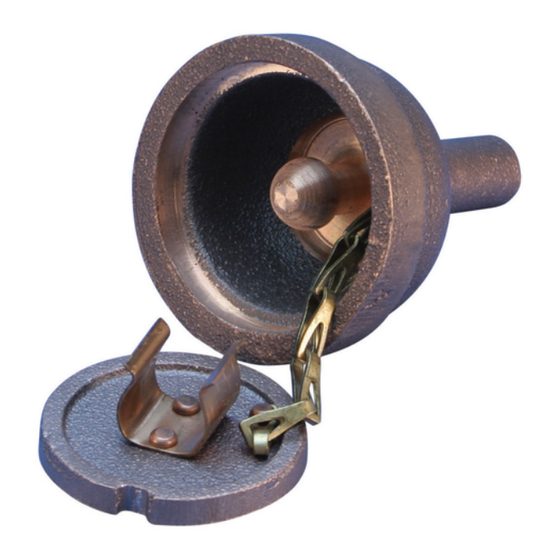

AIRCRAFT GROUNDING RECEPTACLE WITH BALL STUD, 4 1/2", REMOVABLE
5/8" BALL STUD
CATALOG NUMBER
B165R
FEATURES
Castings for use in static grounding systems of refueling areas
Easily connected to grounding system conductor and/or ground rods
Designed for simple installation with flush paved surfaces
Compatible with nVent ERICO Cadweld connections
PRODUCT ATTRIBUTES
Material: Phosphor Bronze
Diameter 1: 2 3/4"
Diameter 2: 2 3/16"
Depth: 4 1/2"
Attachment Point: Removable 5/8" Ball Stud
Pipe Size: 1/2"
Connection Type: RA, RB
DIAGRAMS
