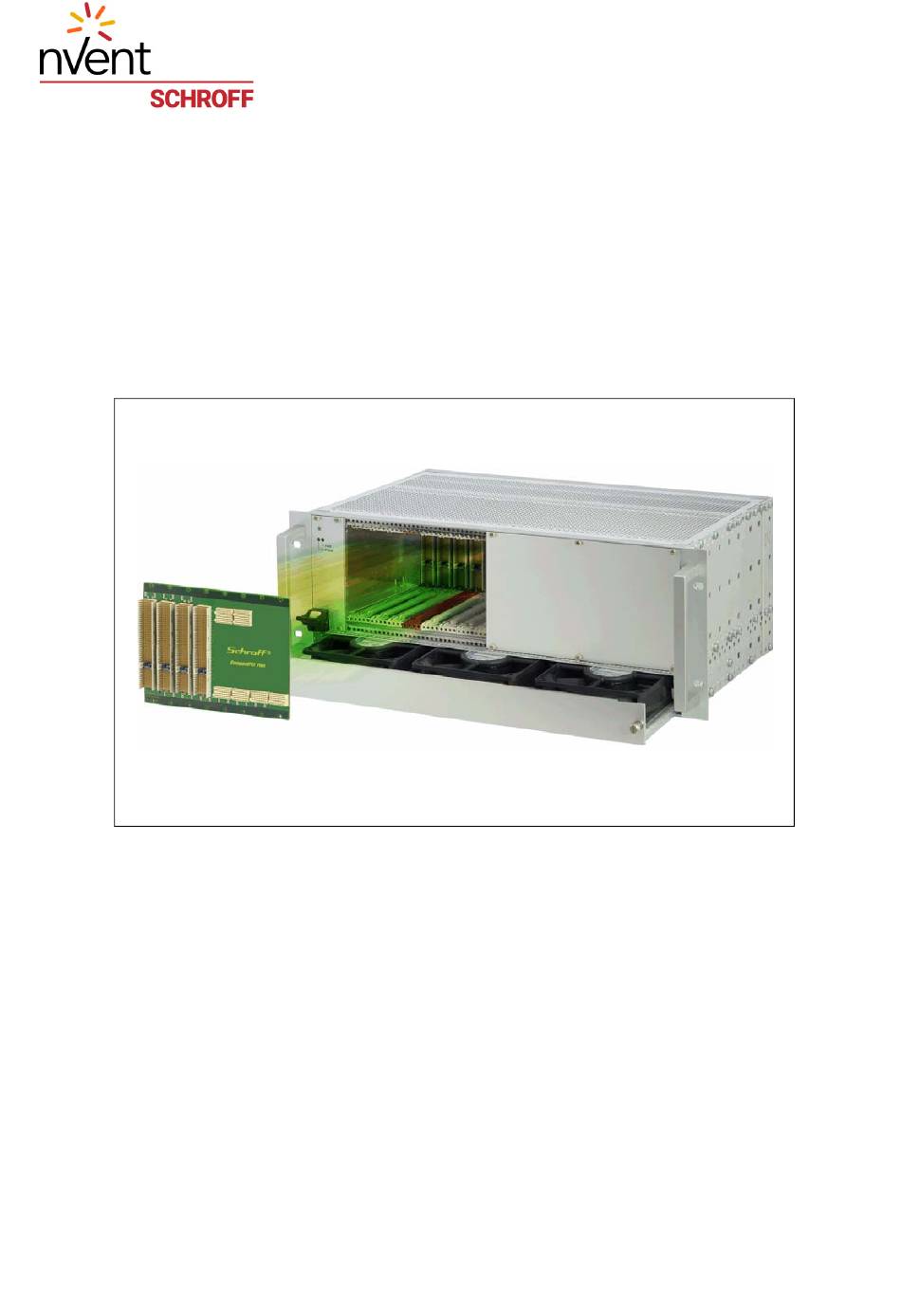

- Page 1 CPCI/CPCI Serial Hybrid System 3+1 U (PICMG 2.30, CPCIS.0) User’s Manual Product No.: 24579-400 January 04, 2010 Doc-No: 63972-262_R1.0...
- Page 2 Rev. Date updated Change D1.0 February 16, 2009 Draft Release R1.0 January 04, 2010 Initial Release Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints.
-
Page 3: Table Of Contents
CPCI/CPCI Serial Hybrid System 3+1 U 24579-400 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 1.2.1 Safety Symbols used in this document ..........2 General Safety Precautions................. 2 Product Definition..................... 3 References and Architecture Specifications ............3 System Overview.................... - Page 4 CPCI/CPCI Serial Hybrid System 3+1 U 24579-400 www.schroff.biz R1.0, January 04, 2010...
-
Page 5: Safety
CPCI/CPCI Serial Hybrid System 3+1 U Safety 24579-400 1 Safety 1.1 Intended Application The CompactPCI (CPCI/CPCI PlusIO/CPCI Serial) system, described in this manual, is intended as a platform for a microcomputer system based on the CompactPCI Standards PICMG 2.0 Rev.3, CPCI PlusIO PICMG 2.30 and CPCI Serial CPCIS.0. -
Page 6: Safety Instructions
CPCI/CPCI Serial Hybrid System 3+1 U Safety 24579-400 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.2.1 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. Familiarise yourself with the danger of electrical voltages and the safety precautions to avoid accidents before starting to work with parts that carry dangerous voltages. -
Page 7: Product Definition
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2 Product Definition The Schroff CPCI/CPCI PlusIO system consists of: • A shielded subrack with front and rear card cage for 3 U boards according to IEEE 1101.x, IEC 20297.x and the CompactPCI Standards PICMG 2.0 Rev.3, PICMG 2.30 CPCI PlusIO and CPCI Serial (CPCIS.0) •... -
Page 8: System Overview
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2.2 System Overview Figure 1: System Overview 12309829 250 W CPCI Power Supply Front panel 3 U, 44 HP CPCI/CPCI PlusIO Backplane Fan Tray with 3 fans Front Card cage with guide rails 2.3 Subrack The 4 U chassis is based on the Schroff europacPRO system with EMC shielding. -
Page 9: Cpci/Cpci Serial Hybrid Backplane
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2.4 CPCI/CPCI Serial Hybrid Backplane Figure 2: Backplane front and rear view www.schroff.biz R1.0, January 04, 2010... -
Page 10: Backplane Topology
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2.4.1 Backplane topology The CPCI/CPCI Serial hybrid backplane is splitted into a CPCI and a CPCI Serial section with a shared CPCI PlusIO system slot in the middle between the CPCI and CPCI Serial section. The former Rear I/O pins of the system slot connector P2 are used for the routing of serial links (SATA, USB2, PCIe, ETH) to the J1 and J6 connectors of the CPCI Serial slots as defined in the PICMG 2.30 CPCI PlusIO specification. - Page 11 CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 Table 1: Pinout CPCI PlusIO Connector 1-P2 (System Slot) CLK6 2_ETH_B+ 1_ETH_D+ 1_ETH_B+ CLK5 2_ETH_B- 1_ETH_D- 1_ETH_B- 2_ETH_A+ 1_ETH_C+ 1_ETH_A+ 2_ETH_D+ 2_ETH_C+ 2_ETH_A- 1_ETH_C- 1_ETH_A- 2_ETH_D- 2_ETH_C- PRST# REQ6# GNT6# 4_PE_CLK- 2_PE_CLK+ DEG# reserved...
-
Page 12: Power Backplane
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 Table 3: Pinout Connector x-J6 (CPCI Serial ETH Connector) 2_ETH_A+ 2_ETH_A- 2_ETH_B+ 2_ETH_B- 2_ETH_C+ 2_ETH_C- 2_ETH_D+ 2_ETH_D- 1_ETH_A+ 1_ETH_A- 1_ETH_B+ 1_ETH_B- 1_ETH_C+ 1_ETH_C- 1_ETH_D+ 1_ETH_D- Table 4: Pinout Connector x-J1 (CPCI Serial Base Connector) PE_Rx00+ PE_Rx00- PE_Tx00+... -
Page 13: Power Supply
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2.6 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a AC power cable that is approved for use in your country. -
Page 14: Cpci Plug-In Ac Power Supply
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2.6.1 CPCI Plug-In AC Power Supply Figure 5: Power Supply 10006814 Table 5: Data AC Power Supply Input voltage nominal 100 - 240 VAC Mains Frequency 50 / 60 Hz Output (max.) 250 W Output voltages 12.0... -
Page 15: Cooling
CPCI/CPCI Serial Hybrid System 3+1 U Product Definition 24579-400 2.7 Cooling The boards and the power supply are cooled by forced air convection through three 12 VDC axial fans (140 m³/h (85 cfm)). The fans are located in a hot-swappable fan tray. The operating temperature is from 0°C to 50°C. -
Page 16: Installation
CPCI/CPCI Serial Hybrid System 3+1 U Installation 24579-400 3 Installation 3.1 General Installation Guidelines 3.1.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •... -
Page 17: Rack-Mounting
CPCI/CPCI Serial Hybrid System 3+1 U Installation 24579-400 3.2 Rack-Mounting This subrack system can be installed in 19“ equipment racks. The rack must be accessible from the front and rear for equipment installation. Mounting Kit A rack mounting kit comes with the system. Mounting Instructions: •... -
Page 18: Service
CPCI/CPCI Serial Hybrid System 3+1 U Service 24579-400 4 Service 4.1 Technical support and Return for Service Assistance We generally recommend to return the complete system. For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. -
Page 19: Scope Of Delivery
CPCI/CPCI Serial Hybrid System 3+1 U Service 24579-400 4.3 Scope of Delivery Quantity Description Shielded europacPRO chassis 4 U / 84 HP with front handles CPCI/CPCIPlusIO/CPCI Serial backplane (PICMG2.0 R.3.0, PICMG 2.30, PICMG CPCIS.0), 8 slot 3 U Power Backplane with P47 Connector Front card cage for max. -
Page 20: Technical Data
CPCI/CPCI Serial Hybrid System 3+1 U Technical Data 24579-400 5 Technical Data Table 6: Technical Data Dimensions Height Width 482.60 mm (19“) Depth (Card cage) 275 mm Depth (Overall with handles) 322 mm Weight Completely assembled approx. 7,5 kg Power Supply Input Voltage 100 VAC to 240 VAC Frequency... -
Page 21: Dimensions
CPCI/CPCI Serial Hybrid System 3+1 U Dimensions 24579-400 6 Dimensions Figure 7: Dimensions www.schroff.biz R1.0, January 04, 2010... - Page 22 CPCI/CPCI Serial Hybrid System 3+1 U Dimensions 24579-400 www.schroff.biz R1.0, January 04, 2010...
- Page 24 SCHROFF GMBH www.schroff.biz Langenalberstr. 96-100 Tel.: + 49 (0) 7082 794-0 Fax: +49 (0) 7082 794-200 D-75334 Straubenhardt...
