nvent Caddy 512HD Instruction Sheet

INSTRUCTION SHEET


512HD
Applications and Options
Standard
Multiple box installation
WARNING:
1. nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at
www.nVent.com and from your nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and/or death, and void your warranty.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are
owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the
right to change specifications without prior notice.
TECHNICAL SUPPORT:
www.nVent.com
510HD
512HDXT
CFS230_D 1 OF 2
Part
Description
Number

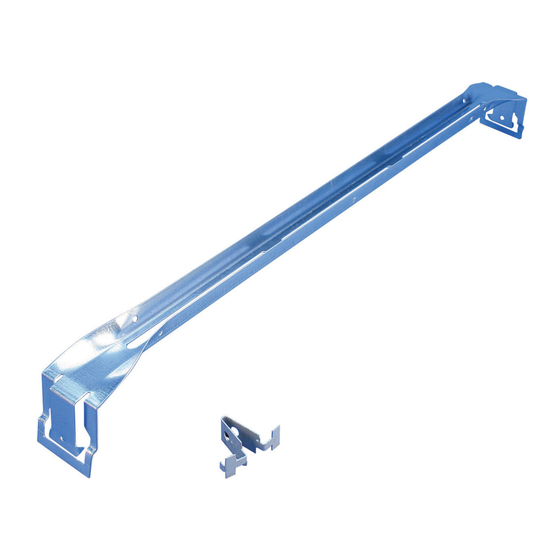

Heavy duty electrical box hanger with
512HD
box mounting clip, 24" span
Box mounting clip only, for
510HD
multiple box requirements
Extension bracket 3-5/8" height
512HDXT
Heavy duty electrical box hanger with
extension bracket 3-5/8" height
512HDEEP
Dropwire for independent support
from clip and/or bar.
Screw to tee bar
for added
support
Double deep box
with 512HDXT
© 1998-2018 nVent All Rights Reserved
