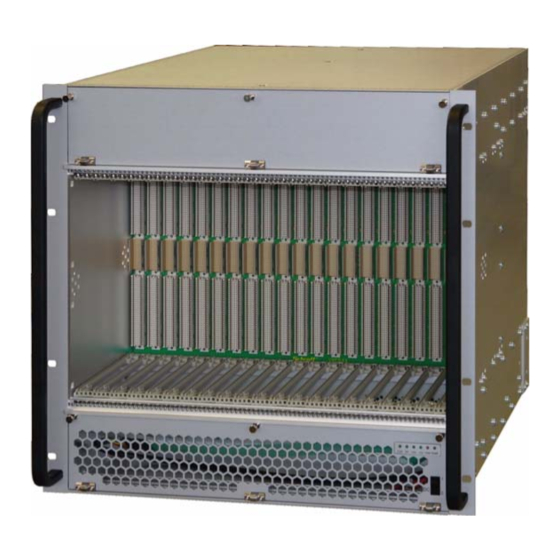

VME64x System Subrack 10 U
User's Manual
Product No.:
20836-220
Doc-No: 63972-162
Revision: R1.0, November 19, 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Schroff 20836-220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for nvent Schroff 20836-220

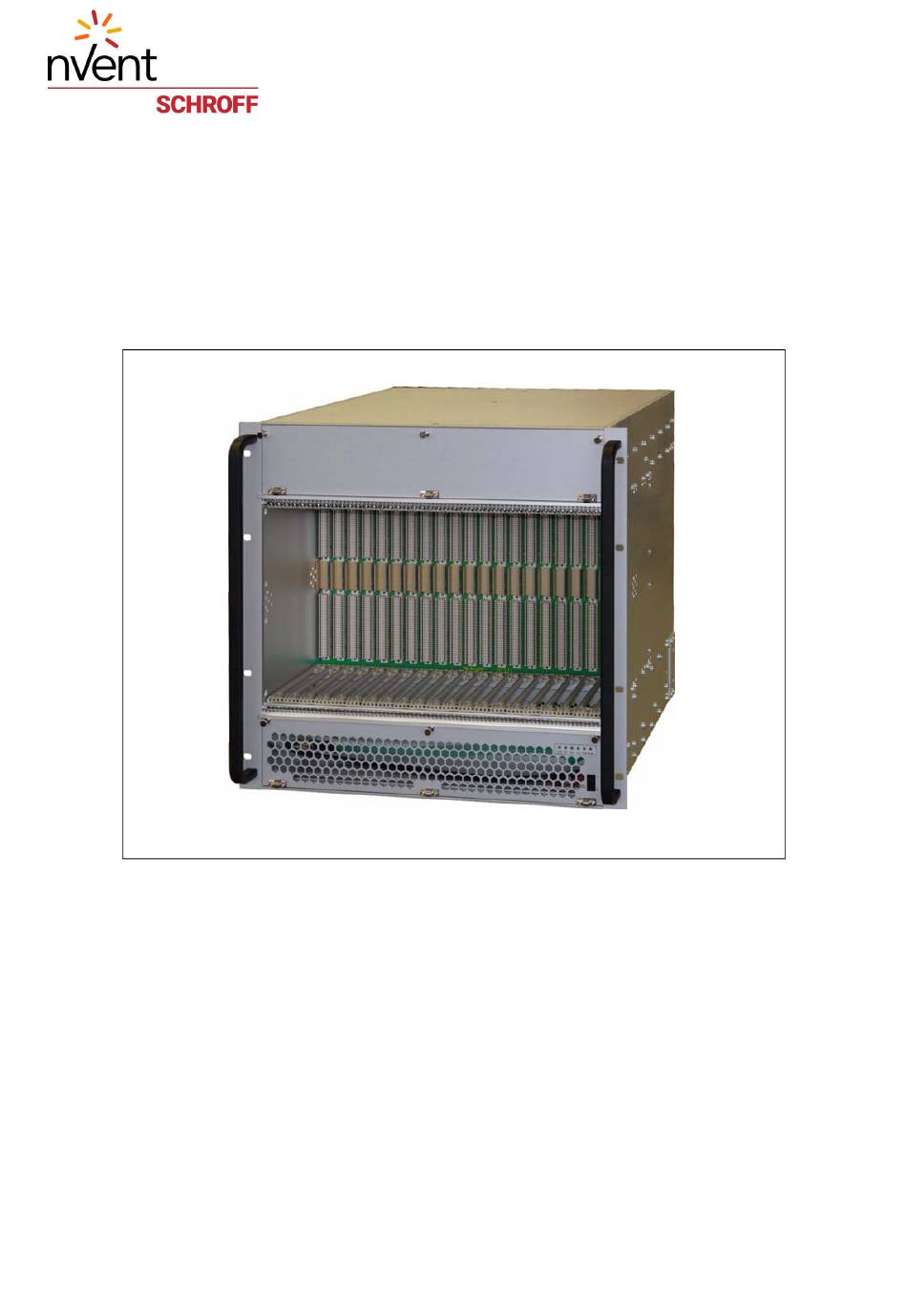

  • Page 1 VME64x System Subrack 10 U User’s Manual Product No.: 20836-220 Doc-No: 63972-162 Revision: R1.0, November 19, 2007...
  • Page 2 Rev. Date updated Change R1.0 November 19, 2007 Initial release Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints. The company reserves the right to amendments of technical specifications due to further development and improvement of products.
  • Page 3: Table Of Contents

    VME64x System Subrack 10 U 20836-220 Table of Contents Safety ......................... 1 Intended Application .................... 1 Safety Instructions ....................2 Safety Symbols used in this document..............2 General Safety Precautions................. 2 References and Architecture Specifications ............3 Product Definition..................... 4 Front View......................
  • Page 4 VME64x System Subrack 10 U 20836-220 www.schroff.biz R1.0, November 19, 2007...
  • Page 5: Safety

    VME64x System Subrack 10 U Safety 20836-220 1 Safety 1.1 Intended Application The VME system subrack, described in this manual, is intended as a platform for a microcomputer system based on the VME bus system (VME (VITA 1-1994) and VME64x (VITA 1.1-1997)). The VME64x system subracks are designed for protection class IP 20 and can be used only in the resp.
  • Page 6: Safety Instructions

    VME64x System Subrack 10 U Safety 20836-220 1.2 Safety Instructions The intended audience of this User’s Manual is system integrators and hardware/software engineers. 1.3 Safety Symbols used in this document Hazardous voltage! This is the electrical hazard symbol. It indicates that there are dangerous voltages inside the Shelf.
  • Page 7: References And Architecture Specifications

    VME64x System Subrack 10 U Safety 20836-220 1.5 References and Architecture Specifications • User Manual VME64x Backplanes Order no.: 73972-103 • Short Form User Manual VME64x Backplanes Order no.: 73972-091 • User Manual Fan Control Module (FCM) Order no.: 73972-083 •...
  • Page 8: Product Definition

    VME64x System Subrack 10 U Product Definition 20836-220 2 Product Definition The Schroff VME64x subrack system consists of: • A shielded 19“ subrack with front assembly area for 6 U front boards according to VME64x Standard (VITA 1.1-1997) • Rear assembly area for 6 U, 4 HP Rear Transition Modules •...
  • Page 9: Rear View

    VME64x System Subrack 10 U Product Definition 20836-220 2.2 Rear View Figure 2: Rear View 10006801 Air Outlet Fuses Rear Card Cage Mains/line switch Power supply drawer AC Connector (IEC320-C14) www.schroff.biz R1.0, November 19, 2007...
  • Page 10: Mechanical Overview

    VME64x System Subrack 10 U Product Definition 20836-220 2.3 Mechanical Overview Figure 3: Mechanical Overview 10006802 Fan Tray Left Front panel 2 U (Fan Tray cover) Backplane Rear Card Cage Front Card Cage Drawer with Power Supply Front panel 2 U, perforated Chassis Monitoring Module (CMM) Air Filter Fan Control Module (FCM...
  • Page 11: Subrack

    VME64x System Subrack 10 U Product Definition 20836-220 2.4 Subrack The 10 U / 19“ system based on the Schroff europacPro System with EMC shielding. The subrack is equipped with a front card cage for up to 21 VME64x Boards (6 U, 4 HP, 160 mm deep) and a rear card cage for up to 21 Rear I/O Boards (6 U, 4 HP, 80 mm deep).
  • Page 12: Power Supply

    VME64x System Subrack 10 U Product Definition 20836-220 2.6 Power Supply Hazardous voltage! Parts of the power supply may be exposed with hazardous voltage. Always remove mains/line connector before carry out any assembly work. Caution! Your system has not been provided with a AC power cable. Purchase a AC power cable that is approved for use in your country.
  • Page 13 VME64x System Subrack 10 U Product Definition 20836-220 Figure 4: Power Supply 10006803 Mains Fuses Power Supply Connector for equipotential bonding 6 Backplane Connector Mains/line switch Backplane Connector AC connector (IEC320-C14) Table 1: Data AC Power Supply Input voltage nominal 100 - 240 VAC Mains Frequency 50 / 60 / 400 Hz...
  • Page 14 VME64x System Subrack 10 U Product Definition 20836-220 Figure 5: Wiring Diagram 10006805 www.schroff.biz R1.0, November 19, 2007...
  • Page 15: Thermals

    VME64x System Subrack 10 U Product Definition 20836-220 2.7 Thermals The 10 U VME64x system subrack contains two interchangeable Fan Trays. The Fan Trays are plugged-in at the rear top of the system behind a bottom- hinged front panel and are hot-swappable. Each Fan Tray contains a 24VDC radial fan (500 m³/h (295 cfm) each).
  • Page 16: Fan Control Module (Fcm)

    VME64x System Subrack 10 U Product Definition 20836-220 2.8 Fan Control Module (FCM) The Fan Control Module (FCM): • Monitors and controls up to four fans • Monitors the signals from up to four temperature sensors • Controls the Display Module •...
  • Page 17: Chassis Monitoring Module (Cmm) -Optional

    VME64x System Subrack 10 U Product Definition 20836-220 2.9 Chassis Monitoring Module (CMM) -optional- The Chassis Monitoring Module (CMM) • monitors the four VME64x voltages • can monitor two additional voltages with a range of ±24 V • can monitor up to seven NTC temperature sensors •...
  • Page 18: Display Module

    VME64x System Subrack 10 U Product Definition 20836-220 2.10 Display Module Figure 8: Display Module The Display Module is located at the lower front side of the subrack. 4 green LEDs signal the 4 VME64x voltages, two red LEDs signal over-temperature and fan fail events.
  • Page 19: Installation

    VME64x System Subrack 10 U Installation 20836-220 3 Installation 3.1 Unpacking Caution! When opening the shipping carton, use caution to avoid damaging the system. Consider the following when unpacking and storing the system: • Leave the system packed until it is needed for immediate installation. •...
  • Page 20: Rack-Mounting

    VME64x System Subrack 10 U Installation 20836-220 3.2 Rack-Mounting Warning! Do NOT move the a full equipped system by yourself. Due to the weight at least two persons are needed to accomplish this task Warning! Do NOT stack the system on top of any other equipment. If the system falls, it can cause severe bodily injury and damage the equipment.
  • Page 21: Initial Operation

    VME64x System Subrack 10 U Installation 20836-220 3.3 Initial Operation Warning! Voltages over 60 VDC can be present in this equipment. This equipment is intended to be accessed, to be installed and maintained by qualified and trained service personnel only. This eqipment is designed in accordance with protection class 1! It must therefore be operated only with protective GND/earth connection! Before starting the system with VME boards the following tests have to be done:...
  • Page 22: Service

    VME64x System Subrack 10 U Service 20836-220 4 Service 4.1 Technical support and Return for Service Assistance For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. We recommend that you save the packing material. Shipping without the original packing material might void the warranty.
  • Page 23: Scope Of Delivery

    VME64x System Subrack 10 U Service 20836-220 4.3 Scope of delivery Quantity Description 19" subrack, shielded, with top and base covers and front handles. (front handles: RAL 9005; 19"-brackets, top and base covers: RAL 9006) VME64x Backplane (VITA 1.1-1997), 21-Slot 6 U + 1U Front assembly area for max.
  • Page 24: Technical Data

    VME64x System Subrack 10 U Technical Data 20836-220 5 Technical Data Table 2: Technical Data Dimensions Height 445 mm (10 U) Width 483 mm (19“) Depth 455 mm Weight 30 Kg Power supply Input voltage 100 VAC to 240 VAC Mains frequency 50 / 60 / 400 Hz Power consumption...
