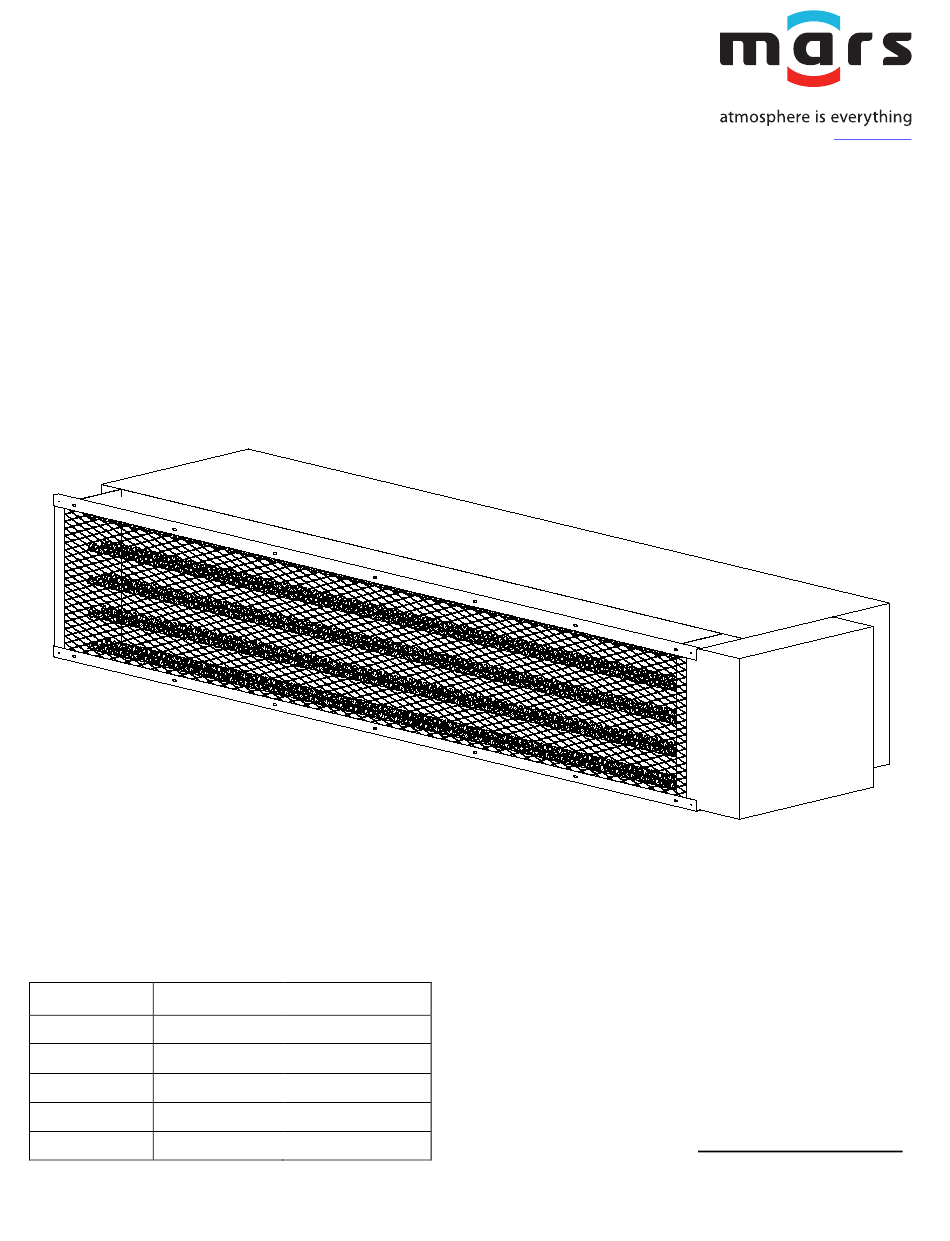

WMH Submittal Package

14716 S. BROADWAY, GARDENA, CA 90248 ● Ph: (310)532-1555 Fax: (310)-532-3030 ●

www.marsair.com

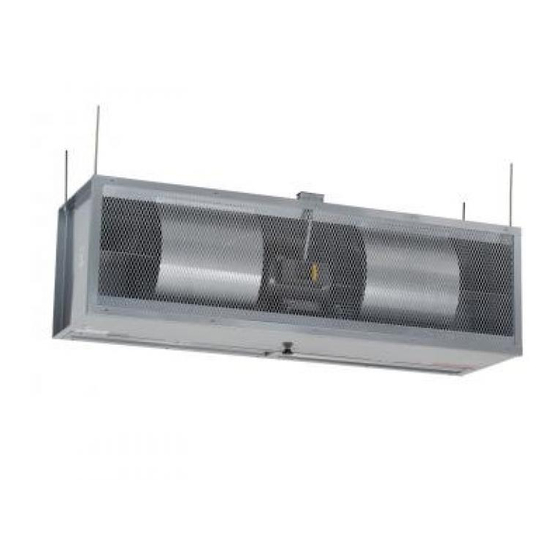

WMH Electric

Heated Series

Wind Stopping 16

Industrial Air Curtain

Submittal Package

Submitted by:

Mars Air Systems, LLC

14716 S. Broadway

Gardena, CA 90248

P.O.#

S.Q.

Company

Print Name

Signature

Date

Company Seal or Stamp

(Electronic Signature Preferred)

NOTE: MARS AIR SYSTEMS, LLC reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements

for previously purchased equipment.

MARS AIR SYSTEMS, LLC

GARDENA, CA

USA

●
