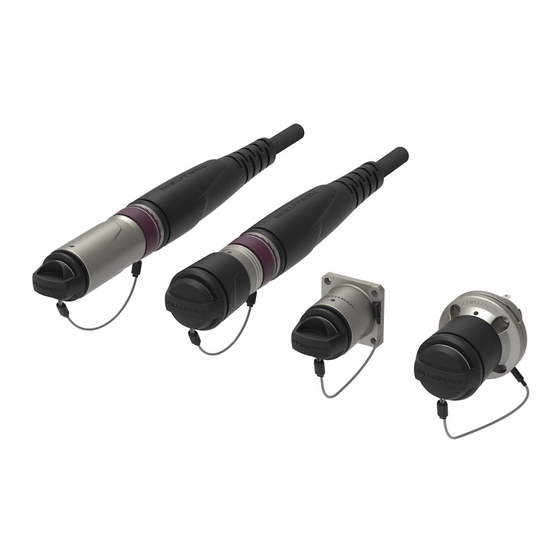

NEUTRIK opticalCON DRAGONFLY Assembly Instruction

R
ASSEMBLY INSTRUCTION
opticalCON DRAGONFLY
1

Wire preparation

A
2

Required Crimp Tools

A
B
3

Crimp Tool Setup

A
C
BDA 599 V1
®
5 mm
[ 0.197" ]
B
D
|

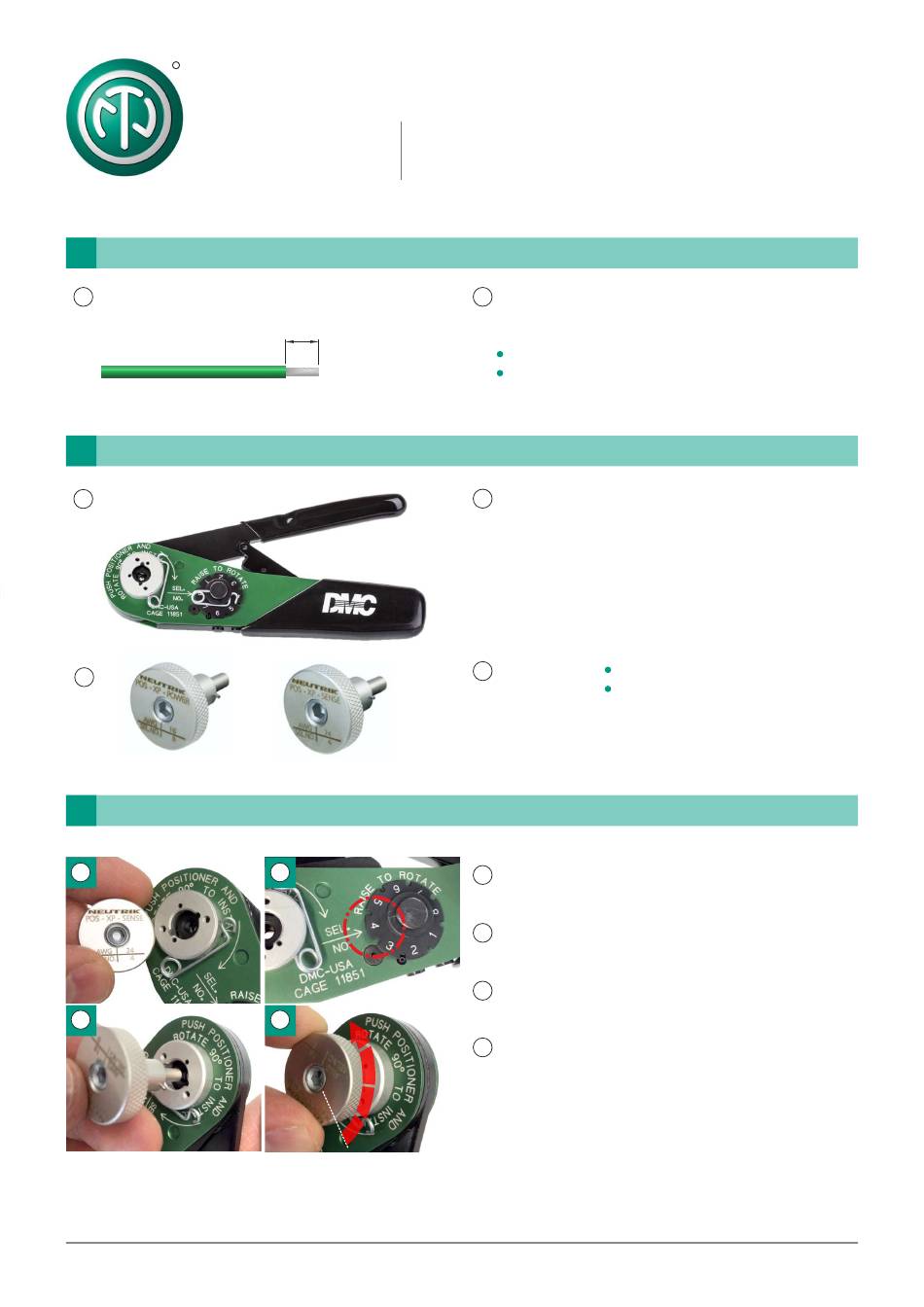

Contact Crimping
A
Strip the isolation to 5 mm for all wires.
Use follwing AWG Sizes:
POWER - AWG 16
SENSE - AWG 24
A
DMC MH860 Crimp Tool
B Crimp DIE POS-XP-POWER
POS-XP-SENSE
A
Use the correct Crimp DIE. Therefore check the
labeling on the DIE.
B
Set the sel. No as noted on the Crimp DIE.
C
Insert the DIE.
D
Rotate 90° to lock the DIE.
