Zoom 5011 Technical Specifications

Access the Internet at speeds
up to 100 times faster than
dial-up modems
Provides an always-on Internet
connection for instant access
Eliminates Internet traffic on
your phone line
DOCSIS 1.0 tested and certi-
fied for operation with industry
-standard cable networks
Can be upgraded to DOCSIS
1.1 automatically by your cable
service provider
Easy-to-read status display
Stylish, design with vertical and
horizontal options
Ethernet support for any operat-
ing system, including Windows
95, Macintosh, Linux and Unix
Unique Zoom Cable Modem
Monitor provides network
troubleshooting software
™
Includes ZoneAlarm personal
™
firewall and AdSubtract ad
blocker software
Includes Ethernet cable

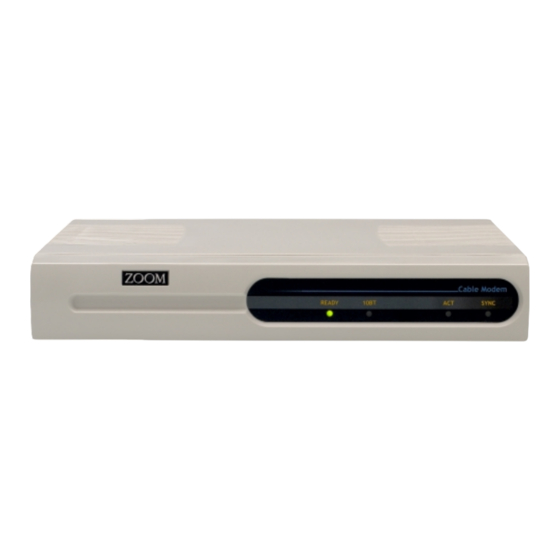

Model 5011
Zoom
®
External Cable Modem
with Ethernet Connection
The Zoom CableModem Model 5011 has a 10/100BaseT Ethernet
interface to support a wide range of operating systems, and applications.
The modem is easily installed using the software provided. In addition,
Zoom's unique Cable Modem Monitor Software provides user-friendly
troubleshooting if problems are encountered on the network.
The Model 5011 has been CableLabs
approved as fully compliant with the Data Over Cable System Interface
Specification 1.0 (DOCSIS 1.0), ensuring interoperability and a high level
of performance with industry-standard cable systems. It is software
upgradeable to DOCSIS 1.1, with the necessary hardware, software and
Digital Certificates built into the modem to support 1.1 enhancements.
Data over cable service providers are supported further with remote and
local diagnostic capability, remote firmware downloads and SNMP
support. The cable modem supports up to fifteen PCs and a data rate of
up to 42 Mbps downstream from the service provider and 10.2 Mbps
upstream.
The package includes ZoneLabs' ZoneAlarm
™
AdSubtract ad blocker/cookie filter software, a user's manual and
Ethernet cable.
@Home
Level 2 Approved
CableModem
®
certified and Excite@Home
™
personal firewall software,
™
