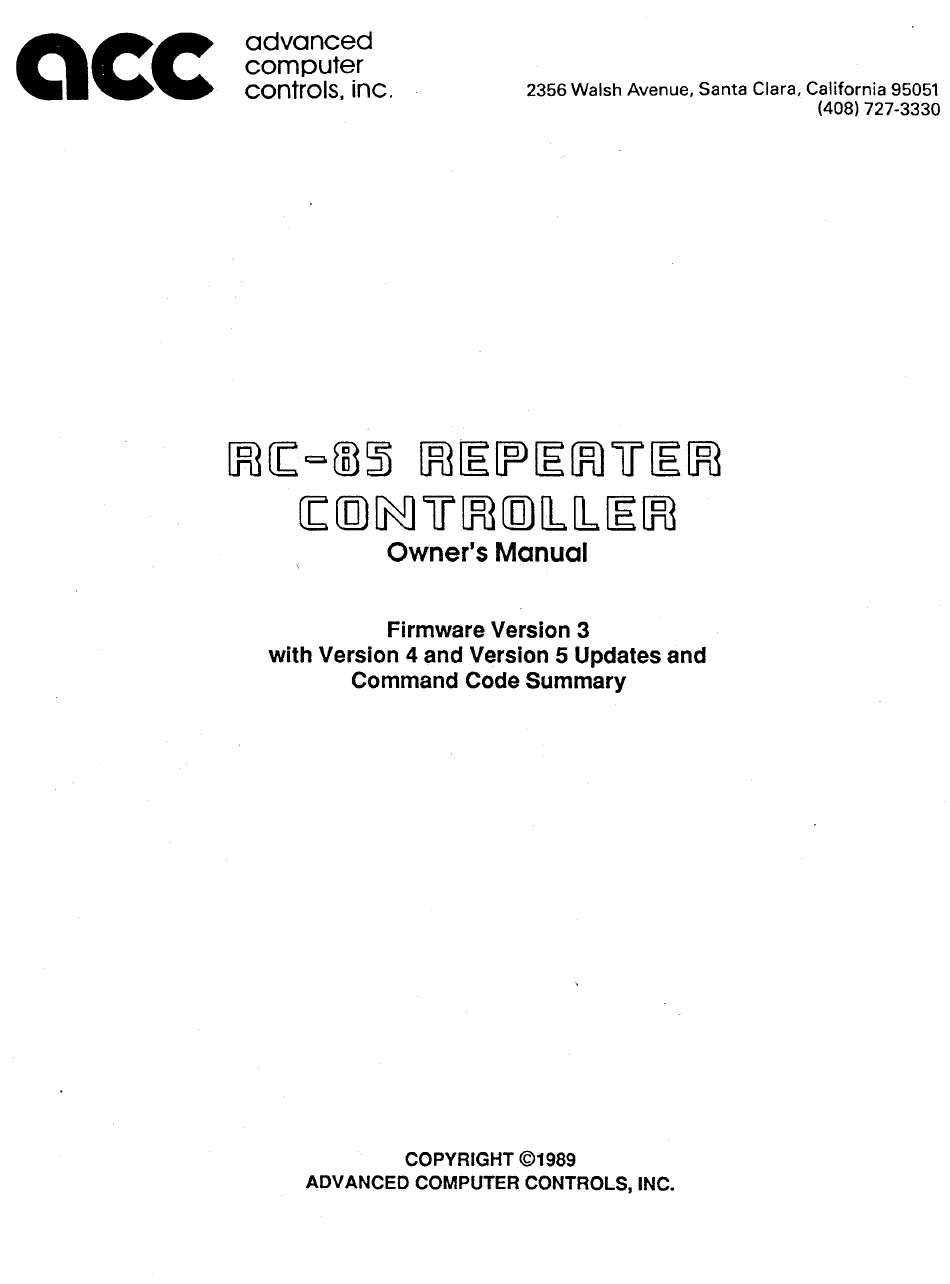

ACC RC-85 Owner's Manual

Repeater controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Summary of Contents for ACC RC-85

  • Page 3 This manual Converted to PDF by Daniel Ratzlaff - WWØF March, 2002...
  • Page 5 RC-85 Repeater Controller Version 4 New Features ... Not in the V3 Manual! User’s Features IC-900 Support The new software supports IC-900 band units as remote base transceivers, interfaced via the FC-900. Refer to the FC-900 Manual for details. Reverse Patch Answer Acknowledgement When the reverse patch is answered over the air, a “beep-beep”...
  • Page 6 Programming the Controller Timers *4012(period) ID Timer Pending ID Period. Recommend 360 seconds for amateur repeater. *4013(period) Ringout Timer Determines how long reverse patch rings over the air. Phone stays off hook for 60 seconds, even if ringout is shorter or longer. *4014(period) Talkout Timer Reverse Patch Mode 3 Talkout period...
  • Page 7 V5.2 12/91 Version 5! For the ‘96 and ‘85 Introduction The new Version 5 firmware for your RC-96 or RC-85 Repeater Controller adds the following exciting features: • Time of day clock and calendar • Scheduler • Expanded vocabulary - FEMALE and sound effects •...
  • Page 8 WARNING: If you connect your controller to a Kenwood TS-440S transceiver and plan to operate on ten meters, be aware that RF emissions from the RC-85 controller may require addional shielding and filtering for effective operation. See Chapter 10 of the RC-85 Manual for suggestions.
  • Page 9 PROM at location U27 or have obtained a 8Kx8 E PROM from ACC before performing the installation. If the chip at U27 is a 9864 or 28C64A or other part number ending with 64, then you may proceed. If the chip is a 2815, 2816, or 2817A (not ending in 64) then you...
  • Page 10 - *420S 0 0 0 00 00 1. If your ‘96 has a Tone Panel option, reprogram all tone panel selections. DIP Switch Summary RC-85 Controller UF 1-3 directly at logic connector - 4,5,6=OFF, 7=ON Single channel link - 4,7=ON, 5,6=OFF Synth.
  • Page 11 Operation This section describes the operation of the various new features in Version 5. The new command codes (programming, control operator, and user) are also summarized later. Clock / Calendar The clock and calendar serves several purposes - the time can be played on re- quest by entering a Demo user command;...
  • Page 12 Scheduler The scheduler works with your existing five macro sets, the new clock / calendar, and “setpoints” which you can program to tell the controller when to change over to a new macro set. The automatic selection of macro sets by the scheduler is identical to your manual selection using the Macro Set Select Control Operator command.
  • Page 13 Female and Sound Effects Synthesized Speech Thirty-two female words, 10 male words, and 8 sound effects are added to the vocabulary list. In addition, five “run-time variables” can be programmed into messages to play time and date related information as part of the messages. The vocabulary additions along with their message editor codes are shown below and in the programming summary.
  • Page 14 HF Remote Base A Kenwood TS-440S HF transceiver can be connected to the controller and can be operated remotely through the repeater. Installation instructions for the transceiver are shown later in this note. This section describes the commands which relate to operation of the HF remote. The HF remote base gets its own user command code prefix.
  • Page 15 Mode [HF Prefix] 1 (mode 1-4) Mode: 1=USB, 2=LSB, 3=AM, 4=FM Examples (assuming HF Prefix = factory default value of 1): USB = 1 1 1 LSB = 1 1 2 Memory [HF Prefix] 5 (00-99) Note: Memories must be preprogrammed into the HF transceiver. VFO A [HF Prefix] 5 Example (assuming HF Prefix = factory default value of 1): Select memory 54 which has been...
  • Page 16 Installation of the HF Remote Base In addition to your RC-85 or RC-96 Repeater Controller, you need: From Kenwood: Kenwood TS-440S IC-10 IC kit (Intel or equivalent 8251A, RCA or equivalent CD4040B) You do not need the IF-232C level translator.
  • Page 17 Miscellaneous Improvements The following changes have been made in V5 firmware. • Reverse patch mode 4 is added which places the caller directly on the air. The caller can enter Touch-Tone # during the first five seconds to revert to mode 0 and be taken off the air for the remainder of the call.
  • Page 19 About this Manual... Congratulations on owning an RC-85 Repeater Controller. This manual provides a description of the function, operation, and interface of the RC-85 controller. Chapter 1 provides a brief introduction to the RC-85 controller and its capabilities in general terms, followed by its specifications and features.
  • Page 21 Table of Contents Introduction and Specifications Installing In Your Repeater General Operation Command Code Structure How to Command the User’s Features How to Be A Control Operator Programming the Controller Interfacing to Other Equipment How It Works In Case of Difficulty Command Code Summary Layout, Connectors, Switches, and Adjustments...
  • Page 23 For example, programming an IDer previously involved constructing a diode-matrix read-only memory to form the dits and dahs of Morse code. The RC-85 controller, on the other hand, allows you to edit ID messages with your Touch-Tone pad and store them in the board’s non-volatile memory. But that’s just part of the story - your repeater can talk to you! The IDs may be in natural sounding synthesized speech so your users don’t have to be cw buffs to...
  • Page 24 PROM with the flexibility of in-system reprogramming. The RC-85 controller is fully compatible with ACC’s Digital Voice Recorder. This is just a sampling of the capability of the RC-85 Repeater Controller - read on to find out the whole story.
  • Page 25 ! Proven reliability designed in, with watchdog timer, voltage monitoring circuitry, transient protection, conservative design ! Compatible with ACC’s Digital Voice Recorder ! Manual, “Getting Started” Cassette Tape, free telephone technical support (Introduction and Specifications) 1 - 3...
  • Page 26 RC-85 Repeater Controller Owner’s Manual Options ! Subaudible tone decoder (Communications Specialists TS-32) ! FC-1 Frequency Control Board - for frequency control of BCD remote base transceivers and remote control output expansion ! AD-2 Audio Delay “Piggyback Board Kit” -...

  • Page 27: Table Of Contents

    Setting Audio Levels Introduction The RC-85 controller is the new “brain” of your repeater, but to have its orders carried out it needs a few connections. It needs to know when there’s a signal at the receiver’s input, and it needs to be able to tell the transmitter when to turn on and off.

  • Page 28: Carrier-Operated-Switch

    Contact the factory if you need help with your particular receiver. Since signals from different receivers can vary in characteristics, the RC-85 controller is designed to accept a variety of logic levels and to accept “high true”...

  • Page 29: Receiver Audio

    The receiver audio input circuitry to the RC-85 controller allows for a variety of signal levels and impedances. The audio input is capacitively coupled, which means that a dc level may be present on the signal supplied. The level is internally adjustable so that a fairly wide range of input levels is acceptable, but for best results the input audio should be .5 to 2.5 volts peak-to-peak.

  • Page 30: Telephone Line

    FCC Part 68 regulations. Power The RC-85 controller will operate from a supply voltage of 11.5 to 15 volts dc. Since the circuitry is primarily low power, high performance CMOS, its current requirements are less than about 200 mA. Low power single supply operation means it’s easy to battery backup, along with the rest of your repeater, to keep it...

  • Page 31: Wiring To Your Controller

    (see diagram below). Setting DIP Switch Options Switch settings on the RC-85 controller board select high or low true sense for the COS and PTT signals (see below). It’s now necessary to set the switches correctly to properly control the repeater.
  • Page 32 RC-85 Repeater Controller Owner’s Manual Remember that the RC-85 controller is an audio source to the transmitter, and its various audio levels should be balanced relative to each other. Do not confuse controller audio level adjustments with transmitter audio characteristics. The controller’s levels are best set using an oscilloscope at its audio output, or yes,...
  • Page 33 Touch-Tone Muting Noise and Kerchunker Filtering Introduction The RC-85 Repeater Controller brings your repeater to life by automatically controlling the operation of the system and by responding to Touch-Tone commands from its users. A system block diagram is shown below, illustrating how the controller fits into a typical repeater system.

  • Page 34: Command Channels

    RC-85 Repeater Controller Owner’s Manual The controller’s command decoder and command structure are described in detail in the next chapter. We’ll describe here the command channels, along with access modes, ID, courtesy tone, tail messages, and other aspects of the controller’s operation.

  • Page 35: Access

    ID Timing and Selection Amateur repeaters in the U.S. are required to ID at least every 10 minutes when in use. The RC-85 controller offers an intelligent ID algorithm which selects one of seven remotely programmable Morse code and synthesized speech ID messages based on the circumstances.

  • Page 36: Courtesy Tone

    RC-85 Repeater Controller Owner’s Manual ID Message” at the end of the repeater hang time. The Pending ID can rotate between three ID messages for variety. In addition, a “Special ID Message” can be added to the rotation for special events. The Pending and Special IDs can conveniently contain informational messages, as they occur, without interfering with conversations on the repeater.

  • Page 37: Tail Messages

    RC-85 Repeater Controller Owner’s Manual Tail Messages Up to three different tail messages may be programmed by the repeater owner and selected for use by the Control Operator. These messages are sent at the end of the hang time, just prior to dropping the transmitter carrier and can remind users of status of the machine of an approaching net or meeting.

  • Page 38: Touch-Tone Muting

    The Control Op may disable Touch-Tone muting so that all tones pass through the repeater. Noise and Kerchunker Filtering The RC-85 controller provides filtering against noise and kerchunking on the repeater receiver. An algorithm filters against spurious noise on the receiver COS logic input, preventing static crashes and random noise bursts from bringing up the repeater.
  • Page 39 Your controller speaks back to you in voice. Commands can be entered over the air, or over the phone, or over a control receiver. There are several levels of Touch-Tone commands which control the RC-85 controller. Your repeater group probably consists of three types of persons - the repeater owner or technical group, the Control Operators, and the general users.

  • Page 40: User Commands

    RC-85 Repeater Controller Owner’s Manual User Commands There are 13 classes of User commands, each with its own independent command code. User command codes consist of a prefix followed immediately by a command root. The prefix may be remotely programmed by the repeater owner using Configuration commands, while the command roots contain information related to the action desired.

  • Page 41: Configuration Commands

    RC-85 Repeater Controller Owner’s Manual stored in the controller’s non-volatile memory using a Configuration command. The Control Op Macro Sets make it easy to select a special mode, like night operation, or net mode. One easy to remember Control Op macrocommand can, in effect, perform many commands.

  • Page 42: Command Evaluation

    RC-85 Repeater Controller Owner’s Manual The classes of Configuration commands include: Messages Tone Parameters Courtesy Tone Selection Timers Command Code Prefixes Emergency Autodial Numbers Misc. Selections Command Evaluation The controller evaluates Touch-Tone commands to determine the function requested. Commands may be entered over the repeater receiver, the phone line, or the control receiver.

  • Page 43: Command Decoder Timers

    RC-85 Repeater Controller Owner’s Manual Touch-Tone unmute is useful for entering telephone credit card numbers and passing tones through the remote base to other repeaters. Command terminator for commands entered over the phone Optional command terminator for commands entered over air...
  • Page 44 RC-85 Repeater Controller Owner’s Manual (Command Code Structure) 4 - 6 V3 4/87...
  • Page 45 Introduction This chapter guides you step by step through the procedures for operating the user features of the RC-85 controller. Detailed examples are provided which you may try on your repeater as you read them. Remember - you can’t break your controller with Touch-Tone commands so feel...

  • Page 46: Activating The Autopatch

    RC-85 Repeater Controller Owner’s Manual The first key of the sequence, which tells the controller that you’re testing your pad, is “5”, and then you can enter any sequence of up to 32 digits for readback. So to test your entire pad, for example, you can enter, all in one transmission: 5 123456789*0#ABCD The controller responds by reading back everything after the “5”...

  • Page 47: Hanging Up The Patch

    RC-85 Repeater Controller Owner’s Manual Example: Autopatch Prefix = * User sends “* 7273330”. Controller says “Autopatch (pause) seven two seven three three three zero (pause)”. User clicks his mike at either pause and controller dials the number Hints: If you don’t want your users to have to “click” their mikes to start dialing, select the Control Operator “Dial without...

  • Page 48: Patch Redial

    RC-85 Repeater Controller Owner’s Manual Related Commands: Config Phone Hangup Message, Patch Hangup Command Control Op Control Op Onhook User Custom Hangup Code Patch Redial The phone number dialed is stored in a redial memory and is available for easy redial without the need to enter the entire phone number again.

  • Page 49: Selecting The Cover Tone For Semi-Private Patch

    RC-85 Repeater Controller Owner’s Manual Related Commands: Config Patch Utility Command Prefix Control Op Control Op Onhook Selecting the Cover Tone for Semi-private Patch The controller offers a “cover tone” available during patches which results in muting of the mobile audio through the repeater replaced by the cover tone. The cover tone offers a degree of privacy by allowing only one side of the conversation to be heard on the air (the telephone side).

  • Page 50: Loading And Erasing The User Loadable Autodialer

    RC-85 Repeater Controller Owner’s Manual Since the controller waits until the mobile is listening before the warning, the actual patch duration may end up being somewhat longer than the programmed patch timer plus 30 seconds. The timer may be extended over and over, but no warning is given before it times out again.

  • Page 51: Activating The User Loadable Autodialer

    RC-85 Repeater Controller Owner’s Manual Example: Autodial Bank 0 Load / Erase Prefix = 456 User sends “456 40”. Controller says, “Autodial Cancel” and erases location 40. Command: (User Autodial L/E Prefix) (Location) (Phone Number) or (User Autodial L/E Prefix) * (Location) (Phone Number)

  • Page 52: Activating The Emergency Autodialer

    RC-85 Repeater Controller Owner’s Manual You can inhibit the phone number readback by clicking the mike at the first pause. Waiting until the second pause allows you to verify the contents on the autodial memory. You can also prevent phone number readback of an autodial slot by having selected the “security”...

  • Page 53: Bringing Up The Reverse Patch From The Phone

    RC-85 Repeater Controller Owner’s Manual programmable messages, like “Operator”, “Fire”, “Police”, etc. These ten numbers are intended for emergency public service agencies, and the reponse indicates selection of the correct agency. The Emergency Autodialer does not require that the user click his mike to initiate telephone dialing. The patch is terminated just like the Autopatch and User Loadable Autodialer.

  • Page 54: Answering The Reverse Patch Over The Air

    RC-85 Repeater Controller Owner’s Manual Mode 2 causes the controller to ring out when a phone ring is detected, but the line is not answered until a repeater user enters the Reverse Patch Answer command over the air. A special Telephone Access Paging mode is described in Appendix III and applies when DIP switch 7 is on.

  • Page 55: Extending The Telephone Timer

    Reading Back Your Signal Strength Assuming that an S-meter signal voltage is connected to the RC-85 controller, users may interrogate their signal strength into the repeater. The controller always measures the S-meter one-half second into each new transmission and stores the reading.

  • Page 56: Commanding The Demo Messages And Bulletin Board

    RC-85 Repeater Controller Owner’s Manual Commanding the Demo Messages and Bulletin Board Users may call up several messages which may be programmed by the repeater owner to include information of interest to the users. They may also activate the various ID messages contained in the controller.
  • Page 57 RC-85 Repeater Controller Owner’s Manual The user may activate the link transmitter. Now repeater users are retransmitted over the link frequency and appear to listeners on the link frequency as any other user on that frequency. The link may be to other repeaters or to simplex frequencies.

  • Page 58: Unmuting Touch-Tone

    Unmuting Touch-Tone At times it is desirable to pass Touch-Tone sequences through the repeater or through to the phone line unmuted, without them being decoded by the RC-85 controller. For example, bringing up an autopatch on a repeater accessed through the remote base would require passing tones through the controller to the linked repeater.

  • Page 59: Taking The Touch-Tone Access Mode Up And Down

    RC-85 Repeater Controller Owner’s Manual Examples: Paging Prefix = xxx User sends xxxxx. Controller sends two tone sequential tones, A tone Group #2 Tone #3 (669.9 Hz), B tone Group #1 Tone #5 (433.7 Hz). User sends xxx. Controller sends eight second group call Group #3 Tone #6 (979.9 Hz).

  • Page 60: Activating The Spare Audio Function

    RC-85 Repeater Controller Owner’s Manual Hints: The controller sends the Forced CW ID Message when going down, if necessary, to properly ID at the end of an exchange of transmissions. When taken up, the Touch-Tone Access Mode Timer will take the repeater back down after a period of inactivity.
  • Page 61 RC-85 Repeater Controller Owner’s Manual Certain of the UF outputs take on dedicated functions when various options are selected. For example, UF 3 becomes a Phone Line Busy output when in the Phone Line Shared mode. UF commands to dedicated outputs are ignored by the controller.
  • Page 62 RC-85 Repeater Controller Owner’s Manual (User’s Features) 5 - 18 V3 4/87...
  • Page 63 RC-85 Repeater Controller Owner’s Manual Chapter 6 How to Be a Control Operator Contents Introduction Control Operator Commands Macro Set Selection Repeater Enable / Disable Repeater Timer Access / Control User Command Enable / Disable Link Enable / Disable Autopatch / Autodial...
  • Page 64 RC-85 Repeater Controller Owner’s Manual The † which follows many of the command names indicates that the command selection is stored in the Control Op Macro Sets. Macro Set Selection Commands Four commands allow “macro” selection of Control Op Command Macro Set 1, 2, 3 or 4.
  • Page 65 RC-85 Repeater Controller Owner’s Manual Repeater Timer Enable† Enables repeater timeout timer. Repeater Timer Disable† Disables repeater timeout timer. Repeater Timer Long† Selects long timeout timer. Repeater Timer Short† Selects short timeout timer. Clear Repeater Timer Cancels existing timeout condition, clears timeout timer.
  • Page 66 RC-85 Repeater Controller Owner’s Manual User Command Enable / Disable Commands The Control Op may enable or disable the User Command level. The disable command disables all Users Commands except the Emergency Autodialer, which may be left enabled while all other User Commands are disabled. The Pad Test Disable command allows just the Touch-Tone pad test to be shut off.
  • Page 67 RC-85 Repeater Controller Owner’s Manual The Control Op Offhook command performs one of two functions. (1) When entered over the air, it activates the patch without regenerating signalling into the phone. The Control Op may then send tones directly into the phone.
  • Page 68 RC-85 Repeater Controller Owner’s Manual Reverse Patch Commands These commands allow the Control Op to enable or disable the Reverse Patch. He may also select from one of three Reverse Patch modes. Reverse Patch Enable† Enables the Reverse Patch. Reverse Patch Disable†...
  • Page 69 RC-85 Repeater Controller Owner’s Manual Alarm Enable / Disable Commands The Alarm Enable command arms the site alarm. Disabling the alarm clears an alarm condition latched into the controller and prevents further alarm activation until reenabled. Alarm Enable† Enables site alarm.
  • Page 70 RC-85 Repeater Controller Owner’s Manual Zero Hang Time Mode Enable / Disable A user transmission is normally followed by a Courtesy Tone and a programmable hang time. The hang time may be forced to zero so that the repeater transmitter directly follows the received signal. This mode can be useful for operating a ShackMaster station located at someone’s home and for...
  • Page 71 7-11 Serial Transfer Strobe 7-11 Store Macro Sets Introduction This chapter describes how the RC-85 repeater controller is remotely programmed by the repeater owner to customize many of its characteristics. The controller is programmed with Configuration commands which may be entered when the controller is unlocked.

  • Page 72: Messages

    RC-85 Repeater Controller Owner’s Manual The “unlock code” is programmed by the repeater owner and can start with any key except 5, #, or D. The remainder of the code can contain any keys except # or D. If it becomes necessary to change the unlock code for security, it may be changed whenever necessary to any ten digit code, but it must be done at the site.
  • Page 73 RC-85 Repeater Controller Owner’s Manual The additional synthesized speech vocabulary and Morse code punctuation characters are assigned two and four digit codes shown in the tables below. Message Editor Commands (see Chapter 7 - “Programming the Controller”, for details) Store Message in Memory...
  • Page 74 RC-85 Repeater Controller Owner’s Manual Speech Synthesizer Vocabulary Codes CENTER *161 ESTIMATED *212 HOME *615 A.M. *110 CHANGE *875 EVACUATE *213 HOTEL *642 ABORT *992 CHARLIE *623 EVACUATION *214 HOUR *261 ABOUT *855 CHECK *865 EXIT *761 HOURS *655 ABOVE...
  • Page 75 RC-85 Repeater Controller Owner’s Manual SEPTEMBER *398 TOUCHDOWN *458 MACHINE SEQUENCE *410 TOWER *460 MAINTAIN *312 P.M. *358 SERVICE *723 TRAFFIC *461 MANUAL *965 PAPA *671 *885 TRANSMIT *462 MARCH *313 PARTIALLY *361 SEVEN TRIM *463 MARKER *314 PASS *774...
  • Page 76 RC-85 Repeater Controller Owner’s Manual Several Message Editor commands control its operation: Store Message in Memory - When you’ve completed editing the message and it’s correct, it may be stored in the controller’s non-volatile memory by entering *0 (*0# over the phone). There will be a brief delay as it’s programming the PROM, then the controller will announce, “Write, UL”, indicating a successful...
  • Page 77 RC-85 Repeater Controller Owner’s Manual The next example is a synthesized speech message. You’ll load the Bulletin Board Message #1 with “See you at the meeting tonight. Call AXX for INFO. 73.” ENTER RESPONSE COMMENT (unlock code) Unlock the controller...

  • Page 78: Courtesy Tone Selection

    RC-85 Repeater Controller Owner’s Manual Hints: Most vocabulary words occupy one character slot. Words beginning with *1, *2, *3, *4 or *9 occupy two character slots. The Patch Dialing Prefix is not a message per se, but is the telephone dialing string that may precede all phone patches.

  • Page 79: Timers

    RC-85 Repeater Controller Owner’s Manual The ten courtesy tone sets are described below - but you really have to hear them for yourself! CT Set # Description (no tone) “Bumble Bee” “Yellow Jacket” “Shooting Star” “Comet” “Stardust” “Duncecap” “Piano Chord”...

  • Page 80: Command Code Prefixes

    RC-85 Repeater Controller Owner’s Manual Examples: Load the Patch Activity Timer with 45 seconds. While unlocked, enter “*4006 45” all as one transmission, or “*4006 45 #” over the phone. Load the Hang Timer to 3 1/2 seconds (3500 ms).

  • Page 81: Miscellaneous Selections

    RC-85 Repeater Controller Owner’s Manual Miscellaneous Selections Various controller operating modes may be selected with the following Configuration commands. Either Touch-Tone or dial-pulse (rotary) signalling into the phone may be selected for patch operation. Control Operator and Configuration control may be permitted or not permitted through the repeater receiver (may be prohibited for overall security).
  • Page 82 RC-85 Repeater Controller Owner’s Manual (Programming the Controller) 7 - 12 V3 4/87...
  • Page 83 TS-32 may interface with the repeater receiver and the RC-85 controller (it is shown for PL decode only - the encode section may be used as you wish). The active high logic output (OUT-2) may drive the controller PL logic input (J3 pin 4) with a 10K pullup resistor to +12 volts.
  • Page 84 RC-85 Repeater Controller Owner’s Manual Audio into the TS-32 Tone Input should come from a point in the receiver where sub-audible tones have not been filtered out - the proper point is receiver dependent and in some cases audio must be taken directly from the discriminator.

  • Page 85: Talking S-Meter

    As an example, the diagram below shows connection of a Spectrum Communcations SCR-200 S-meter signal output to the RC-85 controller. The meter should be disconnected and a 10K resistor placed from the signal output to ground. The signal may drive the controller directly. The resistor divides down the S-meter signal to an approximately zero to five volt range and also provides a discharge path for the emitter follower transistor in the receiver’s S-meter...

  • Page 86: Site Alarm

    Remote Control Outputs The RC-85 controller provides three open collector high voltage, high current remote control logic output functions which may be controlled by Touch-Tone commands. The remote control logic outputs may be used for such functions as high/low power select, antenna select, or control of other equipment at the repeater site.

  • Page 87: Expanded Remote Control Outputs

    IC’s required to capture the data. The FC-1 Frequency Control Board is available from ACC for this purpose. One expanded mode shifts the serial data out of two control outputs which function as a serial clock and serial data line.
  • Page 88 RC-85 Repeater Controller Owner’s Manual In the expanded modes, the User Function outputs appear at the shift register outputs, just as they appeared directly at the control outputs in the direct mode. When Control Output 3 is redefined to be the transfer signal, the Link PTT appears at UF 8 in the shifted data stream.
  • Page 89 The format of the BCD frequency data is compatible with the ACC RC-850 Repeater controller (Link 1) and the ITC-32 Intelligent Touch-Tone Control Board. Shown below is circuitry suitable for capturing the serial frequency information for interface to an ICOM IC-22U two meter transceiver as a synthesized remote base.
  • Page 90 RC-85 Repeater Controller Owner’s Manual Kenwood Interface As an alternative to supporting a BCD interface, the controller may connect directly to the serial control port of the Kenwood TS-711A or TS-811A transceivers. With the Kenwood transceivers, users may control frequency, mode, memory recall, and subaudible tone selection.

  • Page 91: Spare Audio Source

    Digital Voice Recorder ACC’s Digital Voice Recorder may interface to the RC-85 controller so that any of the remotely recordable “tracks” may be addressed through the Message Editor. Control signals are passed to the DVR through Control Output 1 as part of the serial data stream supplied at that output in the expanded remote control output mode.

  • Page 92: Sharing The Phone Line

    Phone Line Busy inputs. When a user attempts to bring up the patch, and the phone line is in use by another controller, the RC-85 controller responds by saying “Busy”. The the phone line is not in use, the patch proceeds, and the RC-85 controller pulls the busy output low to indicate to other controllers that the phone line is now in use.
  • Page 93 A block diagram of the RC-85 controller is shown below. The major functional blocks include the microcomputer, audio switching and mixing circuits, buffered I/O, speech synthesizer, tone generator, Touch-Tone decoder, and telephone interface.
  • Page 94 RC-85 Repeater Controller Owner’s Manual The speech synthesizer interfaces to the CPU through I/O ports and is controlled by the microcomputer program. The pot R40 adjustment sets the synthesizer clock frequency, setting the pitch of the voice. The tone generator creates Morse code, courtesy tone, and Touch-Tone audio under control of the computer program.
  • Page 95 No periodic maintenance is necessary to ensure long life. Simply follow common sense in installing the controller, such as avoiding locating it in extremely hot or dirty areas. You should expect your RC-85 controller to run virtually forever.
  • Page 96 RC-85 Repeater Controller Owner’s Manual GENERAL CHECKLIST • ICs firmly seated in sockets? • Cable connectors properly inserted? • +12 volt and 2 grounds connected properly? • DIP switches set correctly and firmly? • Any components hot? (careful!) • Both grounds connected?
  • Page 97 RC-85 Repeater Controller Owner’s Manual RF Interference The controller users relatively high speed digital logic which results in signals with fast edges. The logic signals contain harmonic energy throughout the HF and VHF frequency ranges. Because the controller uses CMOS with somewhat slower edges that TTL or low power Schottky logic, the harmonic energy is lower than it would be in TTL based systems.
  • Page 98 RC-85 Repeater Controller Owner’s Manual Most Often Asked Questions (and Answers) My controller acts erratically. What’s wrong? Be sure that you have connected both grounds to the power supply. The both need to get there. Check for high electrical noise at the site, such as from heavy duty motors or solenoids.
  • Page 99 RC-85 Repeater Controller Owner’s Manual I don’t measure anything on the logic outputs. Why not? The logic outputs are open collector transistors. The transistor is either on, so that there’s a path to ground, or it’s an open circuit. To see a logic voltage level, you need to add a pullup resistor to define the logic high when the transistor is off.
  • Page 100 RC-85 Repeater Controller Owner’s Manual If the Touch-Tone Access Mode is enabled but down, will a reverse patch come through? Yes. A reverse patch will bring up the TT Access Mode and load the TTAM timer. Assuming the timer is non-zero, it will time itself back down if there’s no activity.
  • Page 107 Emergency Autodial (Emergency Autodial Prefix) (Location) Reverse Patch Activate (from phone only) (Reverse Patch Command)# Reverse Patch Answer (Patch Utility Prefix) Extending the Telephone Timer (from phone only) (Telephone Timer Extend Command)# RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • A-1...
  • Page 108 (Link Prefix) 1 * Link 1 Power Interrogate (Link Prefix) 1 * 1 Link 1 High Power (Link Prefix) 1 * 0 Link 1 Low Power (Link Prefix) 7 xx CTCSS Select (00=off, 01-38=on) A-2 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 109 (6 = Special ID Message) (7 = Bulletin Board Message 1) (8 = Bulletin Board Message 2) (9 = Time of Day Announcement) (* = Firmware Revision Announcement) Unmuting Touch-Tone # (sequence) RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • A-3...
  • Page 110 (TT Access Mode Prefix) 1 [up] Spare Audio Select (Spare Audio Command) # knock down User Function (Remote Control) Output Force & Interrogate (UF Prefix) (Output #1-8) (1=on, 0=off) (UF Prefix) (Output #1-8) Interrogate A-4 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 111 Selects short timeout timer. 06 TC Clear Repeater Timer Cancels timeout condition, clears timer. 65 ZD Zero Hang Time Disable Disables zero hang time. 66 ZE Zero Hang Time Enable Enable zero hang time. RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • B-1...
  • Page 112 Autopatch / Autodial Commands 19 PE Autopatch Enable Enables Autopatch. 20 PD Autopatch Disable Disables Autopatch. 27 LE Long Distance Enable Enables Autopatch long distance. 28 LD Long Distance Disable Disables Autopatch long distance. B-2 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 113 45 XE Reverse Patch Enable Enables Reverse Patch. 46 XD Reverse Patch Disable Disables Reverse Patch. 54 R0 Reverse Patch Mode 0 Selects phone control mode. 55 R1 Reverse Patch Mode 1 Selects automatic ringout after 5 sec. RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • B-3...
  • Page 114 77 CT Select Courtesy Tone 7 Piano Chord 78 CT Select Courtesy Tone 8 Boop 79 CT Select Courtesy Tone 9 Beep Initialize Command 18 - - Reset Initializes controller, loads Macro Set 1. B-4 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 115 *2010(pitch) Morse Code Pitch pitch=0-3000 Hz *2020(pitch) Cover Tone Pitch pitch=0-3000 Hz Courtesy Tone Selection *3001(ct) CT SEL Logic High Tone ct = 0-9 *3002(ct) Link Tone ct = 0-9 RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • C-1...
  • Page 116 Demo / Bulletin Board *5008(command) Reverse Patch (from phone only) *5009(command) Spare Audio *5010(prefix) Patch Utilities *5011(command) Patch Hangup *5012(prefix) Two-Tone Paging *5013(prefix) Touch-Tone Access Mode Up/Down CMD *5014(command) S-Meter Readback C-2 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 117 DTMF - 4 or 6 digits (0-9, *, A, B, C), fill unused digits with D keys 5/6 tone - wakeup tone, tones 1-5 (six digits) [for no wakeup tone, insert * as first digit] RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • C-3...
  • Page 118 *167 AUTOMATIC *741 COMPLETE *721 AUTOPILOT *136 COMPUTER *927 AUXILIARY *137 CONDITION *168 CONGRATULATIONS *170 BAND *138 CONNECT *940 BANK *140 CONTACT *171 BASE *141 CONTROL *624 BATTERY *142 CONVERGING *172 C-4 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 119 *804 FOURTEEN† *814 EIGHTEEN† *884 FOURTH *234 ELECTRICIAN *943 ELEVATION *196 FOXTROT *633 FREEDOM *235 ELEVEN ELEVEN† *811 FREEZING *236 EMERGENCY *937 FREQUENCY *610 FRIDAY *237 ENGINE *198 FROM ENTER *955 RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • C-5...
  • Page 120 HOUR *261 LAUNCH *291 HOURS *655 LEAN *292 LEFT *770 HUNDRED *640 *293 LESS THAN *294 *262 LEVEL *295 ICING *263 LIGHT *934 LIMA *653 IDENTIFY *264 LINE *942 IGNITE *266 C-6 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 121 *663 MODERATE *326 OTHER *353 *740 MONDAY *327 OUTER *355 MONTH *328 MORE THAN *330 OVER *773 OVERCAST *356 MORNING† *841 MOTOR *972 MOVE *973 P.M. *358 MUCH *332 PAPA *671 RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • C-7...
  • Page 122 *377 SIGHT *418 RECEIVE *378 SIX† *806 *744 RELEASE *381 SIXTEEN† *864 SLEET *423 REMARK *382 REMOTE *910 SLOPE *424 REPAIR *745 SLOW *983 SMOKE *795 REPEAT *982 SNOW *425 REPEATER C-8 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 123 *471 THIRTEEN† *813 THIRTY† *830 THIS *451 VALLEY *986 THIS IS VALVE *941 THOUSAND *644 VARIABLE *473 THREE VERIFY *475 THREE† *803 VICTOR *683 THUNDERSTORMS*452 VISIBILITY *476 THURSDAY *453 VOLTS *750 RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • C-9...
  • Page 124 *803 CROWD *892 FOUR† *804 EXPLOSION *891 FIVE† *805 LASER *873 SIX† *806 PHASER *882 SEVEN† *807 *860 EIGHT† *808 *870 NINE† *809 TRAIN *883 TEN† *810 WHISTLE *881 ELEVEN† *811 C-10 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 125 DAY OF WEEK *871 JANUARY *282 FEBRUARY *218 MARCH *313 APRIL *131 *315 JUNE *284 JULY *283 AUGUST *135 SEPTEMBER *398 OCTOBER *346 NOVEMBER *662 DECEMBER *181 COLORS GREEN *762 *744 YELLOW *794 RC-85/96 REPEATER CONTROLLER OWNER’S MANUAL - V5 • C-11...
  • Page 126 Appendix C: Programming Commands C-12 • RC-85 REPEATER CONTROLLER OWNER’S MANUAL - V5...
  • Page 127 RC-85 Repeater Controller Owner’s Manual Appendix II Layout, Connectors, Switches and Adjustments (Layout, Connectors, etc.) II - 1 V3 4/87...
  • Page 128 RC-85 Repeater Controller Owner’s Manual (Layout, Connectors, etc.) II - 2 V3 4/87...
  • Page 129 RC-85 Repeater Controller Owner’s Manual (Layout, Connectors, etc.) II - 3 V3 4/87...
  • Page 130 RC-85 Repeater Controller Owner’s Manual (Layout, Connectors, etc.) II - 4 V3 4/87...
  • Page 131 RC-85 Repeater Controller Owner’s Manual Appendix III Telephone Access Paging for RCC Applications A modified “reverse patch” mode is available for special applications where two- tone signalling notifies the mobile station that an incoming call is waiting. The mode is selected by turning on DIP switch 7, which overrides the Reverse Patch mode selected by Control Operator commands.
  • Page 132 RC-85 Repeater Controller Owner’s Manual (Telephone Access Paging) III - 2 V3 4/87...
  • Page 133 RC-85 Repeater Controller Owner’s Manual Appendix IV Schematic (Schematic) IV - 1 V3 4/87...
  • Page 136 RC-85 Repeater Controller Owner’s Manual (Schematic) IV - 4 V3 4/87...
  • Page 137 RC-85 Repeater Controller Owner’s Manual Appendix V Audio Delay Board Kit Description The AD-2 audio delay board delays the repeater receiver audio by 75 ms before reaching the repeater (and remote base) transmitter. The delay gives the ‘85 audio circuitry an opportunity to fully mute Touch-Tone (instead of passing “blips”) and to fully mute squelch tails less than 75 ms in duration.
  • Page 138 - anode of CR1 and CR2 (farthest from the heat sink) Mount the board back into the cabinet. 5. Remove IC U4 (4053B) from the RC-85 board, and plug it into U5 of the AD-2 board. Be sure to plug it in so that pin 1 is oriented properly.
  • Page 139 RC-85 Repeater Controller Owner’s Manual (Audio Delay Board) V - 3 V4 11/89...
  • Page 141 RC-85 Repeater Controller Owner’s Manual Glossary abort Message Editor command to terminate editing session without writing message. activity timer Patch timer which resets at start and end of each transmission. Anxious ID ID attempted between user transmissions because it’s getting late in the ID cycle.
  • Page 142 User definable hangup code which prevents malicious hangup of patch by jammer. Digital Voice Recorder ACC product which allows remote recording of voice messages with solid-state storage. DIP switch Dual-inline-package switch. Switch array on controller board which allows selection of certain options.
  • Page 143 RC-85 Repeater Controller Owner’s Manual link Hard wired connection to another repeater or to transceiver. lock User Loadable Autodialer state which prohibits entry or erasing of phone numbers. Also state of controller where Configuration command may not be entered. low true Logic output where low state indicates active function.
  • Page 144 RC-85 Repeater Controller Owner’s Manual regenerated Touch-Tone Touch-Tone audio synthesized by the controller into the phone line for improved patch reliability. remote base Remotely controller Amateur radio station. Generally tied to repeater to allow shared access. remote programming The ability to remotely change various characteristics of the controller.
  • Page 145 RC-85 Repeater Controller Owner’s Manual unlock State of User Loadable Autodialer which permits entry and erasure of telephone numbers from memory. Also the state of the controller when Configuration commands are accepted. unlock code Touch-Tone command sequence which places the controller in the state where Configuration commands are accepted.
  • Page 146 RC-85 Repeater Controller Owner’s Manual (Glossary) Glossary - 6 V3 4/87...
  • Page 147 RC-85 Repeater Controller Owner’s Manual Index access 3-3, 5-15, 6-3 custom hangup 5-4 adjustments 2-6, Appendix II demo messages 5-12, 7-10 alarm Digital Voice Recorder 7-8, 8-9 interface 8-4 DIP switch commands 6-7 see “Switches” message 7-8 D-key 4-4 audio...
  • Page 148 RC-85 Repeater Controller Owner’s Manual noise filtering 3-6 tail messages pad test 5-2 commands 6-6 paging tones 5-14 operation 3-5, 6-6 patch programming 3-5, 7-7 activity timer 5-3, 6-4, 7-9 selection 3-5, 6-6 custom hangup code 5-4 timing 3-4 3-5...
