S&C Loadbuster Instruction Sheet page 23

Retaining screw and set screw
End cap
Guide bearing
Tube cover Chassis
Trigger assembly

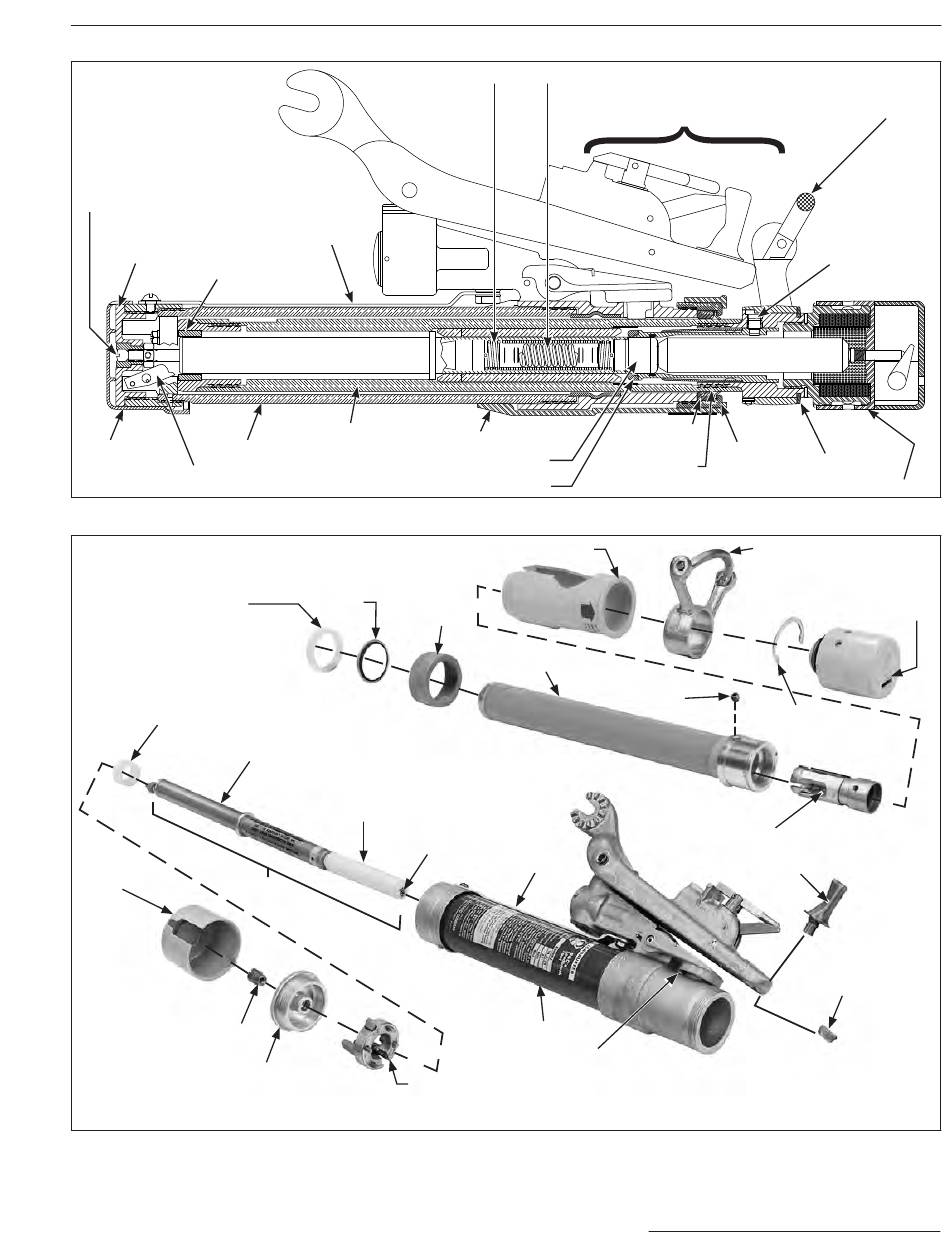

Figure 50. Cross-section view of the Loadbuster Loadbreak Tool.
Bearing
Guide bearing
Contact tube
Moving
Tube cover
contact
Retaining screw
and set screw
Figure 51. Exploded view of the Loadbuster Loadbreak Tool.
Note: Loadbuster Tools with a red dot on the trailer (manufactured prior to July 2002) can be operated 500 to 1,000 times before inspection
and maintenance are required . Tools with a blue dot on the trailer (manufactured during or after July 2002) can be operated 1,500 to 2,000
times before inspection and maintenance are required .
Shunt strap
Inner tube assembly
Moving contact assembly
Stationary contact assembly
Inner tube
Bearing
seal
retainer
Trailer
Red or blue dot
(see Note)
assembly
End cap
Trigger assembly
Assembling the Loadbuster Loadbreak Tool
Spring Cable
Hook frame attachment
assembly
Chassis cover
Inner tube seal
Chassis cover
Inner tube
assembly
Socket-head
set screw
Shunt strap
Chassis
Resetting latch
Anchor assembly
Bearing
Bearing
Retaining ring
retainer
Silencer—with non-resettable operation counter
Anchor assembly
Retaining ring
Stationary contact
assembly
Pull-ring hook
★
Part of hook frame attachment.
S&C Instruction Sheet 811-510
Socket-head
set screw
Silencer—with
non-resettable
operation counter
★
Locknut
