S&C Loadbuster Instruction Sheet page 21

Step 41
Reposition the end cap, and use the retaining screw and set
screw to secure it to the moving contact assembly. Tighten
the set screw last. See Figure 46.
Step 42
Apply a light coating of petroleum jelly to the threads of
the end cap. Screw the end cap firmly into the chassis. See
Figure 47.
Step 43
Install the tube cover. See Figure 48.
Assembling the Loadbuster Loadbreak Tool
Retaining
screw and
set screw
End cap

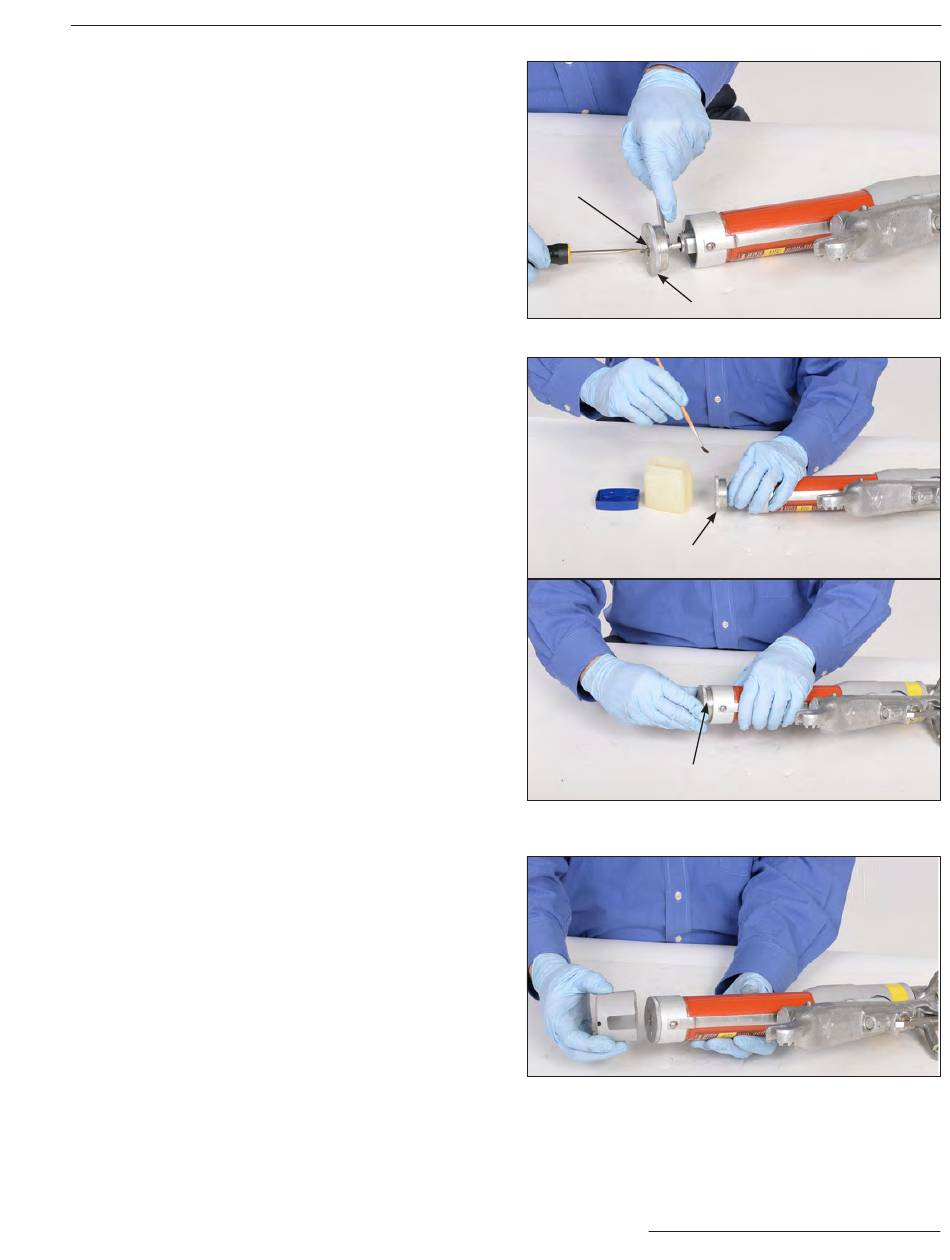

Figure 46. Install the end cap.
Figure 47. Lubricate the threads of the end cap, and screw the
end cap into the chassis.
Figure 48. Install the tube cover.
