S&C Loadbuster Instruction Sheet page 17

Step 27
Insert the inner tube assembly into the chassis, lifting the
resetting latch to provide clearance for the inner tube. See
Figure 32.
Step 28
Thread the bearing retainer firmly onto the chassis. See
Figure 33.
Step 29
Reinstall the chassis cover. See Figure 34.
Step 30
Extend the inner tube assembly approximately two inches
(51 mm). See Figure 35.
Assembling the Loadbuster Loadbreak Tool
Inner tube assembly

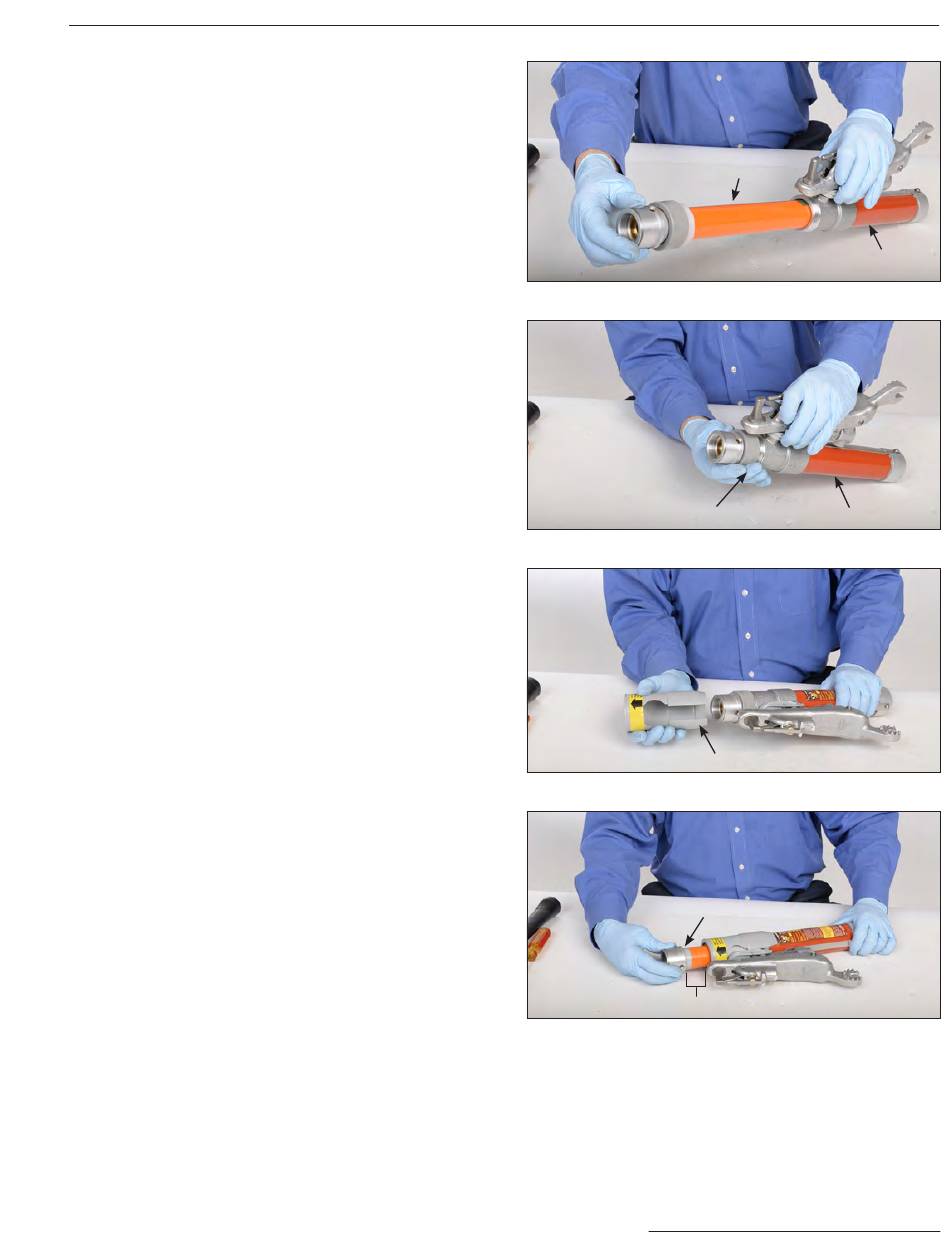

Figure 32. Insert the inner tube assembly into the chassis.
Bearing retainer
Figure 33. Thread the bearing retainer onto the chassis.
Figure 34. Install the chassis cover.
2 inches
Figure 35. Extend the inner tube assembly.
S&C Instruction Sheet 811-510
Chassis
Chassis cover
Inner tube assembly
Chassis
