Assembling the Loadbuster Loadbreak Tool
Step 38
Apply a light coating of DC-MOLY-GN paste lubricant to the
latching area of the trigger only. See Figure 43.
Step 39
Insert the trigger into the inner tube assembly. Use a
screwdriver to depress the trigger latch and extend the
moving contact assembly through the trigger assembly.
See Figure 44.
Step 40
Rotate the anchor assembly as required to center the
anchor with the pull-ring hook. Using 4 new screws, attach
the trigger assembly to the inner tube assembly, aligning
the guide pin on the trigger assembly with the slot in the
chassis. See Figure 45.
20
S&C Instruction Sheet 811-510

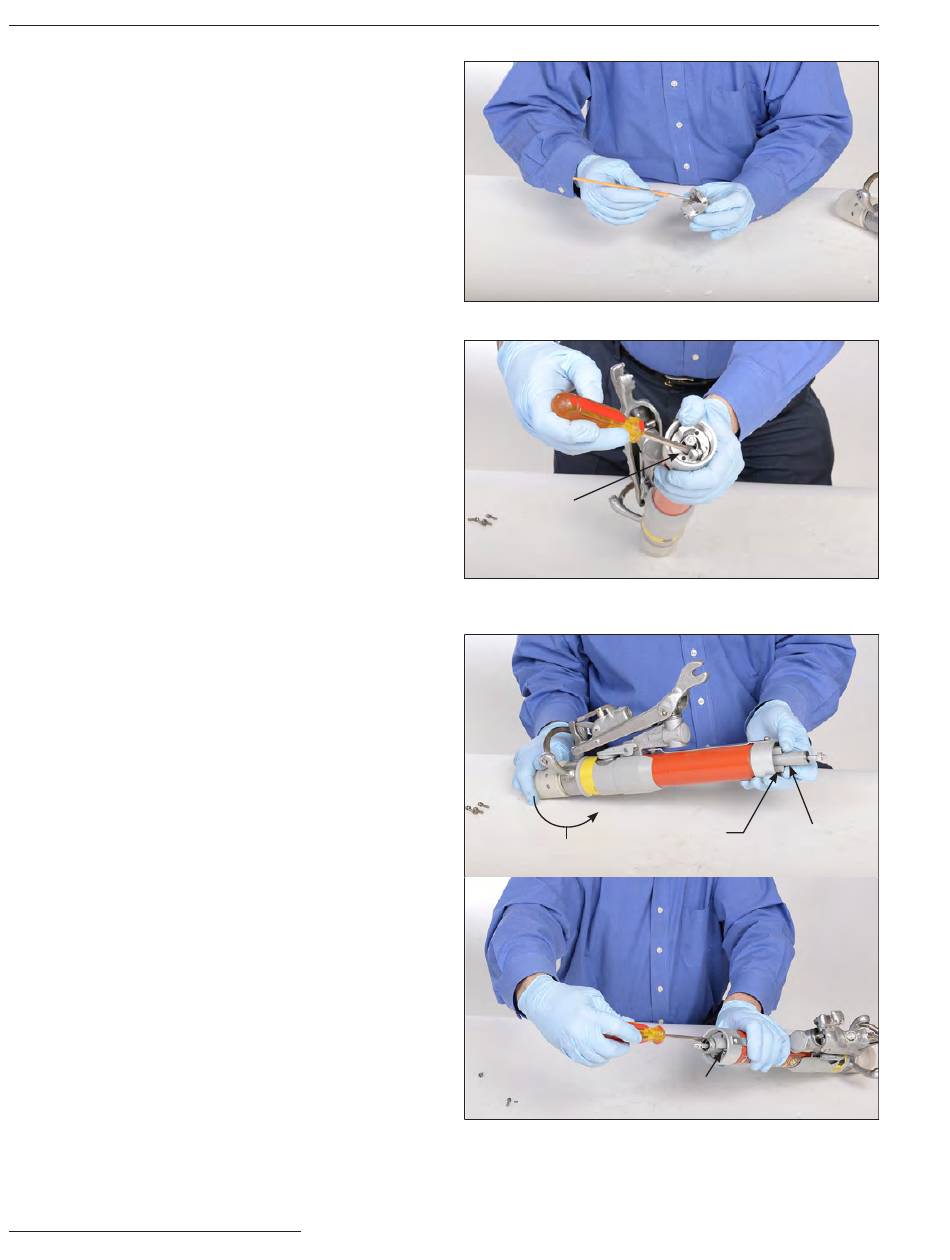

Figure 43. Apply lubricant to the latching area of the trigger.
Trigger
assembly
Figure 44. Insert the trigger into the inner tube assembly.
Depress the trigger to extend the moving contact assembly.
Rotate anchor
to center
Trigger assembly
(4) screws
Figure 45. With the moving contact extended, turn the anchor
to align the holes in the trigger with the holes in the inner
tube assembly. Attach the trigger assembly to the inner tube
assembly.
Trigger Moving contact
assembly
