Zephyr Glide EGL-E30AS Use, Care And Installation Manual page 11

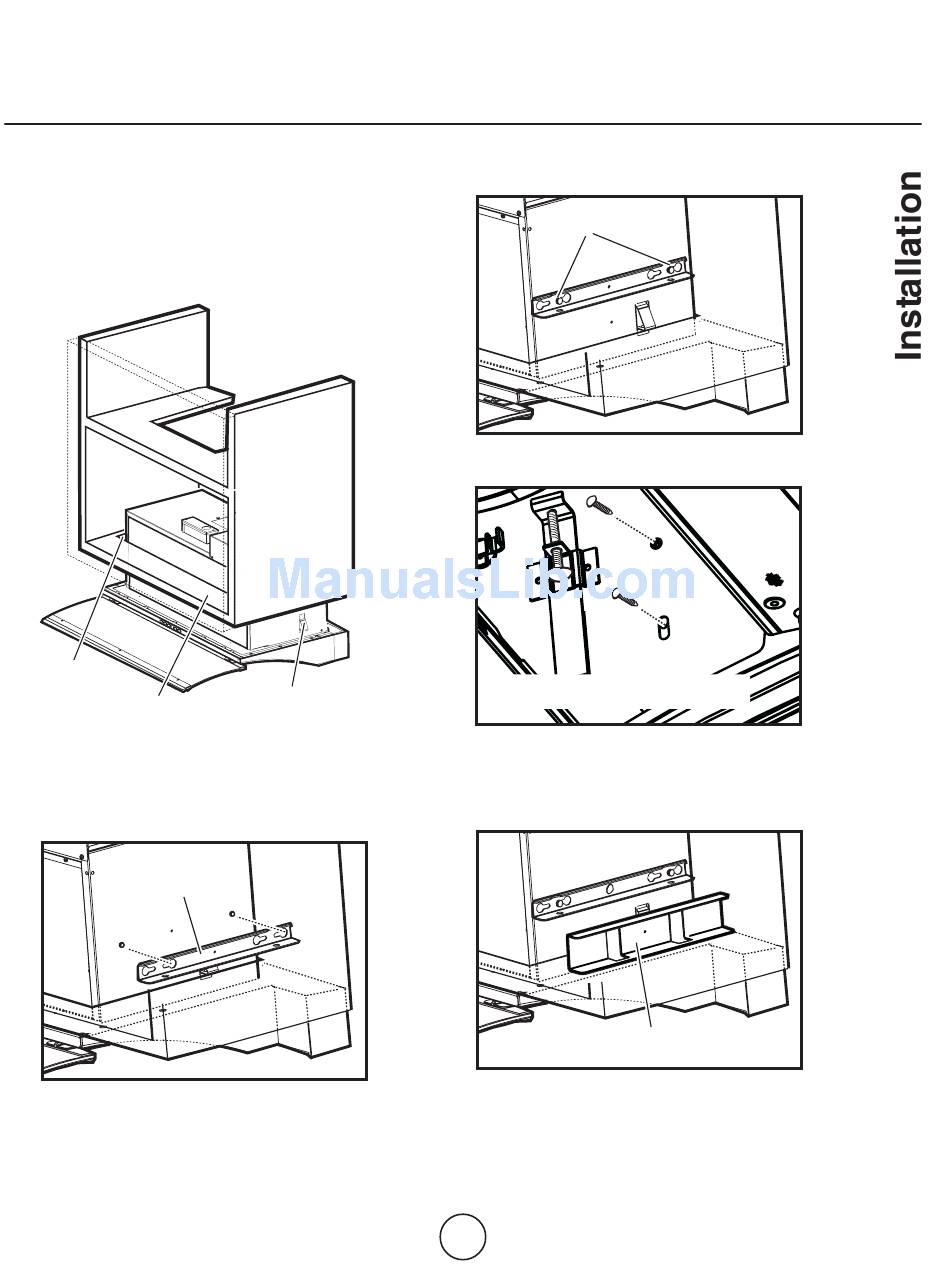

8. Fit the blower unit housing inside the cabinet
through the bottom opening.
Check that fixing springs goes over the bottom
panel..
Bottom
opening
Bottom
panel
9. Apply two brackets (one per side) to the blower unit
housing.........
Upper bracket
....... lock in place (check that each bracket , once in
position, is flush to the front side of the blower unit
housing) tighten the side fixing screws (two per
brackets) and, from the inside of the hood, fix with
one screw each then .......
Fixing
springs
Side fixing screws
Upper + lower bracket
definitive fixing screws
.......apply the two bigger brackets (lower brackets)
under the first two and....
Lower bracket
