1. If possible, disconnect and move freestanding or
slide-in range from cabinet opening to provide
easier access to rear wall. Otherwise put a thick,
protective covering over countertop, cooktop or
range to protect from damage or dirt. Select a flat
surface for assembling the unit. Cover that surface
with a protective covering and place all canopy hood
parts and hardware in it.
2. Remove the metal filter (see paragraph "Mainte-
nance") top access the inside of the range hood.
3. Perform any necessary cutout on cabinet and wall
as per "Dimensions and clearances" paragraph for
range hood mounting and for vent system and
conduit passage.

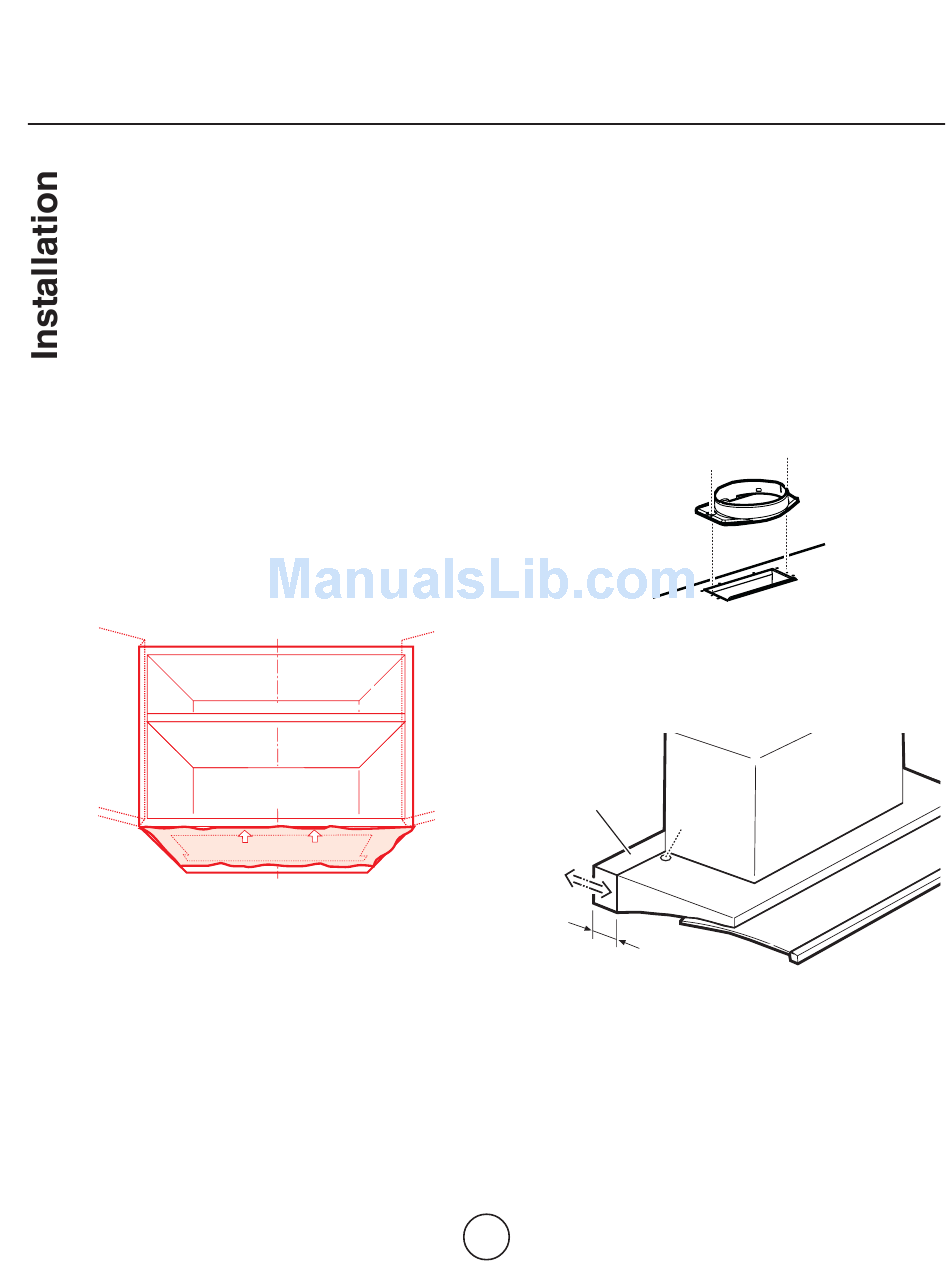

Use the supplied template to perform the cut out on
cabinet.
Tape the template on the bottom of the cabinet,
check that printed arrows match with the front edge
of the cabinet (without considering the cabinet
door).
Cut as indicated.
4. Install the vent system before the range hood. See
„Venting methods" and „Dimensions and clear-
ance" paragraphs.
Note - for Ductless - recirculating - installations:
Purchase the Ductless recirculating kit
Cabinet without ceiling:
Vent system is not required.
Cabinet with ceiling:
A 6" section of duct may be required to connect
transition to deflector.
5. Install a conduit long enough to reach the junction
box.
Run wires through hole according the National
Electrical Code or CSA Standards and local
codes and ordinances.
There must be enough power supply cable
from the fused disconnect (or circuit breaker)
box to make the connection in the hood's
Junction box/es.
Use caulking to seal all openings on wall.
Do Not turn on power until installation is
completed.
6. Fit the transition on top of the hood.
7. Regulate the rear spacer to cover the clearance
on the rear side once the hood has been
installed (see also paragraph "Dimensions
and clearances") and fix it with two screws (one
per side).
Spacer
A
see Dimensions
and Clearances
10
Spacer
fixing
screw
